UNI-T UTI260B UTI260A Thermal Camera 256X192 Pixels Construction Thermal Imager PCB Circuit Floor Heating Tube Testing

UTi260B UTI260A тепловизор

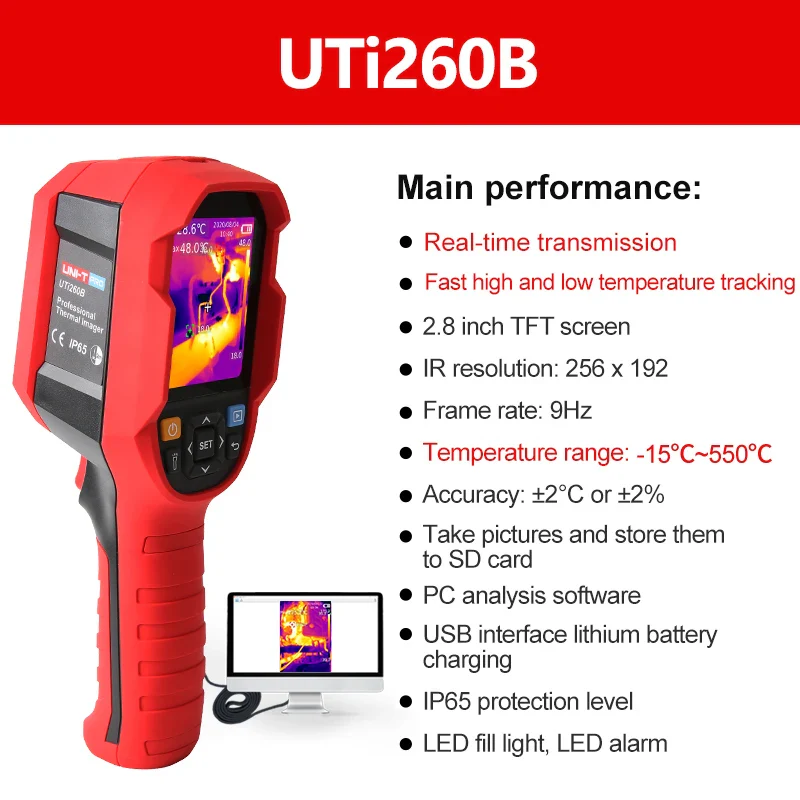

It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.

Technical Parameter

1.Temperature measurement range: -15℃ ~ 550℃/(5℉~1022℉)
2.Temperature measurement accuracy; ±2℃/±2% whichever is greater
3.IR resolution: 256 x 192 (49152)
4.Visible light lens: 640 x 480(Only UTI260B)
5.Image mode: thermal, thermal fusion, picture-in-picture, visible light
6.Seven color palettes: white hot, black hot, iron red, lava, rainbow, high contrast rainbow, red hot
7.In addition to the center point, 3 temperature measurement points can be customized, including center point temperature measurement, high and low temperature tracking and key area temperature measurement (ROI)
8.PC analysis software, real-time image transmission
9.LED fill light, LED alarm

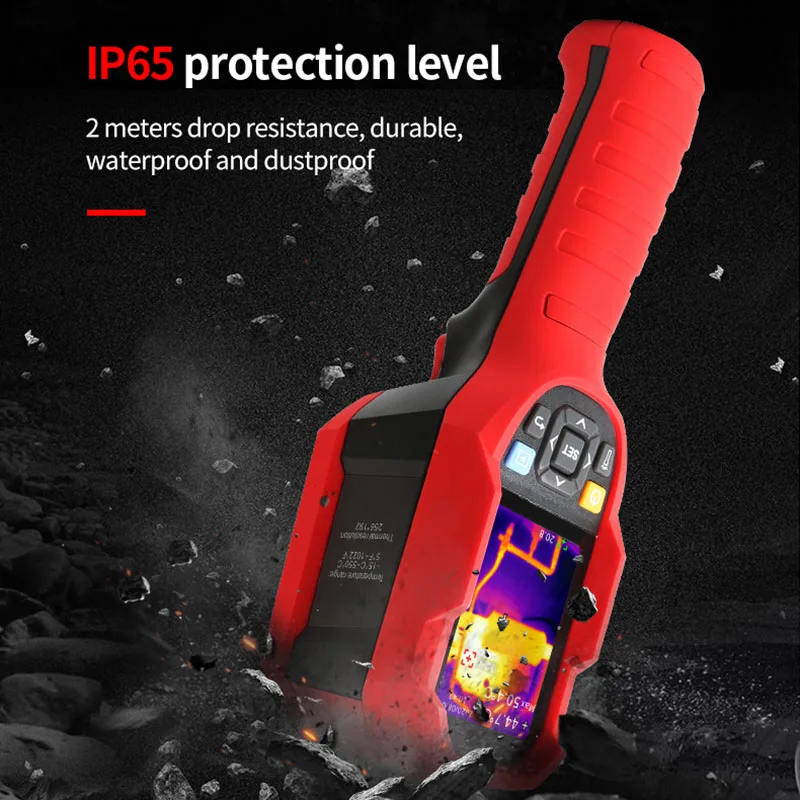

10.IP65 protection level, 2-meter drop test
