Original: $88.99
-70%$88.99
$26.70The Story
Highlights
✦ Oscilloscope Mode: Dual-channel handheld oscilloscope with 10 MHz bandwidth, 50 MSa/s sampling rate, 32 kb record depth, automatic measurement, max voltage of 400 V, vertical sensitivity 200 mv/div-10 v/div, and waveform storage/export.
✦ Multimeter Mode: 4-digit 10,000 Counts. AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-99.99 MΩ, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists.
✦ Signal Generator: The maximum waveform output frequency can reach 2 MHz and a step of 1 Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC.
✦ Save Function: One-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.

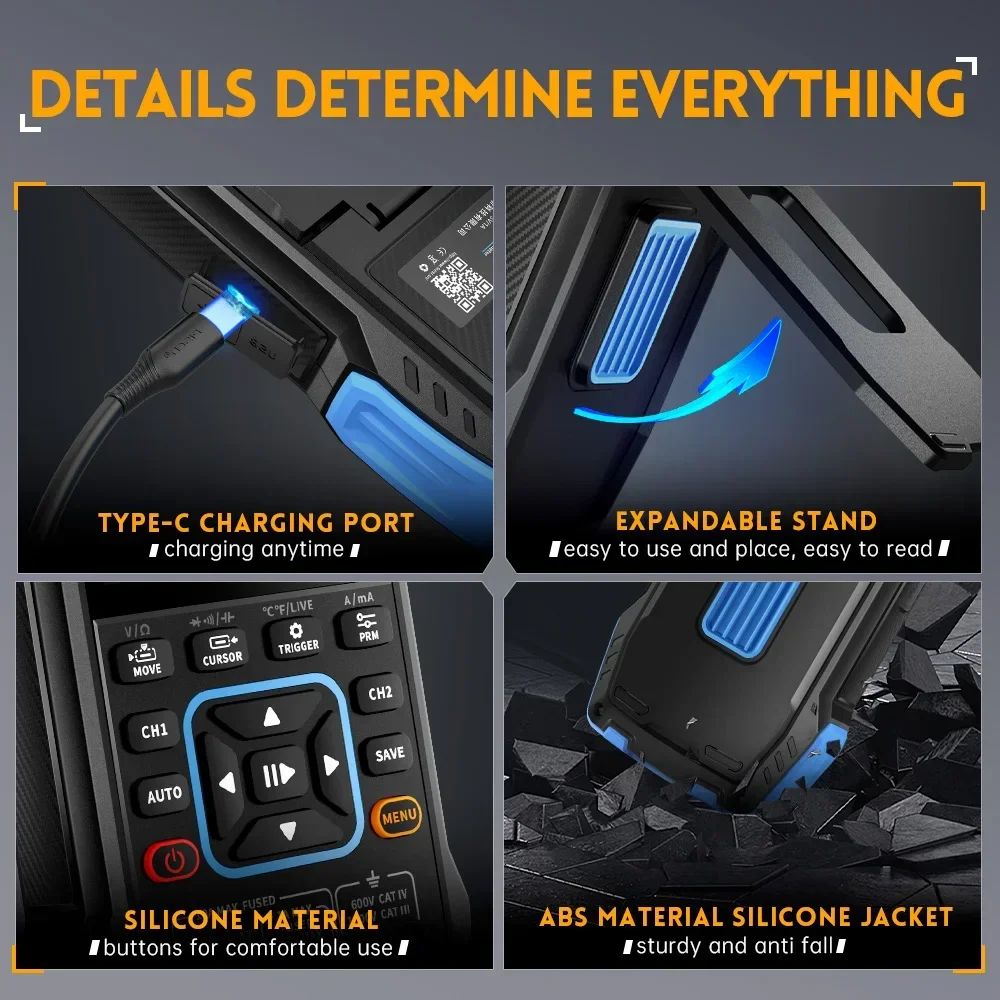

✦ Excellent Design: The Oscilloscope adopts FPGA + MCU + ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000mAh Li-ion battery, standby time up to 6H, Type-C interface supports 5V/1A charging.
Product Description
FNIRSI-2C23T is a fully functional, highly practical, three in one dual channel digital oscilloscope designed for the maintenance industry and development industry launched by FNIRSI.
This device is equipped with three main functions of oscilloscope, multimeter, and signal generator.

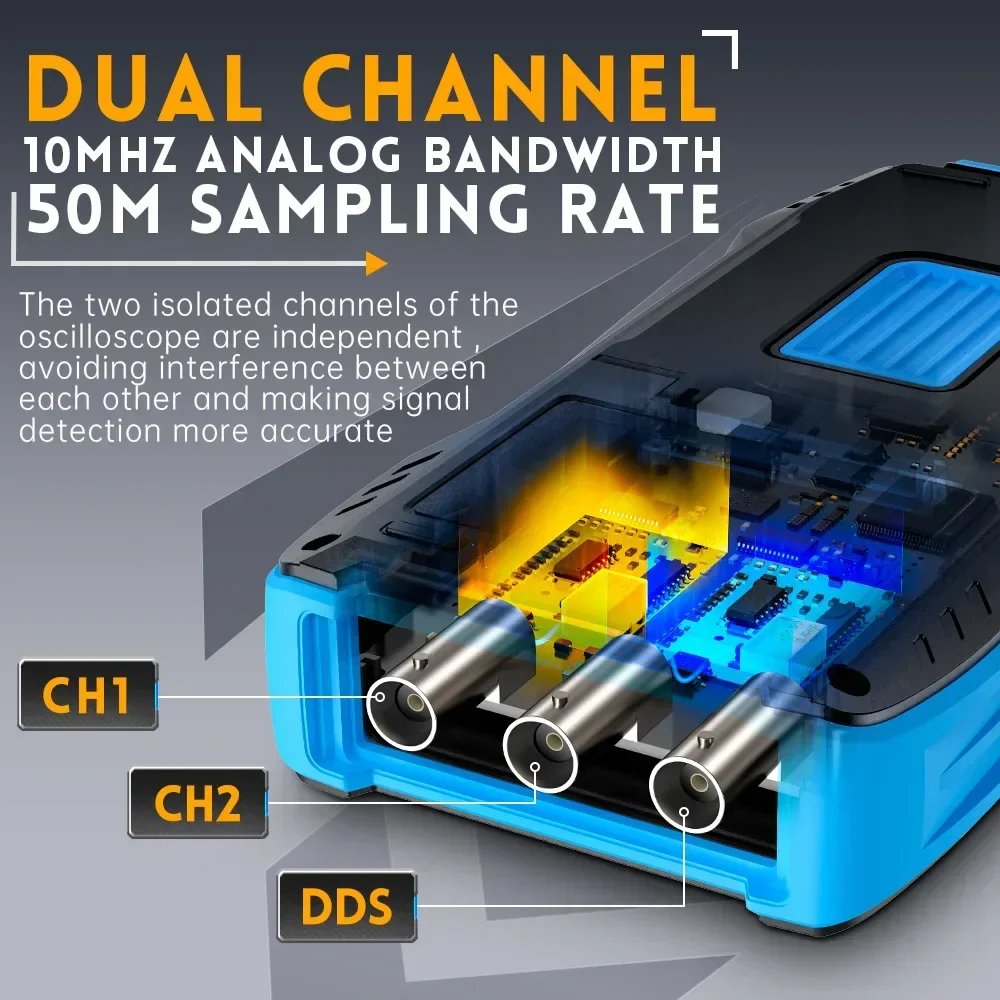

The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V;
Support for saving and viewing waveform screenshots for analysis .The multimeter has a 4-digit 10000 point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off and other measurement functions.
Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument.
Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.

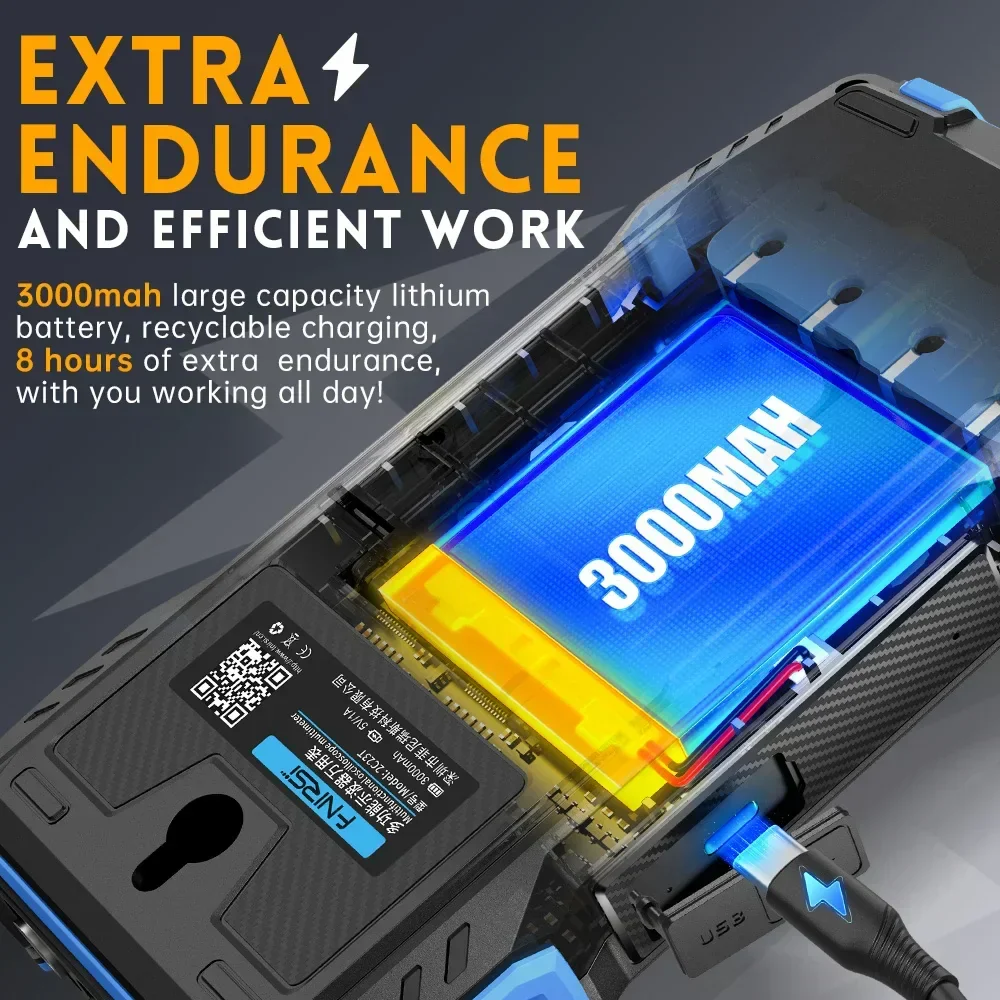

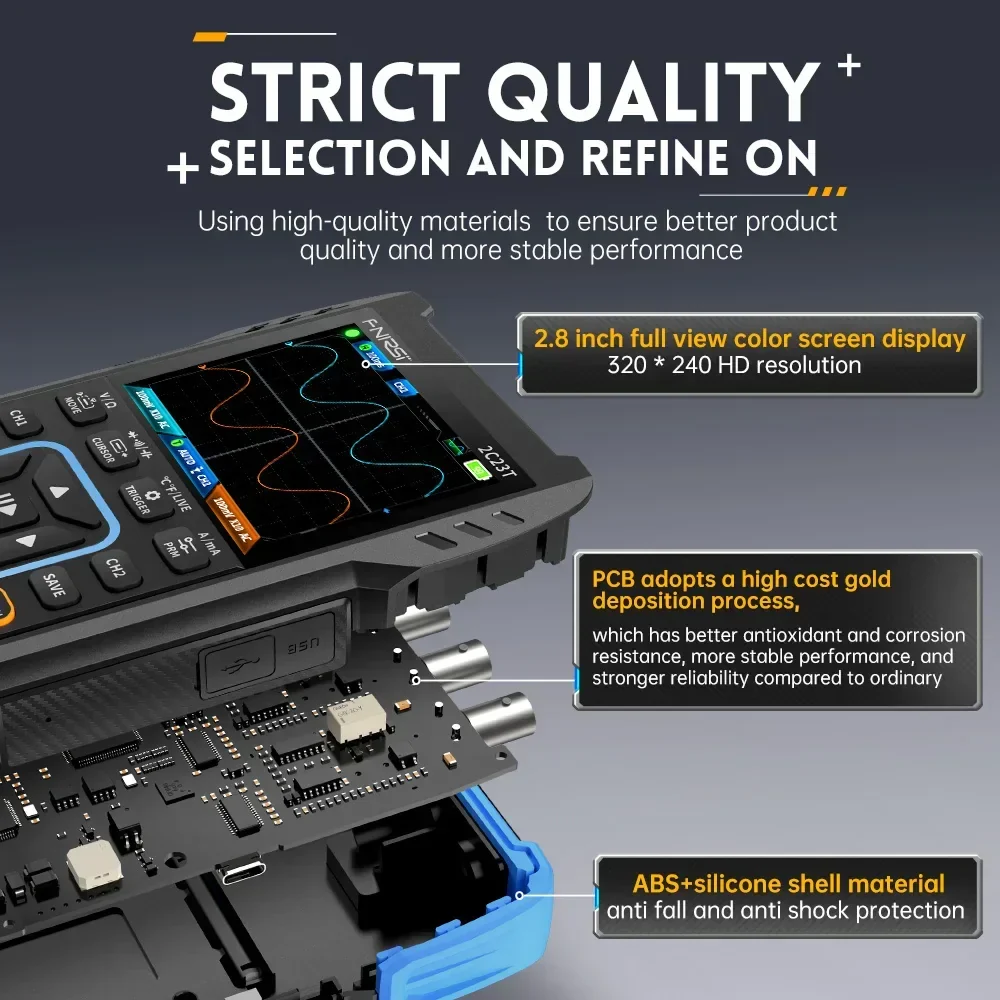

Using a 2.8 inch 320 * 240 resolution high-definition LCD display screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6H. Provide users with more and stronger practical functions in a compact size, while also having good portability.
Product Parameters
Oscilloscope
Oscilloscope
Channel：Dual channel
Sample rate：50M
Analog bandwidth：10M(dual channel independent 10M)
Storage depth：32kb
Impedance：1MΩ
Time Base Range：50ns-10s
Vertical sensitivity：20mV/div-10V/div（X1）
Maximum measured voltage：±400V
Trigger mode：AUTO/Normal/Single
Trigger type：Rising edge, Falling edge
Display mode：YT/Scroll
Coupling method：AC/DC
Save waveform screenshot：Yes
Export waveform images：Yes
Multimeter
DC Voltage：9.999V~999.9V
AC voltage：9.999V~750.0V
DC current：9999uA~9.999A
AC current：9999uA~9.999A
Resistance：999.9Ω~99.99MΩ
Capacitance：9.999nF 99.99mF
Temperature：(-55~1300℃)/(-67~2372℉)
Diode：Yes
Continuity test：Yes
Live line detection：Yes
Function Signal Generator
Channel：Single channel
Frequency：1Hz-2MHz
Amplitude：0.1-3.3V
Product Parameters

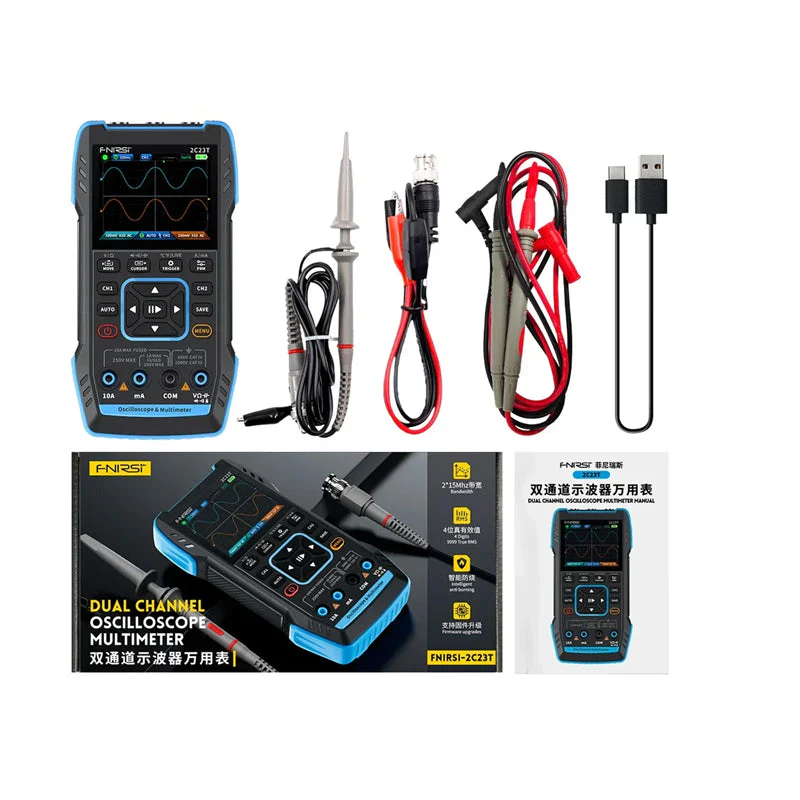

2C23T
2C23T *1
P6100 Probe *1
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1

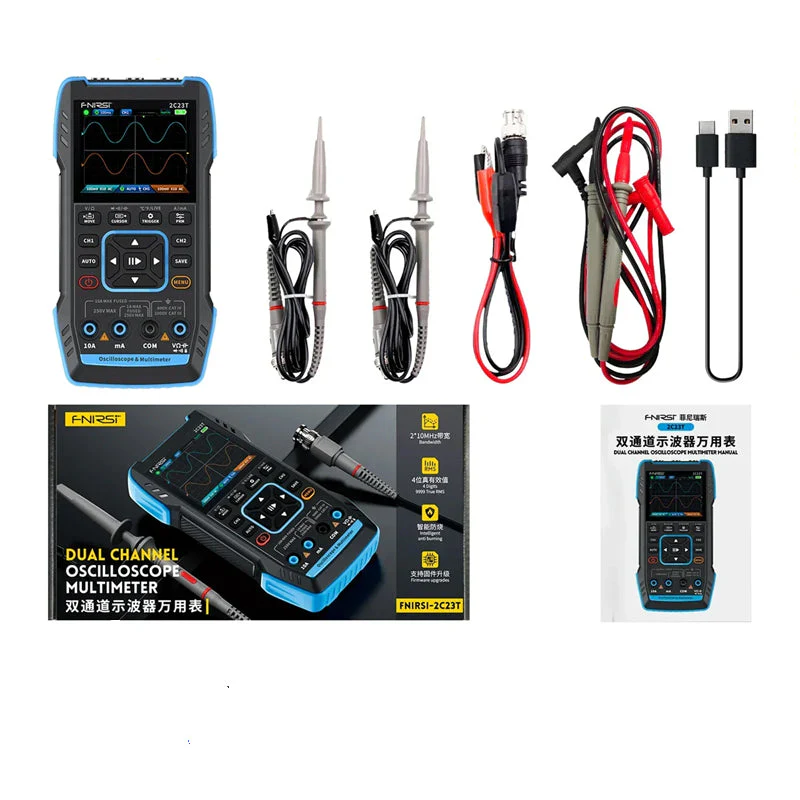

2C23T Option
2C23T *1
P6100 Probe *2
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
