TOOLTOP ET853C 70Mhz 2CH Portable Digital Oscilloscope 20000 Counts Digital Multimeter Signal Generator 3in1 Car Repair Tools

Feature:

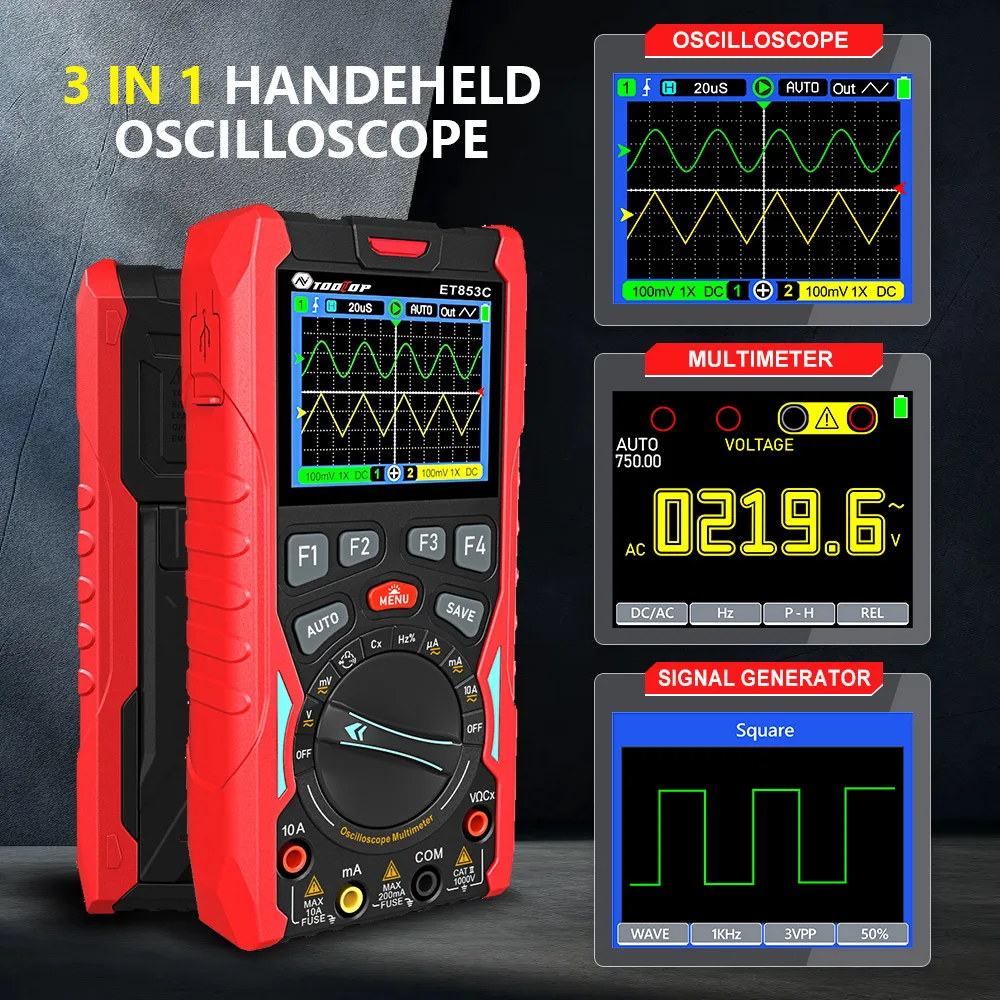

Dual-channel Oscilloscope + Multimeter + Signal Generator 3-in-1



70MHz analog bandwidth with 200Msps high-speed sampling rate



20,000-count true RMS multimeter, AC DC current, AC DC voltage, resistance, capacitance, diode, buzzer, Duty Cycle, frequency

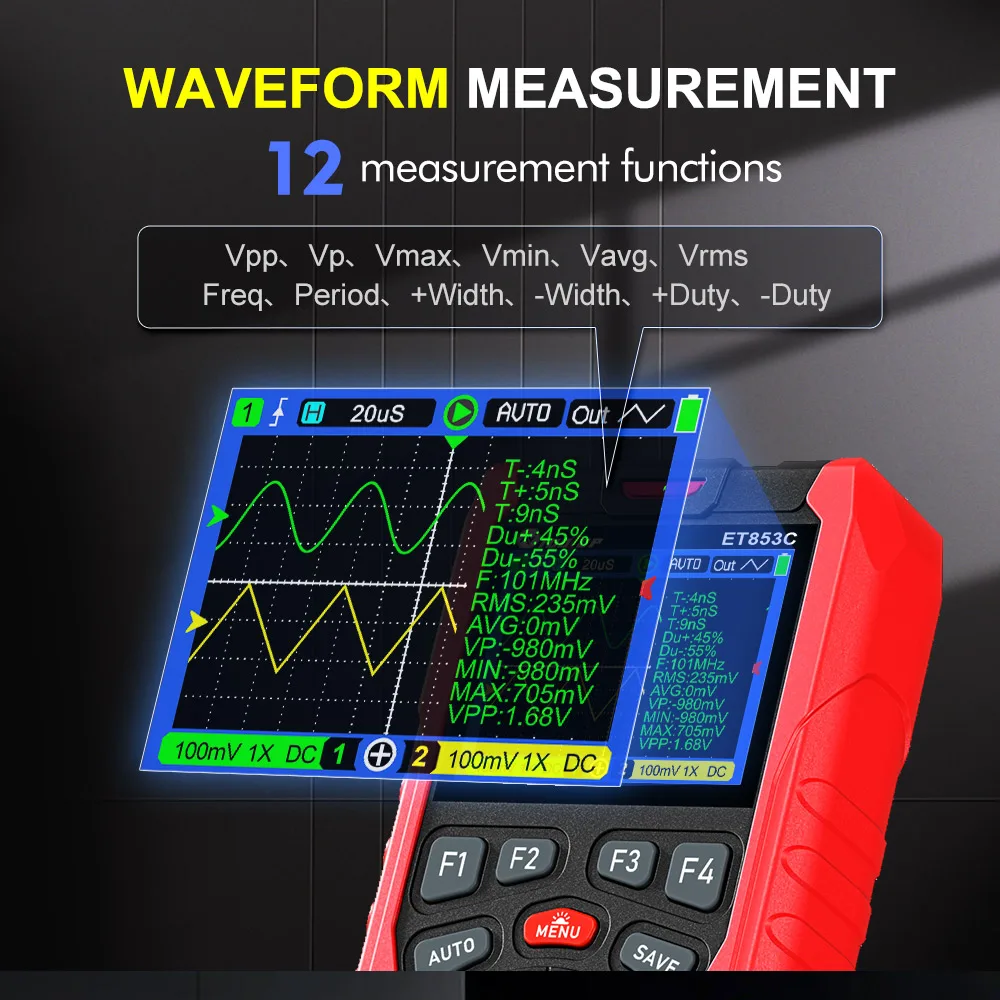

12 Waveform Parameter Measurement：Vpp, Vp, Vmax, Vmin, Vavg, Vrms，Freq, Period, +Width, -Width, +Duty, -Duty



Support square wave, sine, triangle wave signal outputs and output amplitude adjustable.



Built-in rechargeable 18650 battery 2000mAh, detachable design for easy battery replacement, battery life of about 4 hours

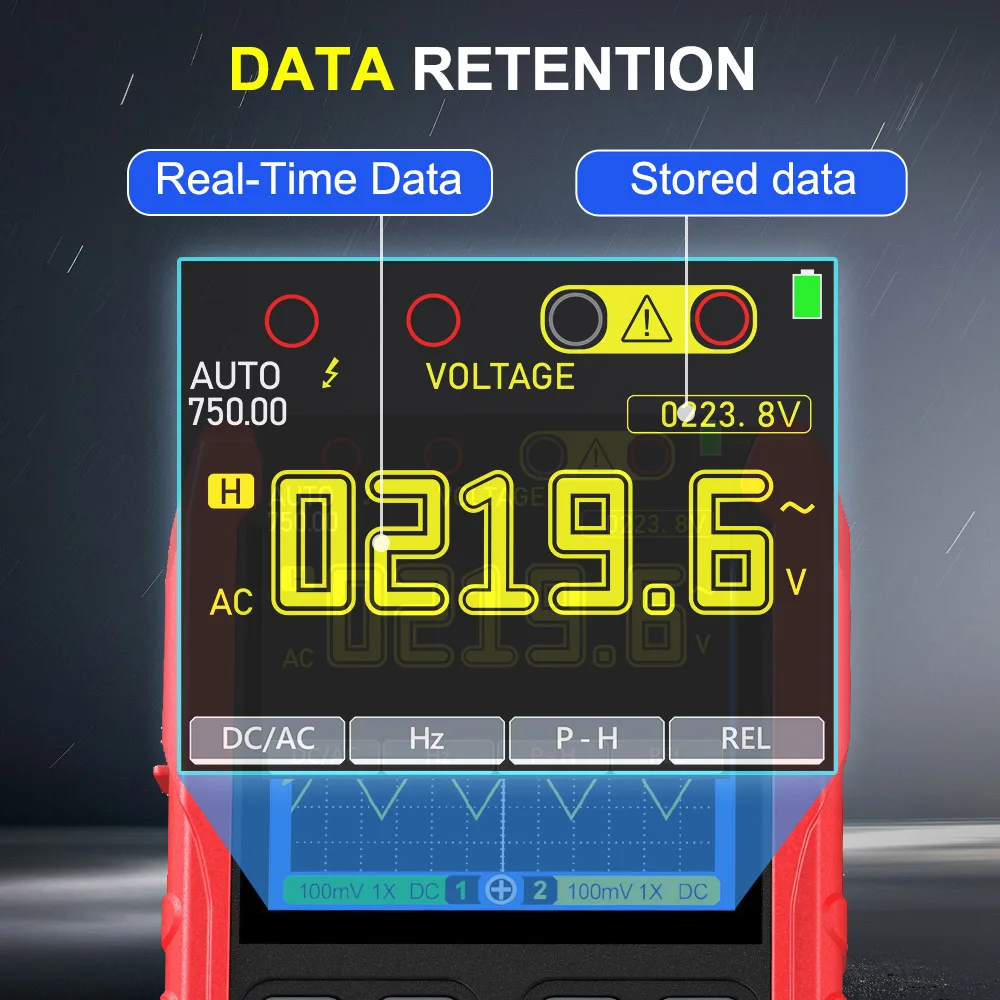

Can store 1000 sets of multimeter data and 200 sets of waveform signals



Intelligent anti-burn, overload protection with dual fuses (200mA/10A）for enhanced instrument safety

General Characteristics

Display: 320x240 TFT color screen

Backlight Brightness: Adjustable

Battery: 18650 lithium battery

Continuous Use Time: Approx. 4 hours

Charging Standard: 5 V

Charging Port: Type-C

Input Impedance:10MΩ

Auto Sleep:5-60 minutes or disabled

Storage Capacity:1000 DMM records, 200 0sCwaveform records

Storage Conditions:-10℃~+60℃;<90%RH

Operating Environment: 0℃~+40℃;<75%RH

Dimensions: 83 mm x 160 mm x 32mm

Weight: About 220g



Oscilloscope Specifications

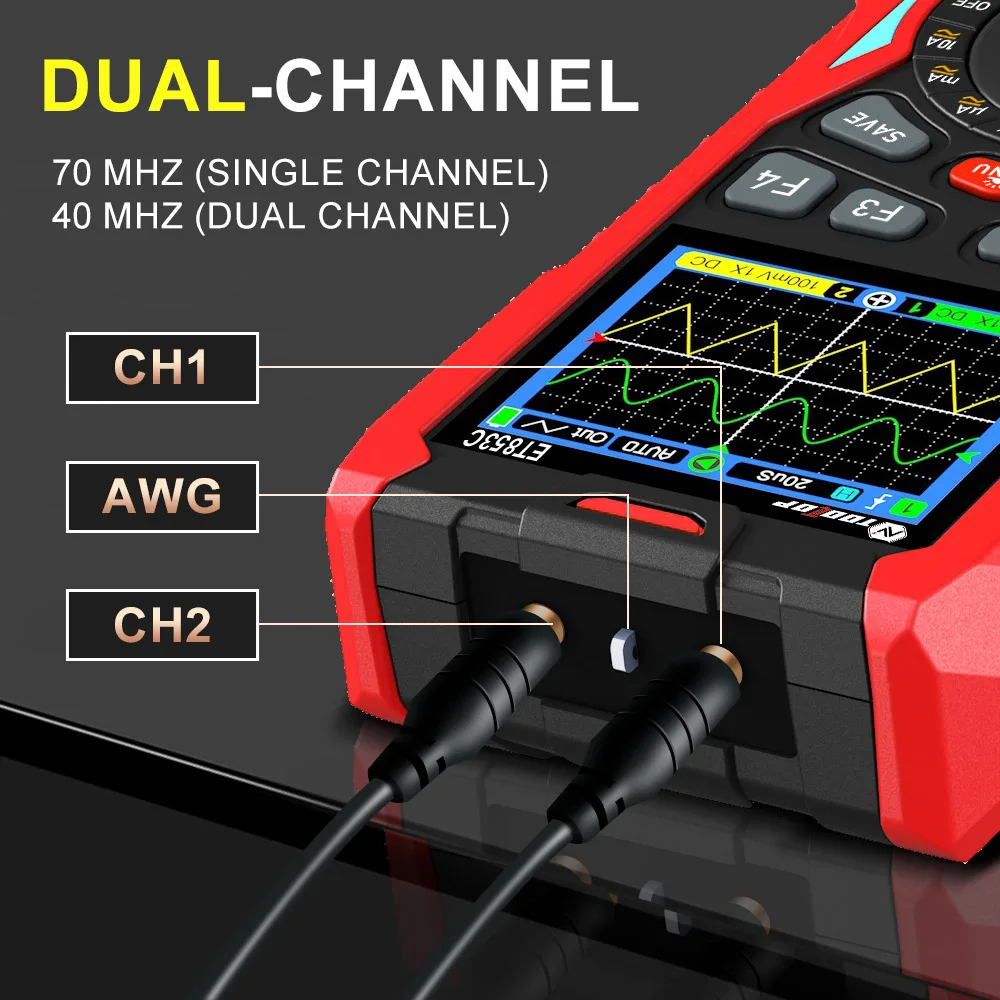

Analog Bandwidth: 70 MHz (single channel), 40MHz(dual channel)

Maximum Equivalent Sampling Rate: 200MspS

Number of Channels: 2

Input Impedance: Approx. 1MΩ

Time Base Range: 6ns/div~50s/div

Time Base Accuracy: ±(0.01% + 0.1div)

Vertical Sensitivity Range:  50 mV/div to 10 V/div at MCX input

Vertical Amplitude Accuracy : ±(5%+ 0.2div)

Scan Modes: Auto/Normal/Single

Trigger Edge Selection: Rising/ Falling

Coupling Modes: DC/AC

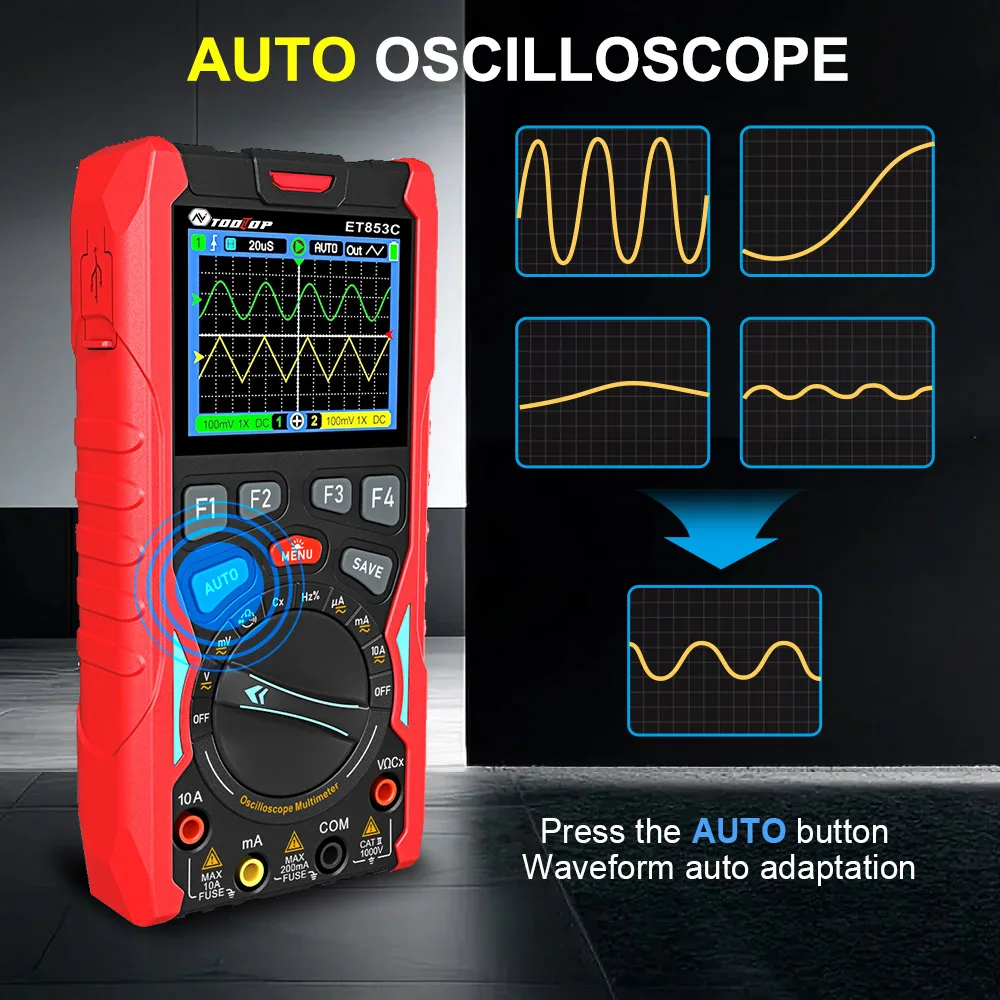

Auto Setup: Automatically sets time base and vertical amplitude

Voltage Measurement Parameters: Vp、Vmax、Vmin、Vpp、Vavg、Vms

Time Measurement Parameters: Freg、Period、+Width、-Width、+Duty、-Duty



Signal Generator Specifications

Output Frequency

Sine Wave: 10Hz to 100kHz (stepped in 1-2-3-5 sequence)

Triangle Wave: 10Hz to 100kHz (stepped in 1-2-3-5 sequence)

Square Wave: 10Hz to 3MHz (stepped in 1-2-3-5 sequence)

Output Amplitude: 3Vpp、2Vpp、1Vpp、0.5Vpp、0.2Vpp、0.1Vpp、0Vpp



Multimeter Specifications

DC Voltage: 20.000mV/200.00mV/2V/20V/200V/1000V

AC Voltage(True RMS):20.000mV/200.00mV/2V/20V/200V/750V

DC Current:200.00uA/2000.0uA/20.000mA /200.00mA/2A/10A

AC Current(TrueRMS):200.00 uA/2000.0uA/20.000mA /200.00mA/2A/10A

Resistance:200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ(Values above 50MΩare for reference only)

Capacitance:9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF

Frequency:1.000Hz~20.000MHz(Above 20M for reference only)

Diode Test:Open-circuit voltage approx.3V, maximum test current approx.2mA

Continuity Test: Threshold resistance approx. 50Ω

Fuse Ratings:200mA/250V, 10A/,125V

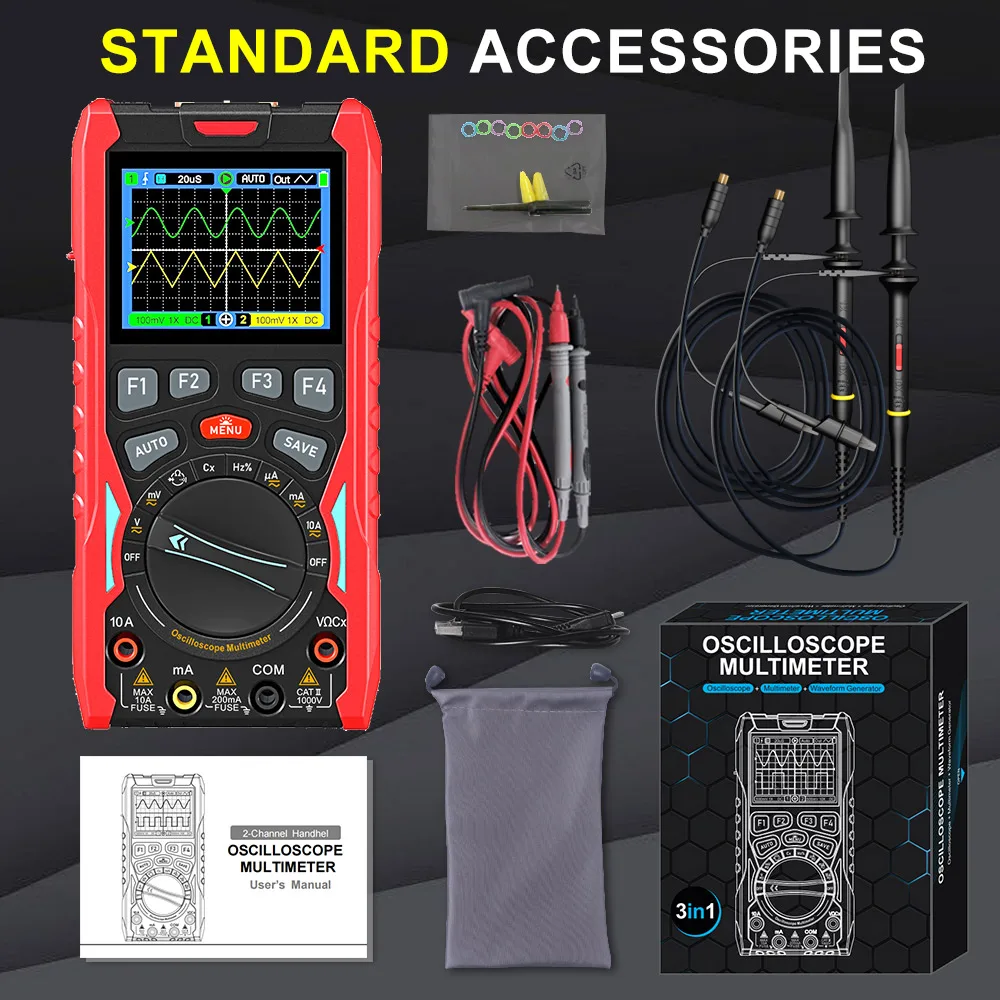

Package List:



1 x Oscilloscope

2 X Probes

1 x One Pair Test Leads

1 X USB Cable

1 X English User Manual
