Original: $46.37
-70%$46.37
$13.91The Story
+AC/DC current, AC/DC voltage
+20000 count true RMS automatic range clamp meter
+Standard non-contact AC voltage sensing (NCV) function
+VFC mode can filter high-frequency interference signals to ensure accurate measurement data.
+AC frequency response up to 1000Hz
+Small size, easy to carry

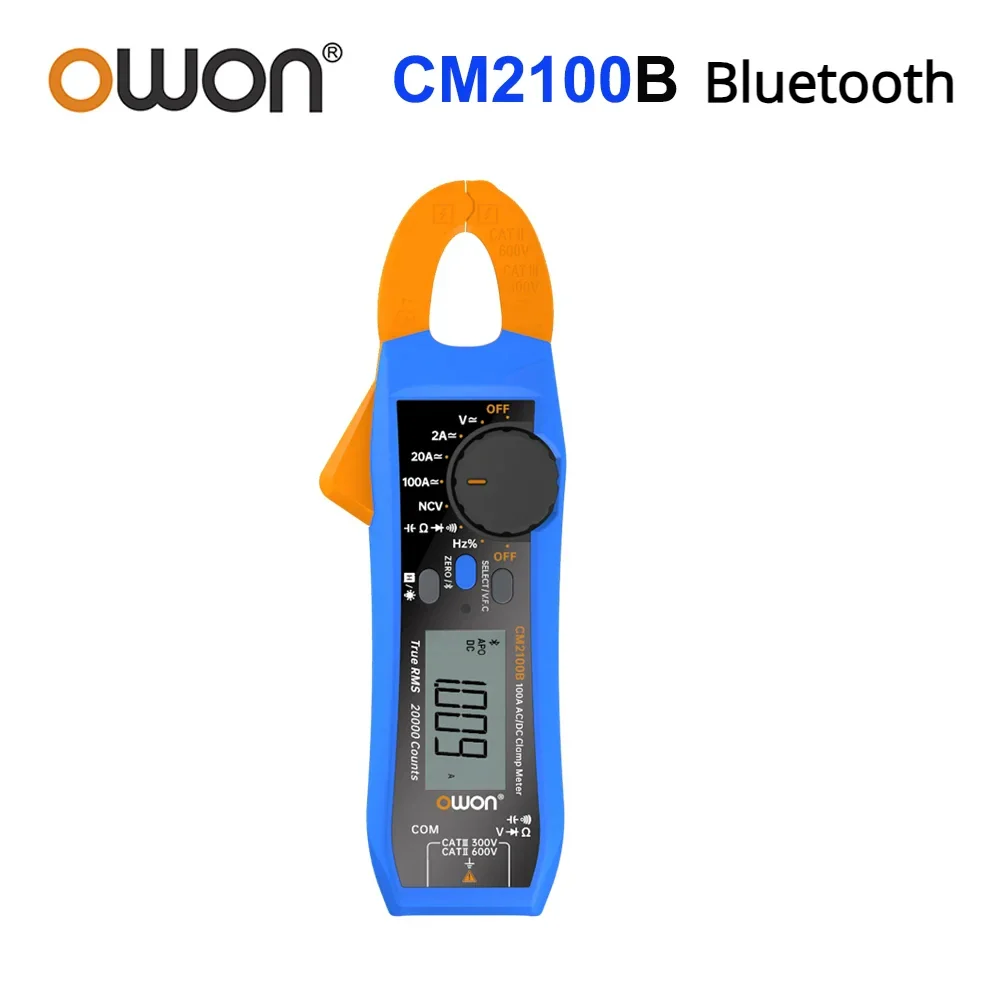

+Bluetooth communication function, supporting Android and Apple phones, enabling remote data viewing and instrument control (2100B)
+Support the recording function, record and analyze the measured values, share the recorded data, and work together (2100B)
＋Performance Specifications
|
Range |
Accuracy |
|
|
AC Current (A) |
2.000A |
±(3%+10dig) in VFC ±（4%+10） |
|
20.00A |
±(2.5%+5dig) in VFC±（4%+10） |
|
|
100.0A / |
||
|
AC Voltage（V） |
2.0000V |
±(0.8%+10dig) in VFC±（4%+3 |
|
20.000V |
||
|
200.00V |
||
|
600.0V |
||
|
DC Current (A) |
2.000A |
±(2%+8dig) |
|
20.00A |
±(2%+3dig) |
|
|
100.0A |
||
|
DC Voltage（V） |
20.00mV |
±(0.7%+10dig) |
|
200.00mV |
||
|
2.0000V |
±(0.5%+5dig) |
|
|
20.000V |
||
|
200.00V |
||
|
600.0V |
||
|
Resistance（R） |
200.0Ω |
±(0.8%+10dig) |
|
2.0000kΩ |
±(0.5%+10dig) |
|
|
20.000kΩ |
±(0.5%+10dig) |
|
|
200.00kΩ |
||
|
2.0000MΩ |
||
|
20.000MΩ |
±(1%+10dig) |
|
|
200.00MΩ |
±(5.0%+10dig) |
|
|
Capacitance (F) |
2.0000nF/ 20.000nF/ 200.00nF/2.0000uF 20.000uF/ 200.00uF / 2.0000mF/ 20.000mF |
±(3.0%+10dig) |
|
Frequency (Hz) |
200.00Hz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz |
±(0.1%+5dig) |
|
Duty cycle (%) |
0.1% - 99.9%( typical：Vrms=1 V, f=1kHz) |
±(1.2%+3dig) |
|
0.1% - 99.9%(≥1 kHz) |
±(2.5%+3dig) |
|
|
General |
||
|
Display |
20000 conuts |
|
|
Frequency Respones |
40Hz～1000Hz |
|
|
Auto Ranging |
√ |
|
|
Date Hold |
√ |
|
|
Jaw Capacity |
17mm |
|
|
Diode |
√ |
|
|
Continuity Buzzer |
√ |
|
|
NCV |
√ |
|
|
VFC |
√ |
|
|
Zero |
√ |
|
|
Low-battery Indicator |
√ |
|
|
Relative Measurement |
√ |
|
|
Input Protection |
√ |
|
|
In put Impedance |
≥10MΩ |
|
|
Overrange Alarm |
√ |
|
|
On-off Warning |
√ |
|
|
other |
||
|
Battery |
2 x 1.5V AAA |
|
|
Dimension (L *W* D) |
182mm*57mm*32mm |
|
|
Weight (without package) |
0.2K |
|
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
+AC/DC current, AC/DC voltage
+20000 count true RMS automatic range clamp meter
+Standard non-contact AC voltage sensing (NCV) function
+VFC mode can filter high-frequency interference signals to ensure accurate measurement data.
+AC frequency response up to 1000Hz
+Small size, easy to carry
+Bluetooth communication function, supporting Android and Apple phones, enabling remote data viewing and instrument control (2100B)
+Support the recording function, record and analyze the measured values, share the recorded data, and work together (2100B)
＋Performance Specifications
|
Range |
Accuracy |
|
|
AC Current (A) |
2.000A |
±(3%+10dig) in VFC ±（4%+10） |
|
20.00A |
±(2.5%+5dig) in VFC±（4%+10） |
|
|
100.0A / |
||
|
AC Voltage（V） |
2.0000V |
±(0.8%+10dig) in VFC±（4%+3 |
|
20.000V |
||
|
200.00V |
||
|
600.0V |
||
|
DC Current (A) |
2.000A |
±(2%+8dig) |
|
20.00A |
±(2%+3dig) |
|
|
100.0A |
||
|
DC Voltage（V） |
20.00mV |
±(0.7%+10dig) |
|
200.00mV |
||
|
2.0000V |
±(0.5%+5dig) |
|
|
20.000V |
||
|
200.00V |
||
|
600.0V |
||
|
Resistance（R） |
200.0Ω |
±(0.8%+10dig) |
|
2.0000kΩ |
±(0.5%+10dig) |
|
|
20.000kΩ |
±(0.5%+10dig) |
|
|
200.00kΩ |
||
|
2.0000MΩ |
||
|
20.000MΩ |
±(1%+10dig) |
|
|
200.00MΩ |
±(5.0%+10dig) |
|
|
Capacitance (F) |
2.0000nF/ 20.000nF/ 200.00nF/2.0000uF 20.000uF/ 200.00uF / 2.0000mF/ 20.000mF |
±(3.0%+10dig) |
|
Frequency (Hz) |
200.00Hz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz |
±(0.1%+5dig) |
|
Duty cycle (%) |
0.1% - 99.9%( typical：Vrms=1 V, f=1kHz) |
±(1.2%+3dig) |
|
0.1% - 99.9%(≥1 kHz) |
±(2.5%+3dig) |
|
|
General |
||
|
Display |
20000 conuts |
|
|
Frequency Respones |
40Hz～1000Hz |
|
|
Auto Ranging |
√ |
|
|
Date Hold |
√ |
|
|
Jaw Capacity |
17mm |
|
|
Diode |
√ |
|
|
Continuity Buzzer |
√ |
|
|
NCV |
√ |
|
|
VFC |
√ |
|
|
Zero |
√ |
|
|
Low-battery Indicator |
√ |
|
|
Relative Measurement |
√ |
|
|
Input Protection |
√ |
|
|
In put Impedance |
≥10MΩ |
|
|
Overrange Alarm |
√ |
|
|
On-off Warning |
√ |
|
|
other |
||
|
Battery |
2 x 1.5V AAA |
|
|
Dimension (L *W* D) |
182mm*57mm*32mm |
|
|
Weight (without package) |
0.2K |
|
