Highlights
✦ Upgraded Version: Oscilloscope and DDS signal generator dual mode with 1 MHz High bandwidth, 5MS/s high sampling rate, 500ns-20S time base range, and can measure voltages up to 400V.
✦ DDS Signal Generator: The DDS signal generator can output 14 waveforms, and the maximum waveform output frequency is up to 10KHz.

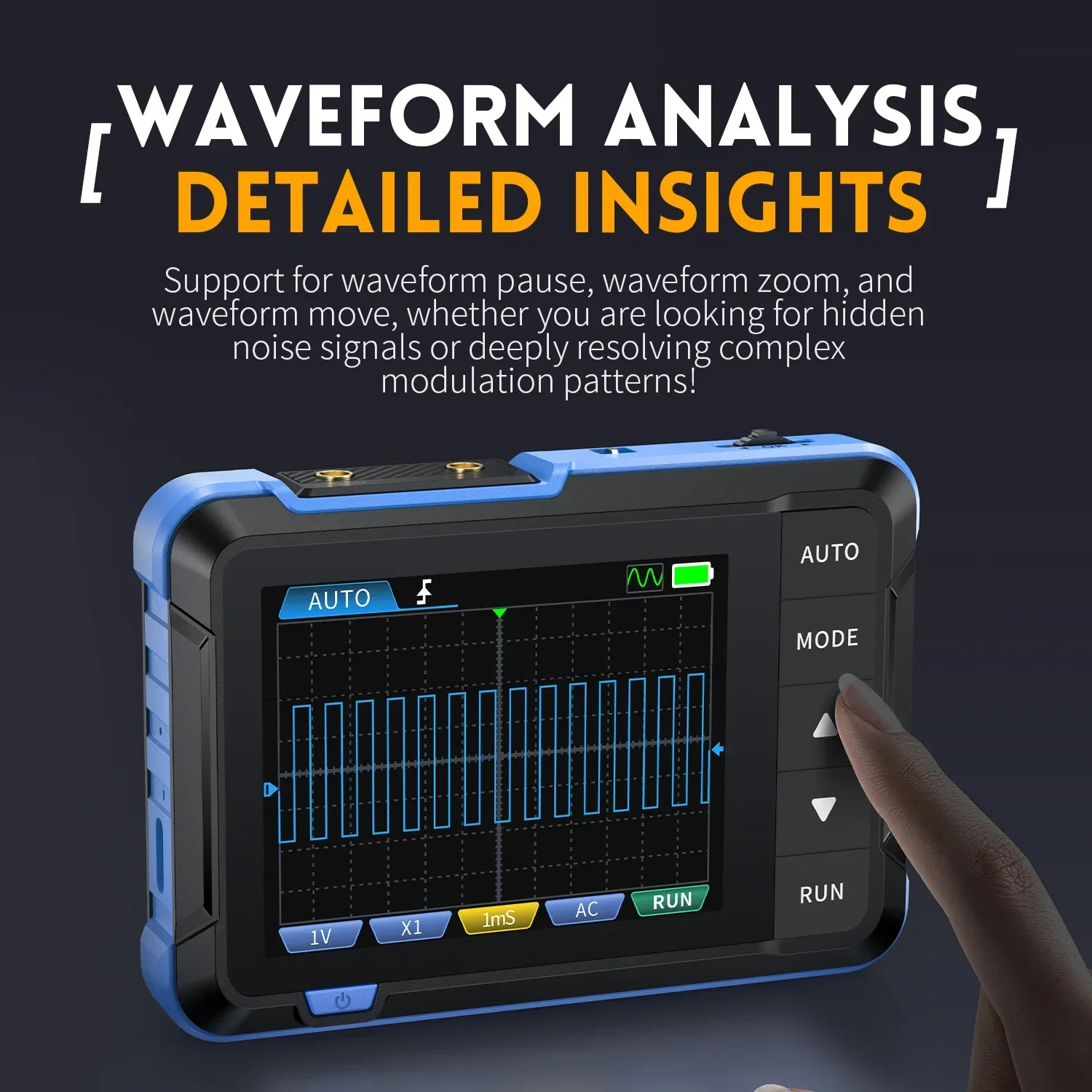

✦ Easy Measurement: The handheld oscilloscope is equipped with intelligent one-click automatic configuration function. Long press the AUTO button to quickly calibrate the baseline and display the measurement waveform without complicated debugging.
✦ Professional Design: The automotive oscilloscope is equipped with a 2.8-inch High-definition LCD display, 320*240 resolution, Auto/Normal/Single trigger function, suitable for periodic analog signals and non-periodic digital signals.
✦ Rechargeable lithium battery: The portable oscilloscope has a built-in 1000 mAh high-quality lithium battery, supports Type-C interface charging, and has a battery life of about 4 hours.

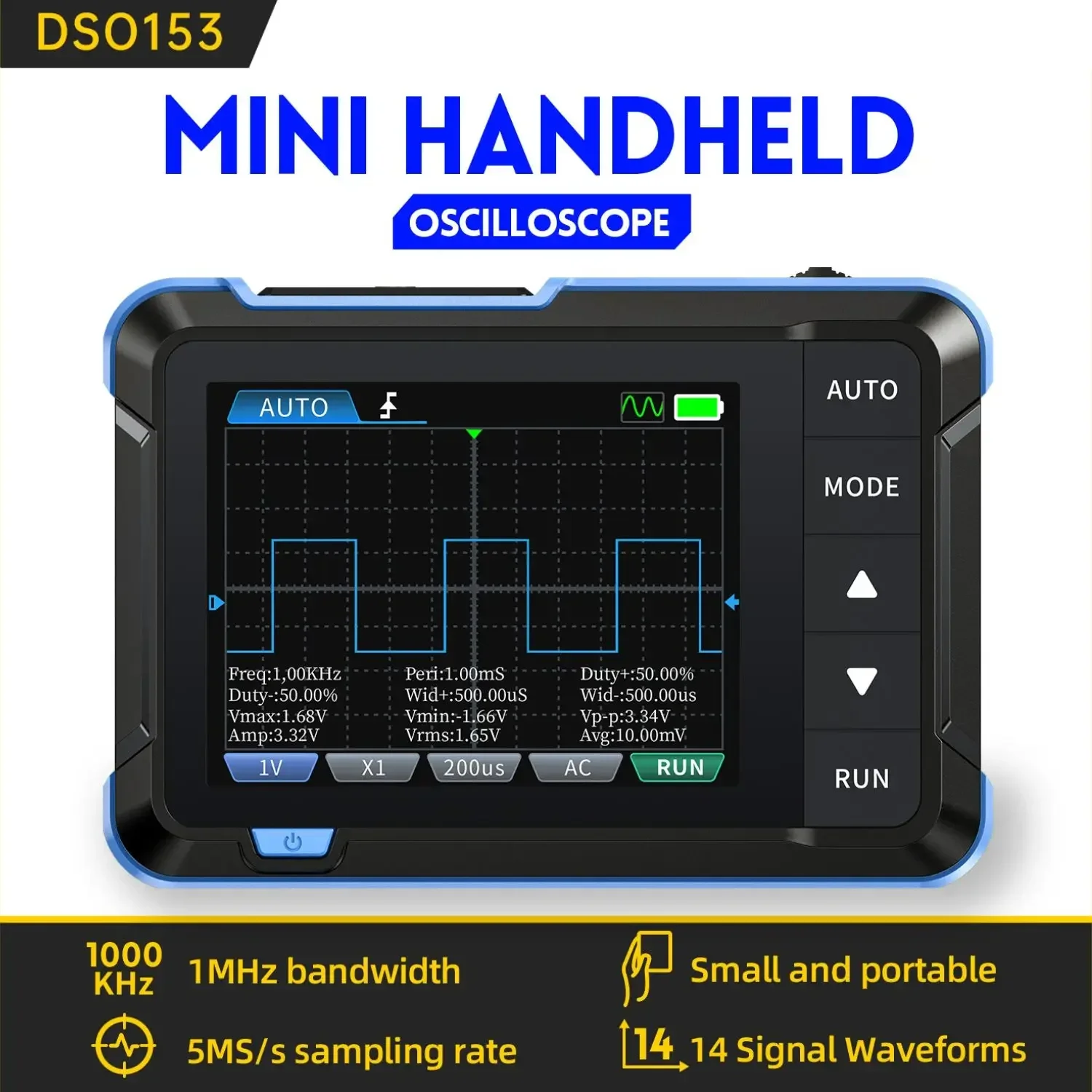

DSO-153 is a highly practical and cost-effective handheld oscilloscope launched by our company, targeting the maintenance industry and development education industry.This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.
In addition, it also comes with multiple functions signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
Mini Oscilloscope *
Sampling rate:5MSa/s
Bandwidth:1MHz
Vertical sensitivity:10mV/Div-20V/Div(Progress according to the 1-2-5 way
Time base range:500ns/Div-20s/Div(Progress according to the 1-2-5 way
Voltage range:X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)
Trigger method:Auto / Normal / Single
Coupling method:AC/DC
* Signal generator *
Frequency:0-10KHz
Duty cycle0-100% (rectangular and sawtooth
waves)
Amplitude0.1-3.3V
WaveformsSine wave, rectangular wave, sawtooth
wave, half wave, full wave, step wave,
anti step wave, noise wave, exponential
rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display:2.8 inches/PPI:320*240
USB charging:5V/1A
Lithium battery capacity:1000mAh
Size:99x68.3x19.5mm
Weight:100g
Packaging specifications

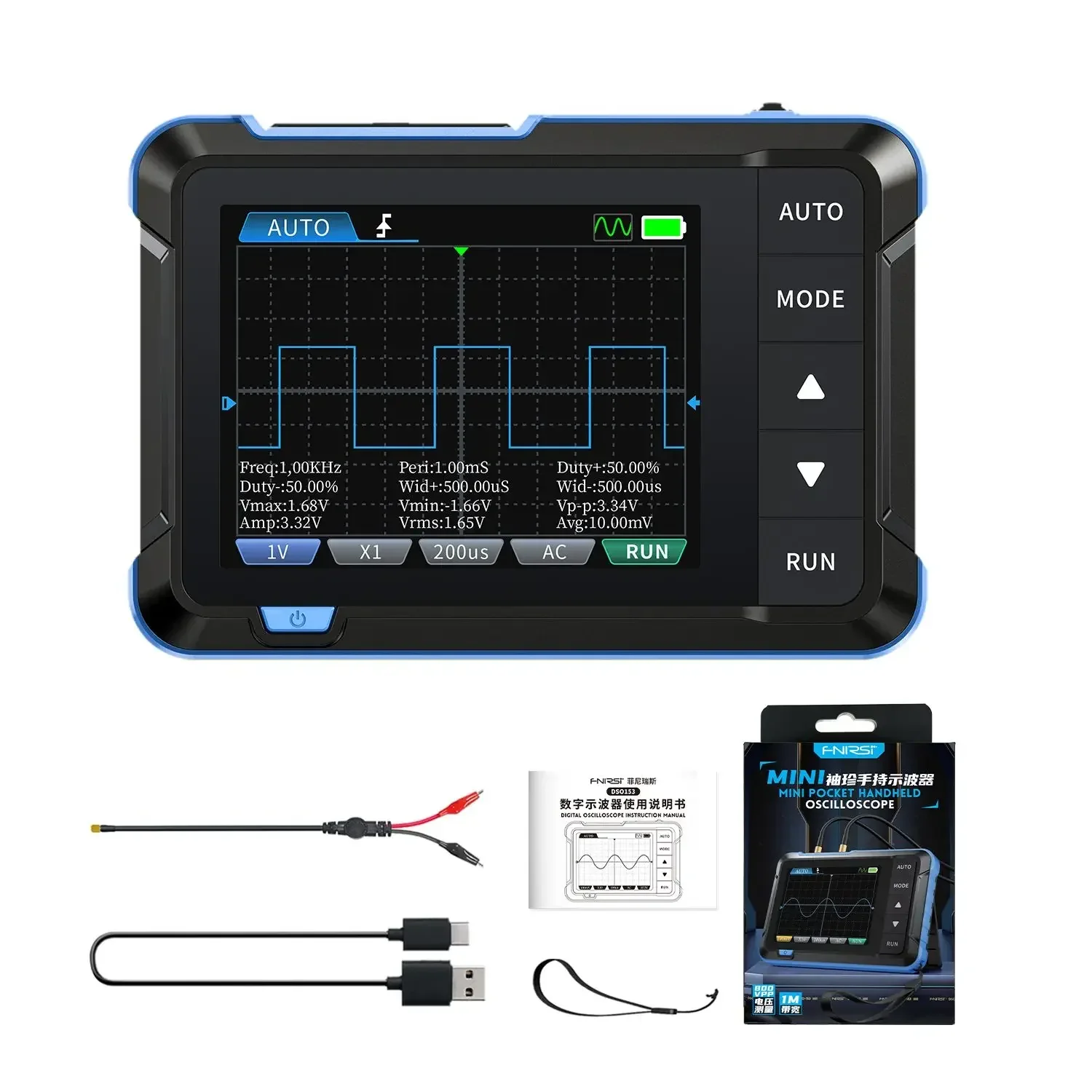

NO.1(Standard)
Host device *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1

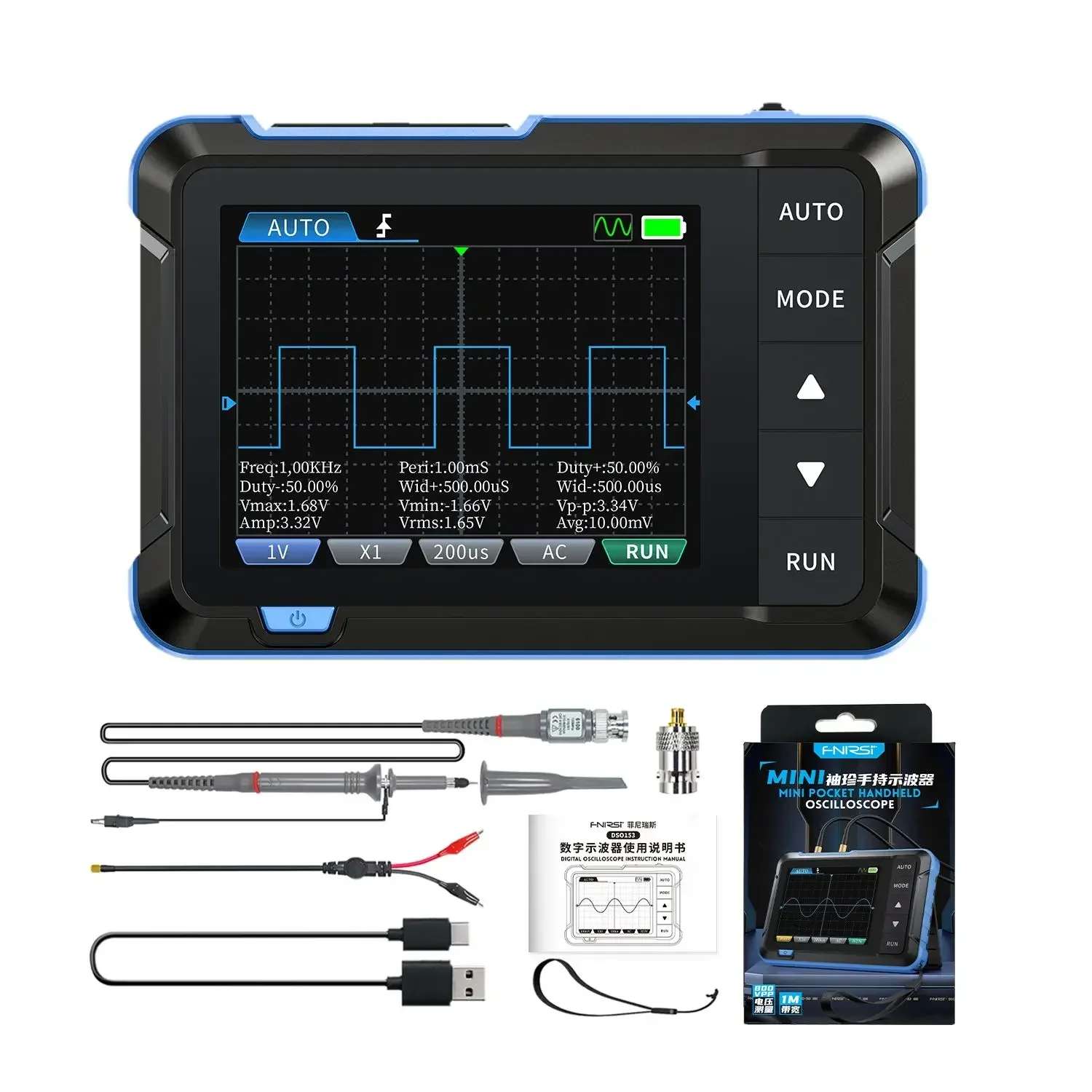

NO.2(Option)
Host device *1
P6100 High Voltage Probe *1
Adapter *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1

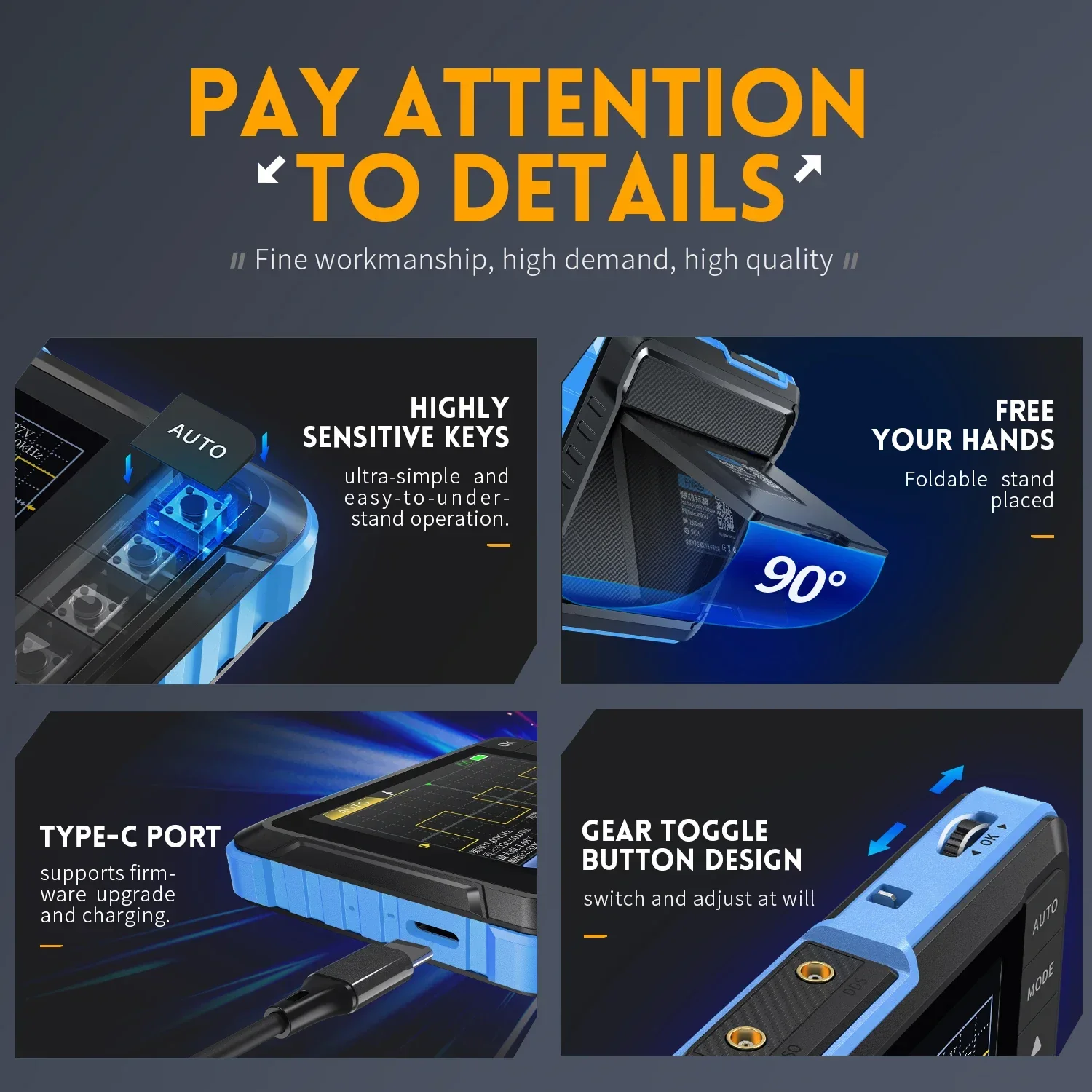

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
