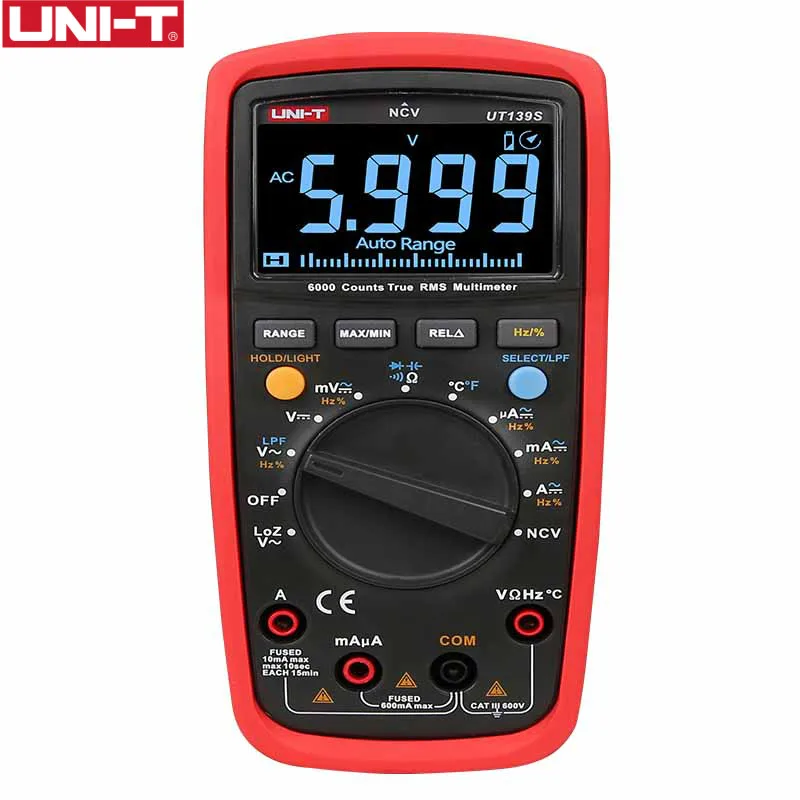

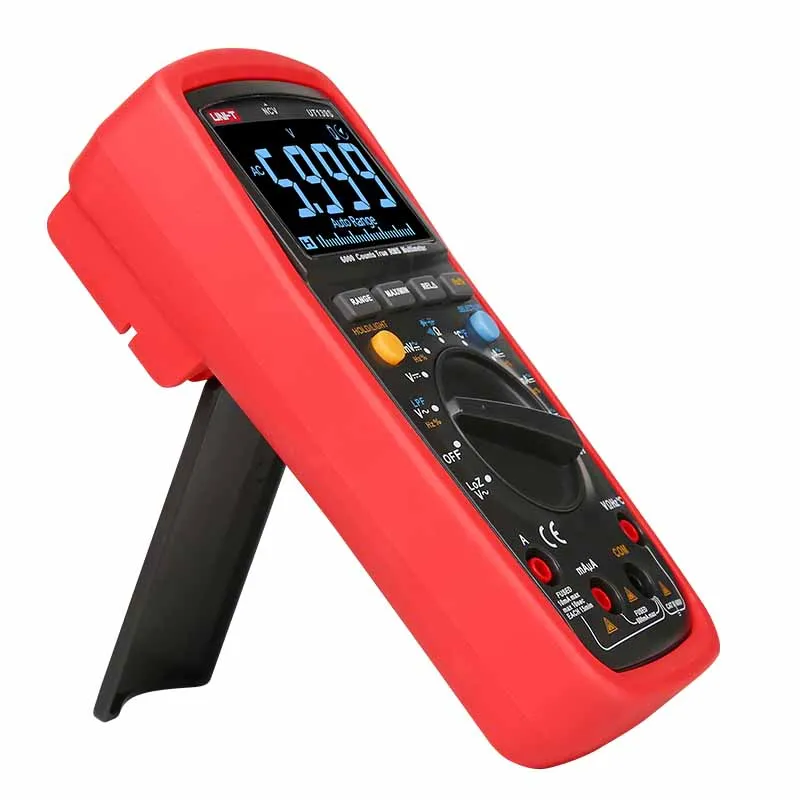

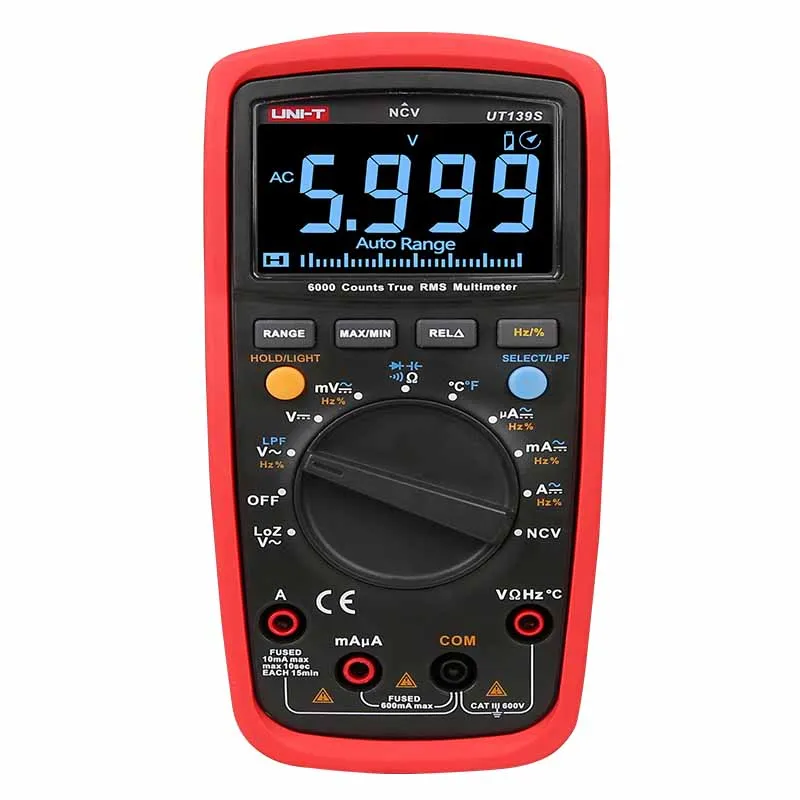

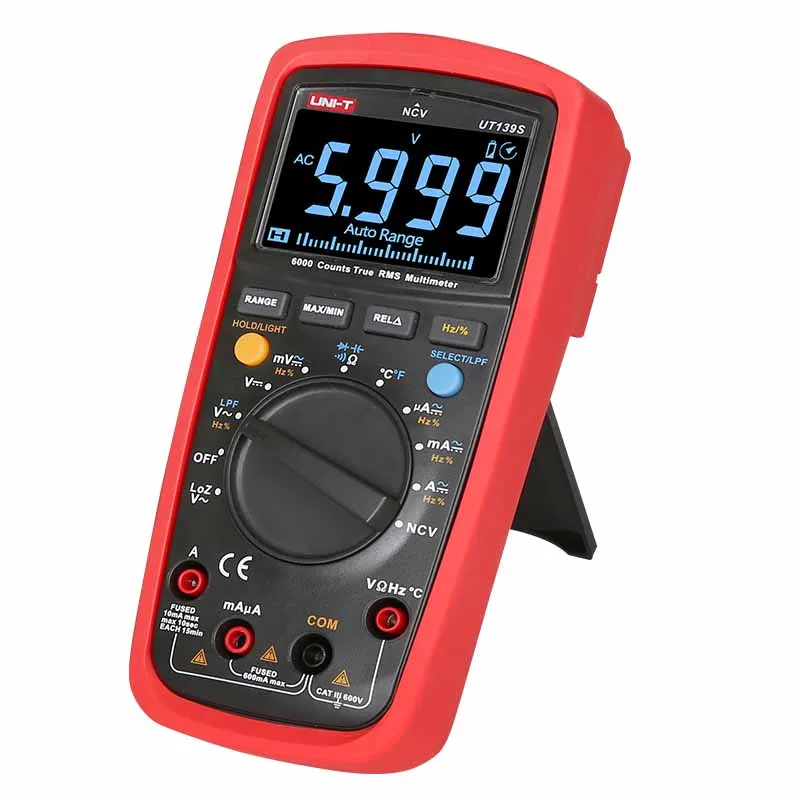

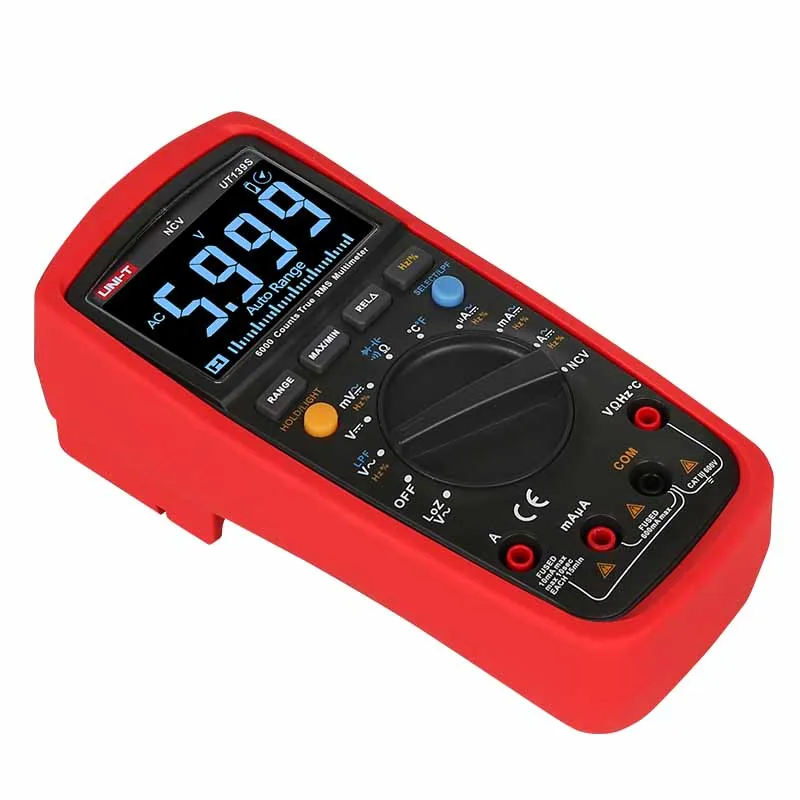

The Story
Main Features
1. True RMS
2. NCV
3. Auto and manual ranges selectable
4. LPF (low pass filter) function
5. LoZ (low impedance input) function
6. 31-segment analog bar graph
7. Black EBTN screen
8. Diode, duty ratio and continuity buzzer
|
Functions |
Range |
Basic Accuracy |
|

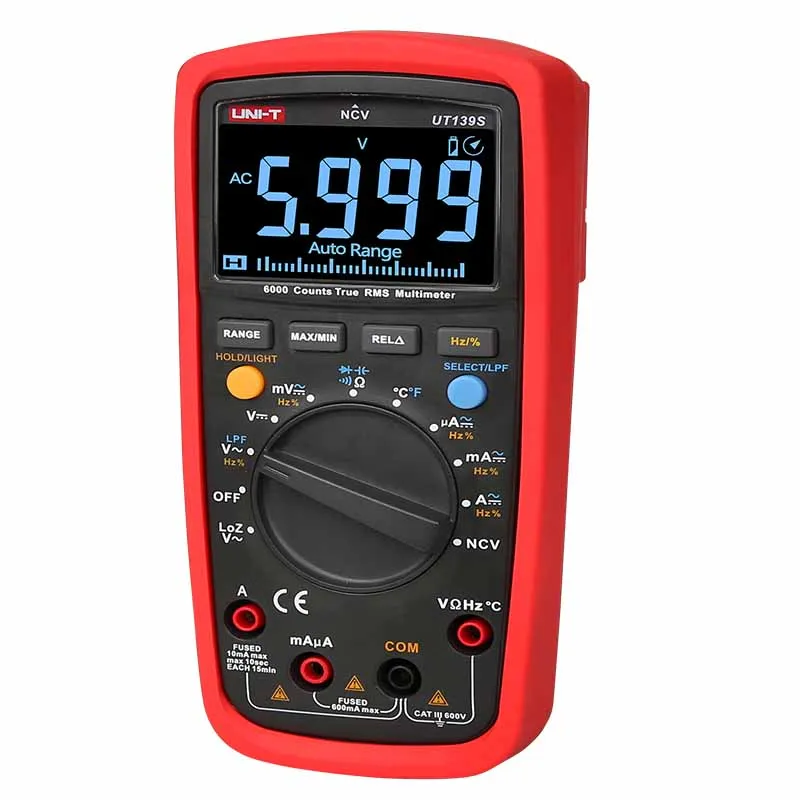

UT139S |
||
|
DC voltage (V) |
60mV/600mV /6V/60V/600V |
±(0.5%＋2) |
|
AC voltage (V) |
60mV/600mV /6V/60V/600V |
±(0.8%+3) |
|
DC current (A) |
600μA/6000μA /60mA/600mA/6A/10A |
±(0.7%+2) |
|
AC current (A) |
600μA/6000μA /60mA/600mA/6A/10A |
±(1.0%+3) |
|
Resistance (Ω) |
600Ω/6kΩ/60kΩ /600kΩ/6MΩ/60MΩ |
±(0.8%+2) |
|
Capacitance (F) |
9.999nF/99.99nF /999.9nF/9.999μF /99.99μF/999.9μF/9.999mF/99.99mF |
±(4%+5) |
|
Frequency (Hz) |
10Hz~10MHz |
±(0.1%+4) |
|
Temperature (℃) |
-40～1000℃ |
±(1.0%+4) |
|
Temperature (℉) |
-40～1832℉ |
±(1.5％+5) |
|
Features |
||
|
Safety rating |
|
CAT III 600V |
|
True RMS |
|
√ |
|
LCD display |
|
EBTN |
|
Display count |
|
6000 |
|
LPF (ACV) |
|
√ |
|
LoZ (ACV) |
|
√ |
|
Diode |
|
√ |
|
Continuity buzzer |
|
√ |
|
Duty cycle |
|
√ |
|
NCV |
|
√ |
|
Sampling rate |
|
3 times/s |
|
Analog bar graph |
|
31 segments |
|
Range selection |
|
√ |
|
Max/Min |
|
√ |
|
Relative mode |
|
√ |
|
Drop proof |
|
1m |
|
General Characteristics |
||
|
Product color |
|
Red and grey |
|
Product net weight |
|
345g |
|
Product size |
|
170×80×48mm |
|
Standard individual packing |
|
Gift box, English manual |
|
Standard quantity per carton |
|
40pcs |
|
Standard carton size |
|
645×450×340mm |
|
Standard carton gross weight |
|
23.12kg |
Notice please: battery no include!
