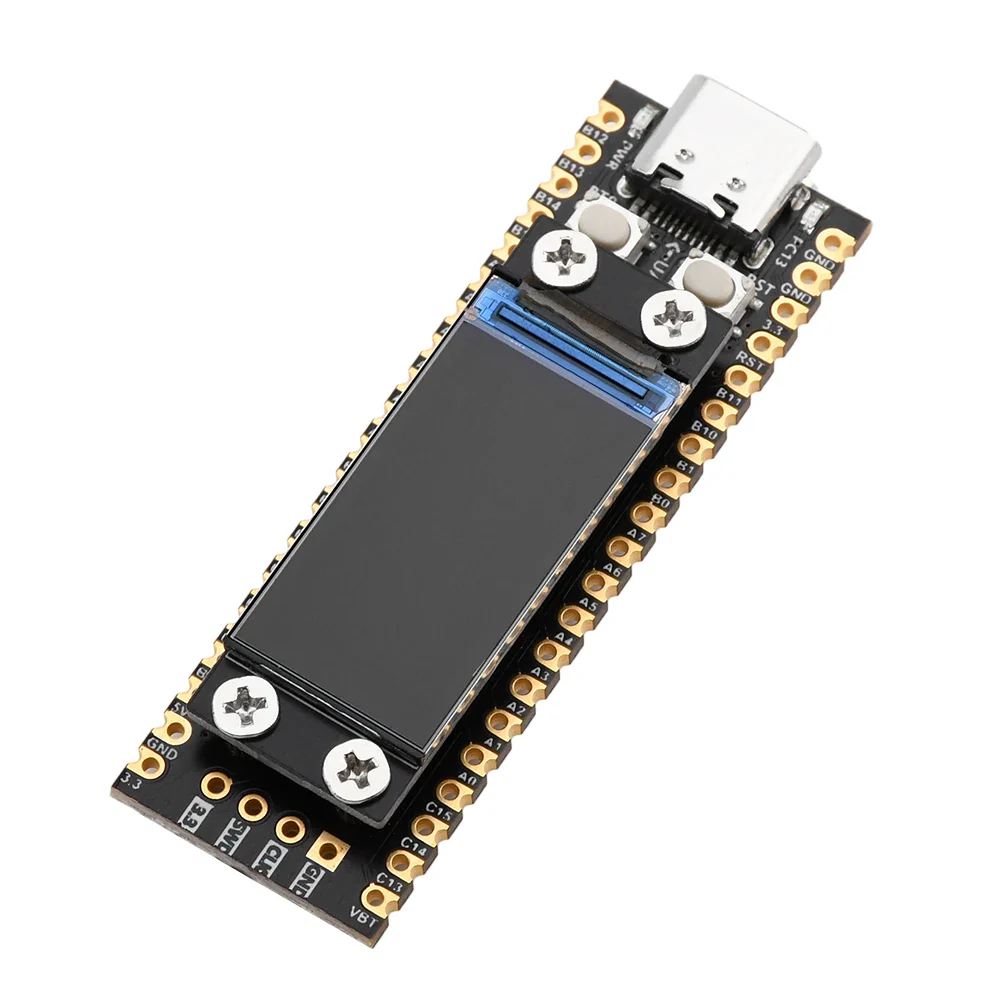

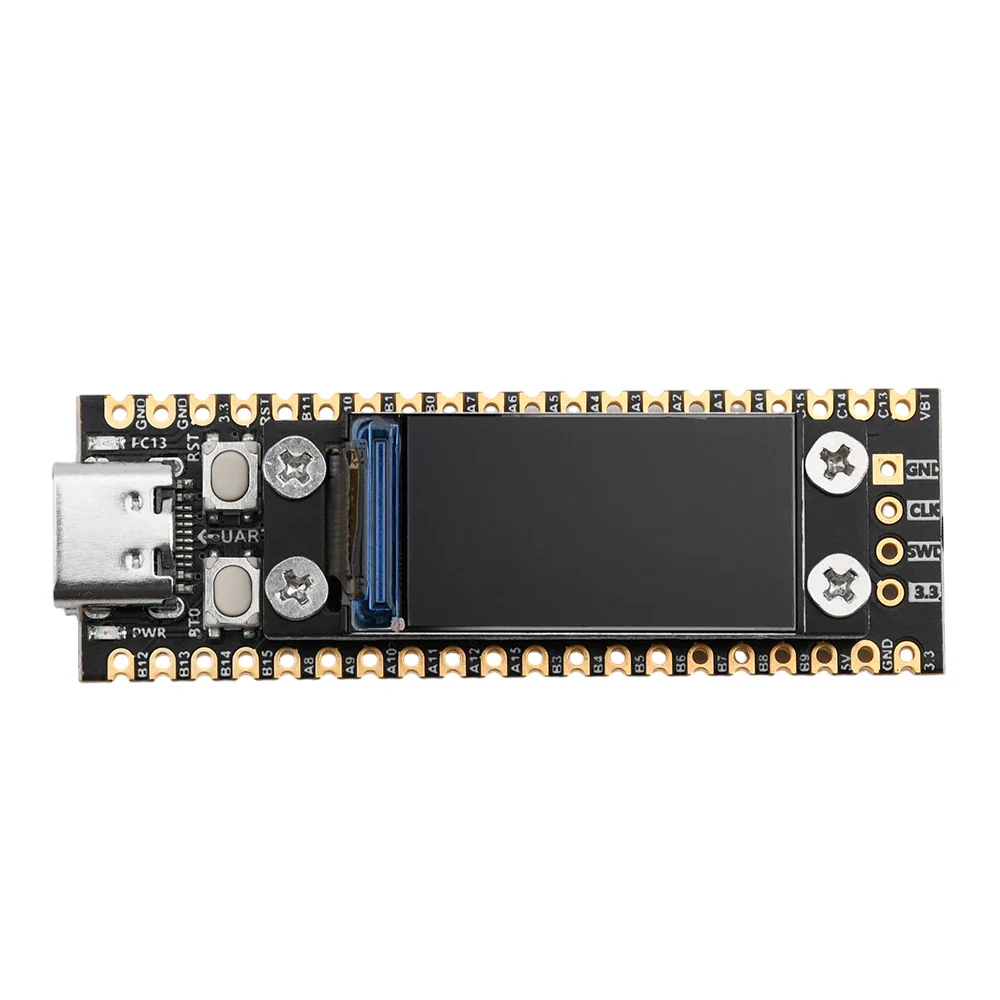

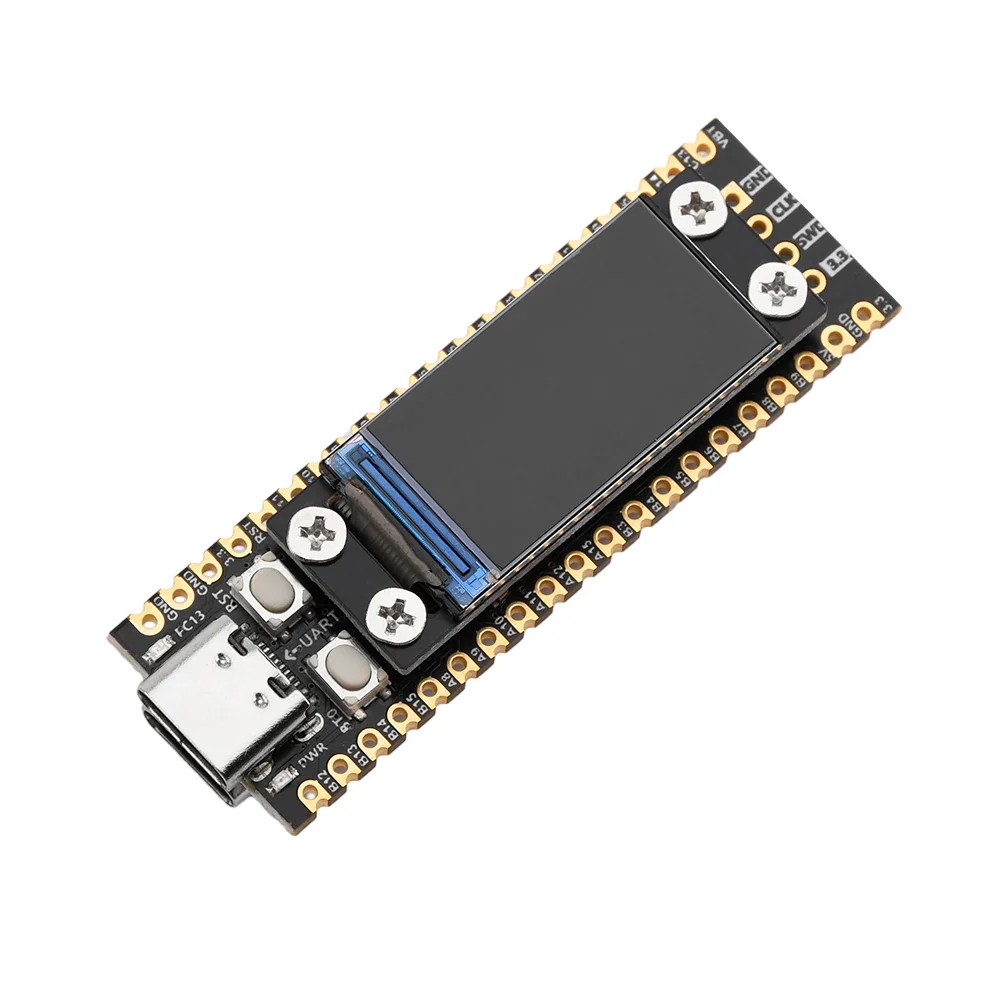

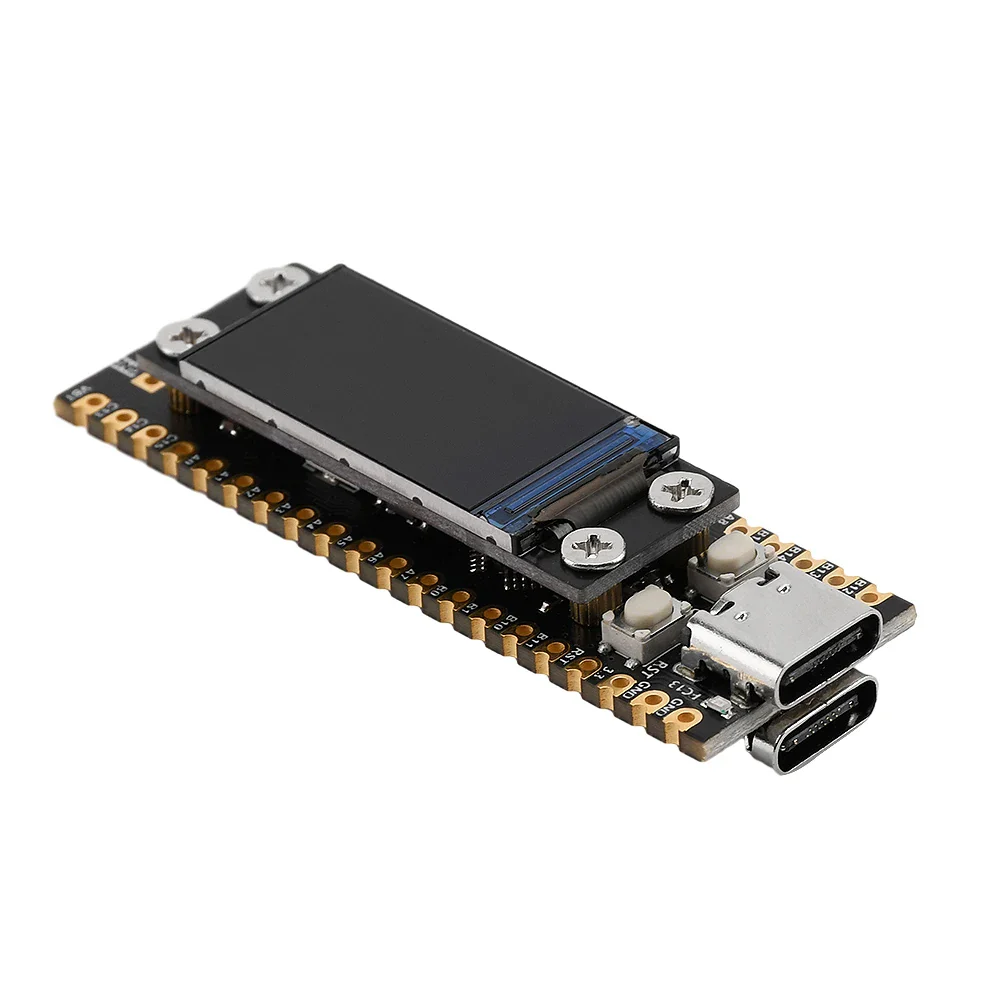

STM32F103C6T6 STM32F103C8T6 Minimum System Board FLASH Microcontroller Development Board C6T6 Core Board 0.96 Inch LCD Screen

1. This product is a 32-bit microcontroller based on the Cortex-M3 kernel, providing high operating frequency and powerful performance.
2. The main frequency of the chip used is as high as 72MHz, and it has very rich on-chip resources, which can fully meet the needs of STM32 learning.
3. The built-in flash memory integrates Flash memory for storing code and programs, with excellent performance, abundant resources, and ultra-high cost-effectiveness.
4. Multiple GPIOs with multiple universal input/output pins (GPIOs) for connecting external devices.
5. It has a wide range of applications, including but not limited to industrial automation, automotive electronics, household appliances, medical equipment, smart homes, and embedded systems.

Parameter:

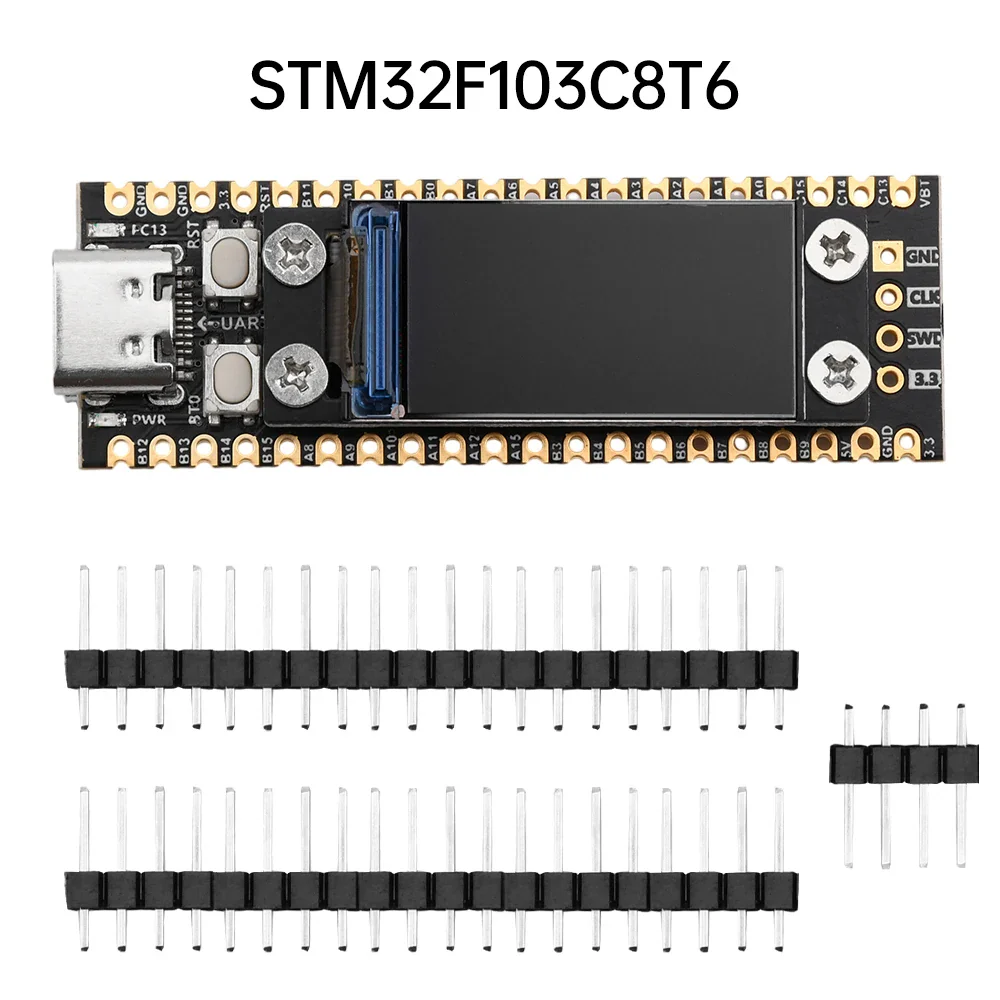

Style 1: STM32F103C8T6:
Main control chip: STM32F103C8T6
Input voltage: USB 5V
Output voltage: 3.3V/5V
3V3/5V maximum power supply current: 500MA
Timer: 4
Serial port: 3
USB function: 1
SRAM[KB]：20KBytes
Flash[KB]：64KBytes
Download method: SWD, serial port download

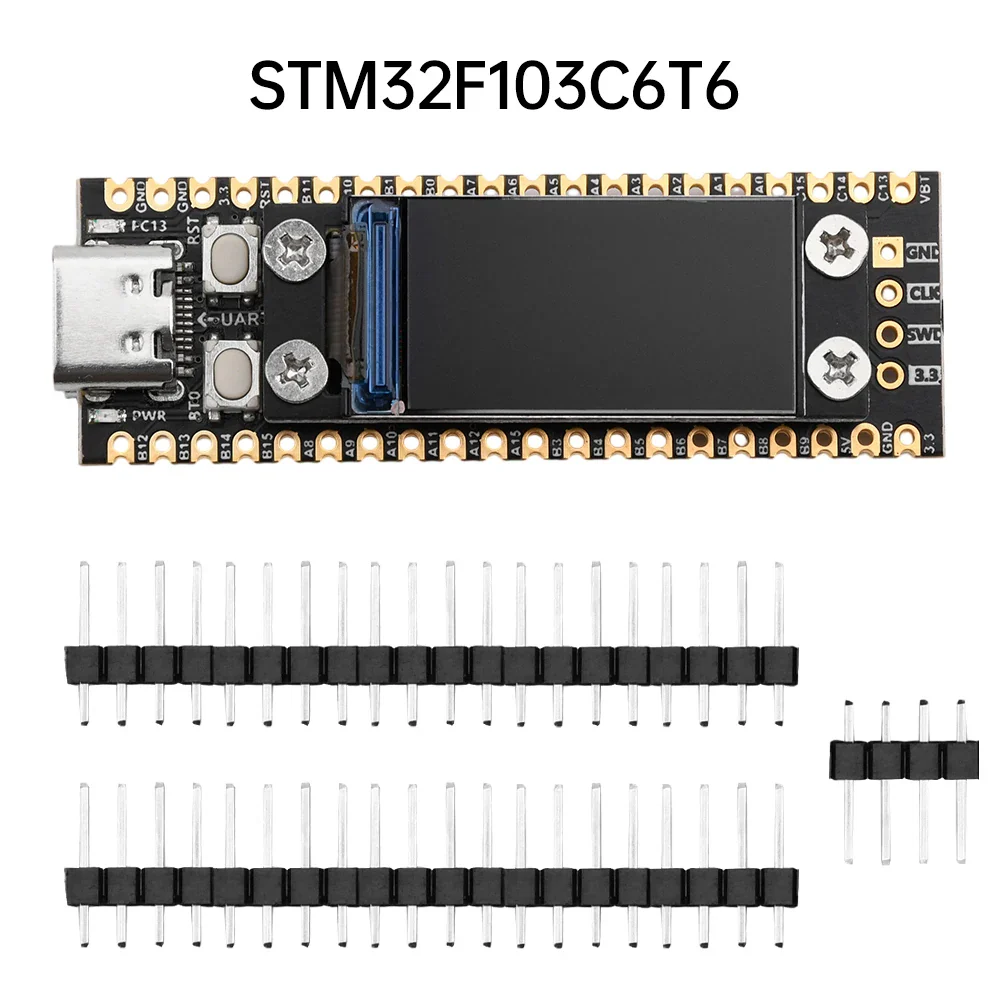

Style 2: STM32F103C6T6:
Main control chip: STM32F103C6T6
Input voltage: USB 5V
Output voltage: 3.3V/5V
3V3/5V maximum power supply current: 500MA
Timer: 3 (without timer 4)
Serial port: 2 (without serial port 3)
USB function: 1
SRAM[KB]：10KBytes
Flash[KB]：32KBytes
Download method: SWD, serial port download

Suggestion:
1. The Flash of the program is less than 32K, the RAM is less than 10K, and STM32F103C6T6 can be used instead of timer 4 and serial port 3, which has a price advantage.
CH32F103C8T6 belongs to the enhanced F103C8T8, with built-in USB download function, no need for additional downloaders, excellent performance, abundant resources, and ultra-high cost-effectiveness.

Package include:
1X development board
3X Pin Headers
