Raspberry Pi 5 PCIe To 4-Ch M.2 Adapter Board 4 x NVMe Solid State Drives support Supply Power for Raspberry Pi 5

Select Bundle

From $9.43

Original: $31.45

-70%

Raspberry Pi 5 PCIe To 4-Ch M.2 Adapter Board 4 x NVMe Solid State Drives support Supply Power for Raspberry Pi 5—

$31.45

$9.43

Select Bundle

From $9.43

Original: $31.45

-70%

Raspberry Pi 5 PCIe To 4-Ch M.2 Adapter Board 4 x NVMe Solid State Drives support Supply Power for Raspberry Pi 5—

$31.45

$9.43

The Story

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, Supports 4-ch NVMe Solid State Drives, Supports powering the Raspberry Pi 5, Onboard LED indicators, Raspberry Pi 5 NVMe

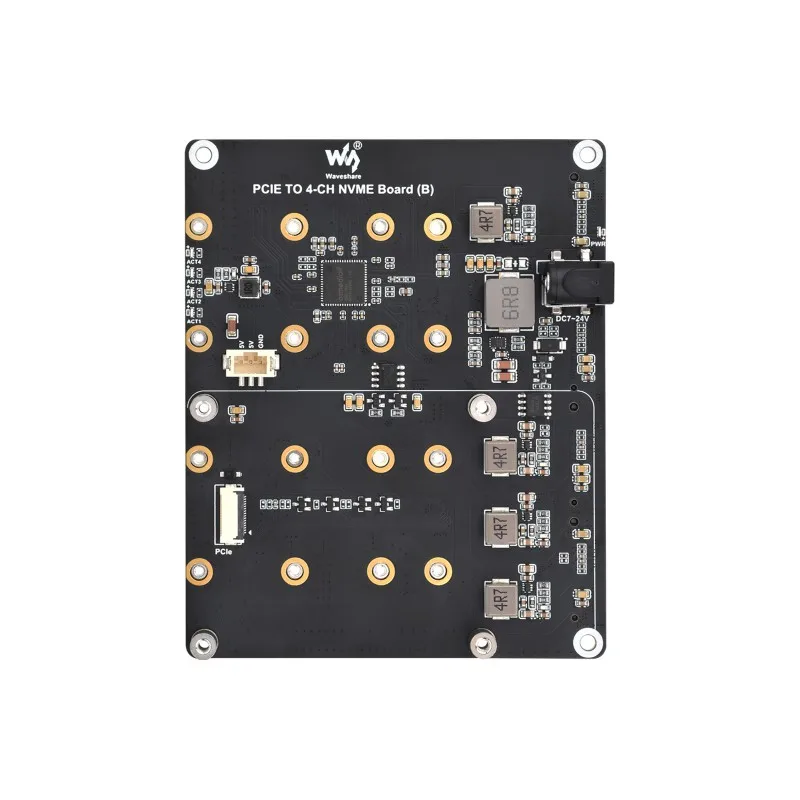

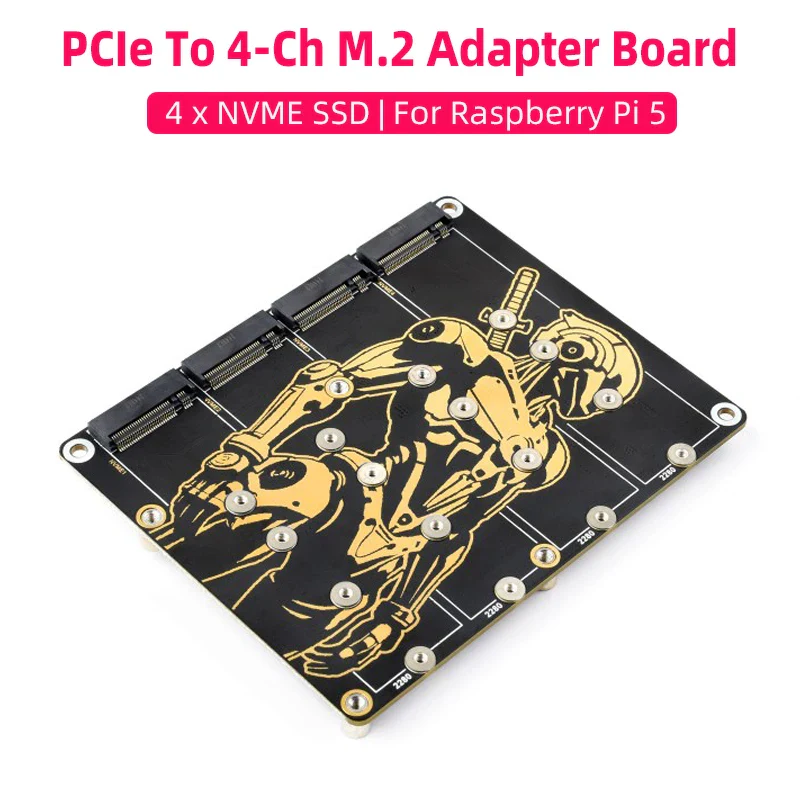

PCIe To 4-Ch M.2 Adapter Board

Designed for Raspberry Pi 5

Adapter For NVMe Protocol M.2 M KEY Solid State Drives, High-Speed Reading/Writing, Improves Working Efficiency

Version Options

PCIE TO 4-CH NVME Board (B) NP
without power supply

PCIE TO 4-CH NVME Board (B)
with 12V 4A power supply

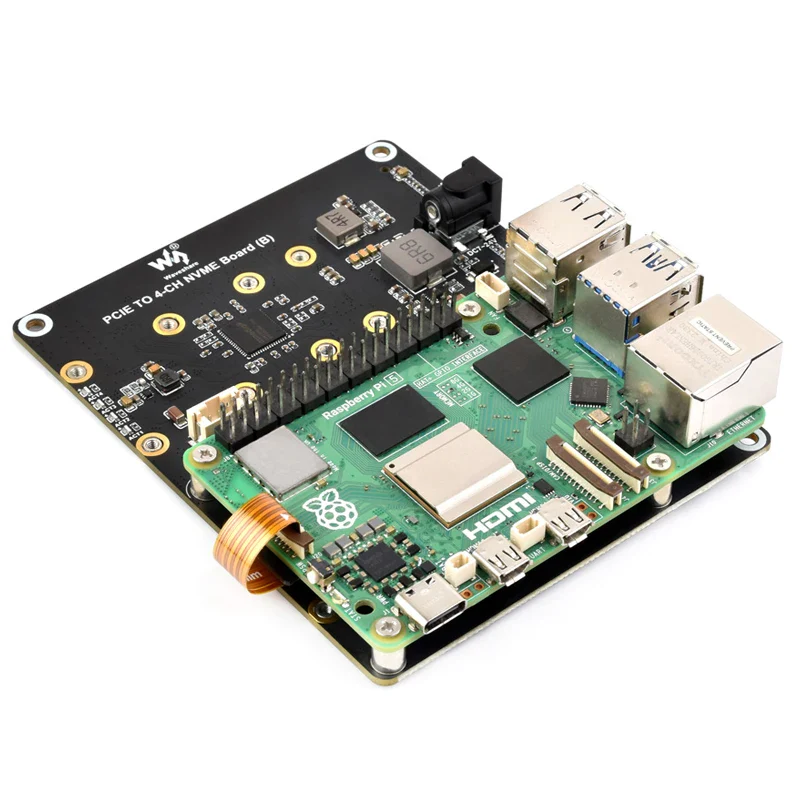

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, the Raspberry Pi 5 is NOT included.

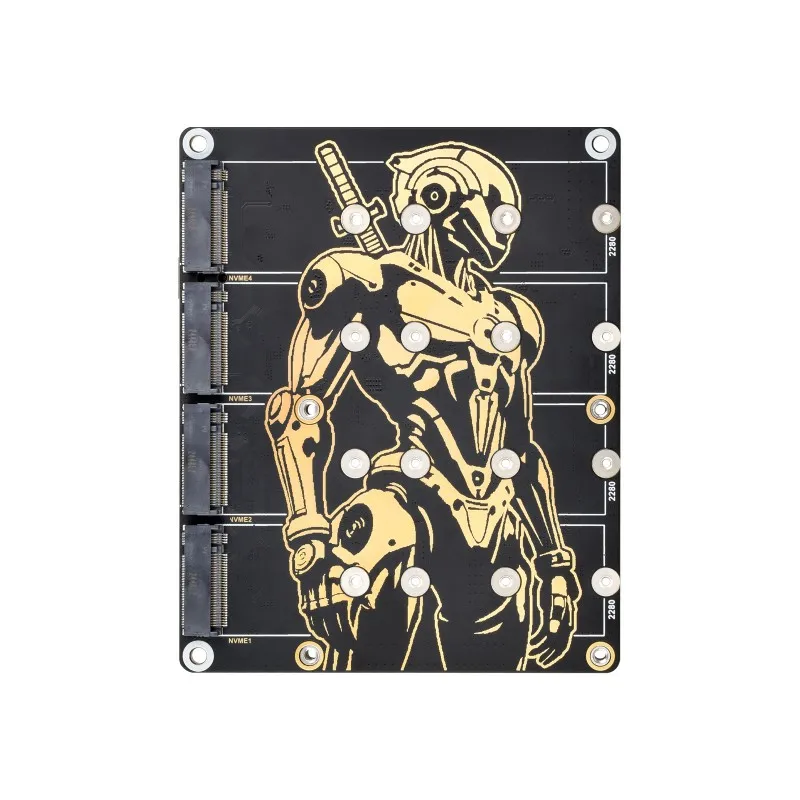

4-ch NVMe Solid State Drives Support

Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives
Supports PCIe x1 Gen2 only, Supports Booting PI5 From Solid State Drive

NVMe Drive Slot Support

Note: Only supports the NVMe Protocol Solid State Drives.

Improves reading/writing speed of your Pi

Offers faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

* for reference only, please refer to the Package Content for detailed part list

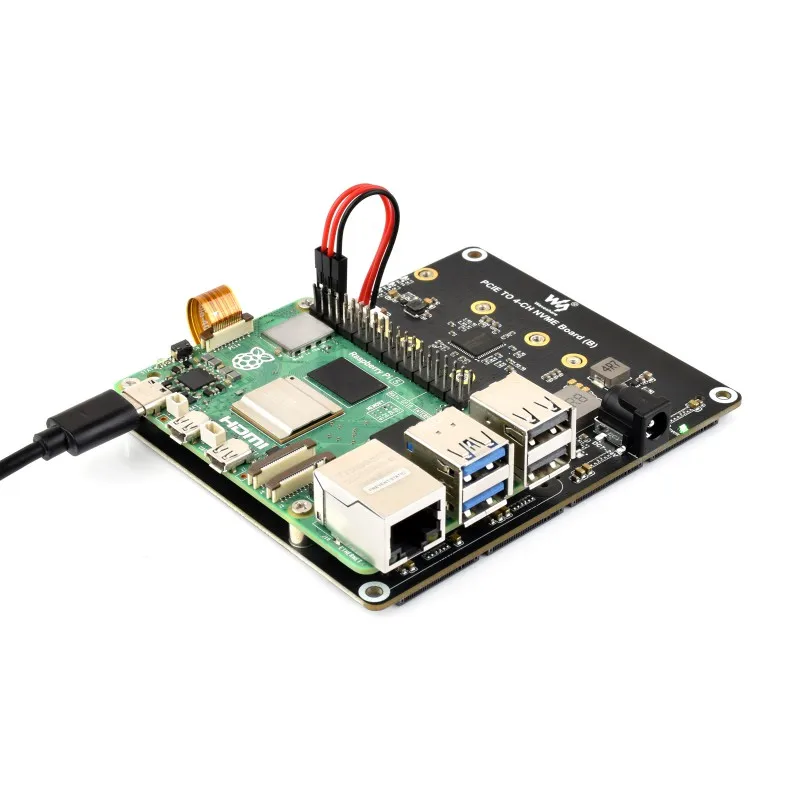

Supports powering the Raspberry Pi 5

Onboard wide voltage input DC jack (7V~24V), supports powering the Raspberry Pi via 3PIN cable (up to 5V 5A). The PCIe adapter board also can be powered by the Raspberry Pi 5.

* for reference only, the Raspberry Pi 5 is NOT included.

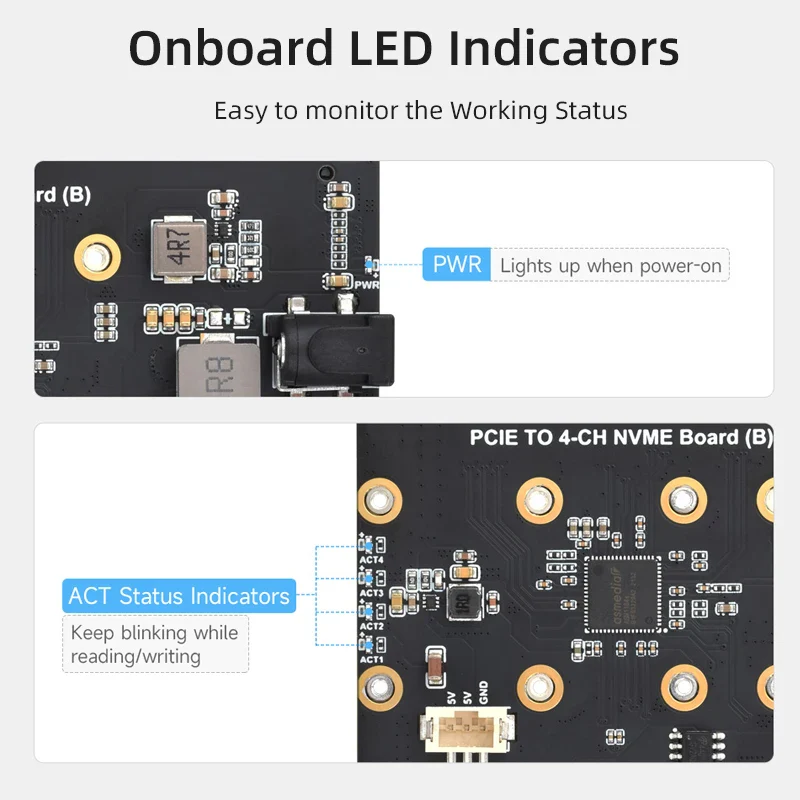

Onboard LED Indicators

Easy to monitor the Working Status

How to install

* for reference only, the Raspberry Pi 5 is NOT included.

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIE_TO_4-CH_NVME_Board_(B)

Packing List

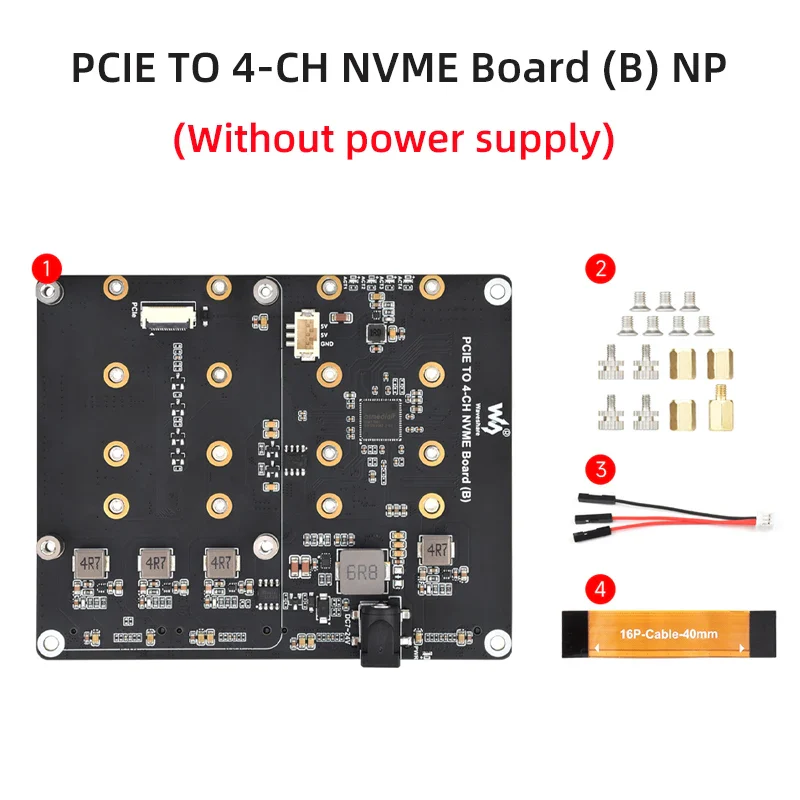

PCIE TO 4-CH NVME Board (B) No Power

PCIE TO 4-CH NVME Board (B) x1
Screws pack x1
PH2.0 3PIN cable x1
16P-Cable-40mm x1

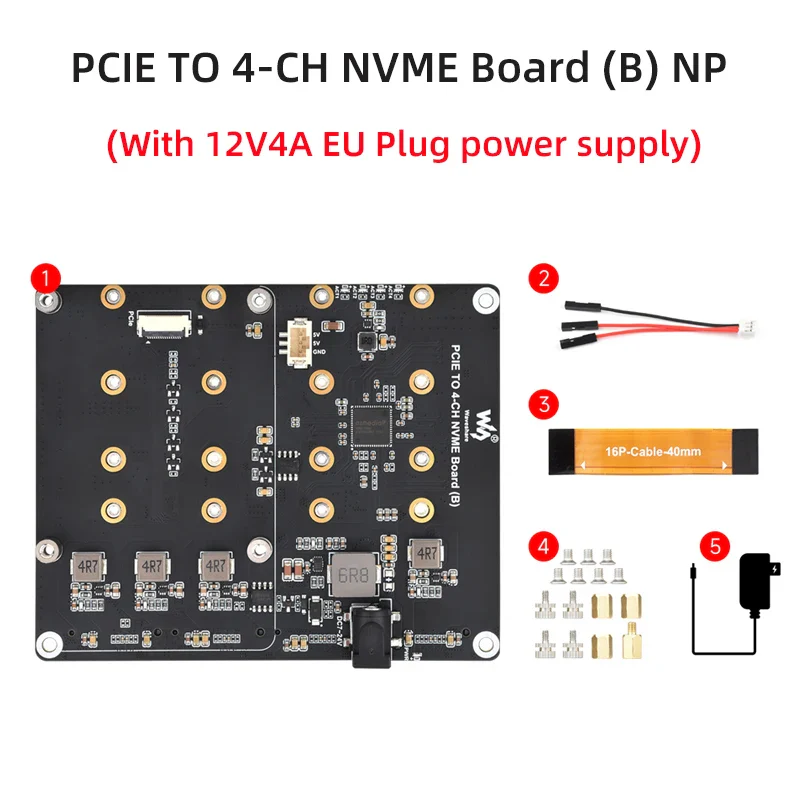

PCIE TO 4-CH NVME Board (B) with Power

PCIE TO 4-CH NVME Board (B) x1
PH2.0 3PIN cable x1
16P-Cable-40mm x1
Screws pack x1
OPTIONS-EU/US 12V 4A power supply x1
