The Story

M5Stack M5CORES3 SE IoT Development Board

Product Description

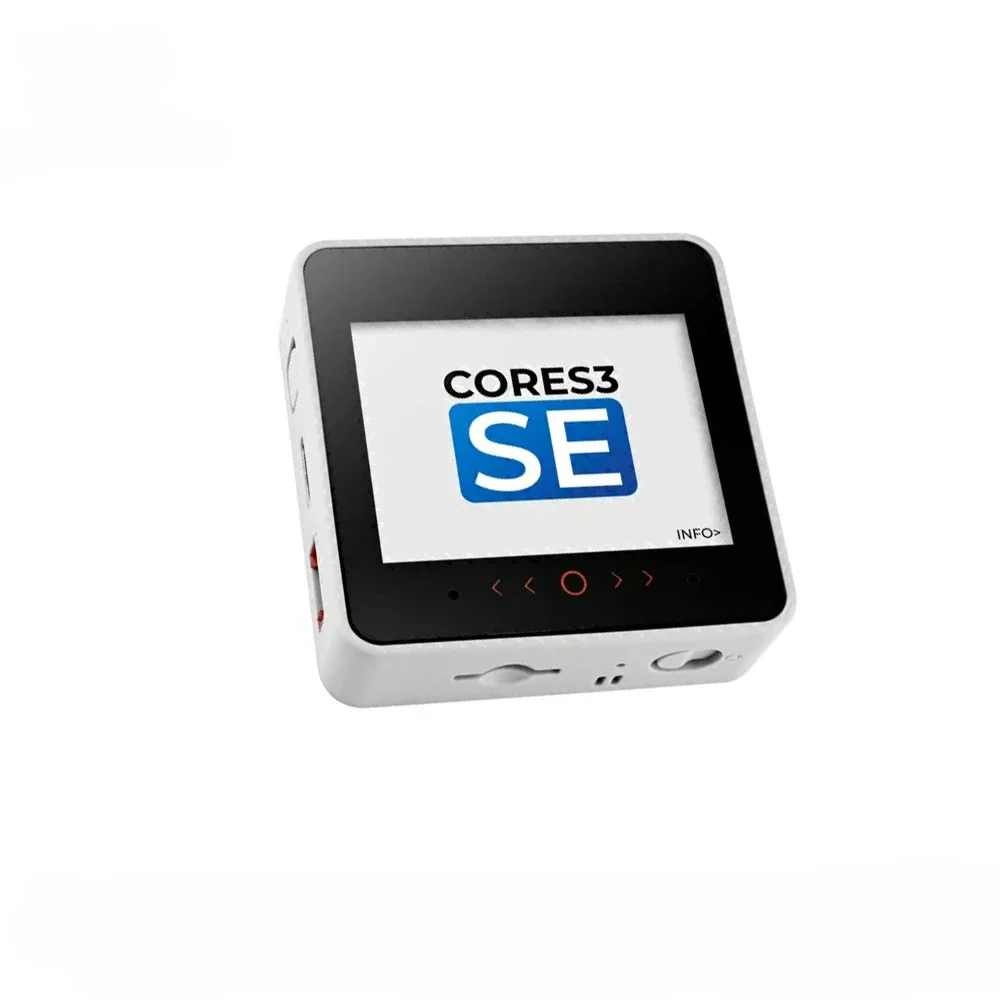

The M5CoreS3 SE is a lightweight version of the third-generation CoreS3 main unit in the M5Stack development kit series. It is powered by the ESP32-S3 solution, featuring a dual-core Xtensa LX7 processor with a main frequency of 240MHz, and comes with built-in (2.4G)WiFi functionality. It has onboard 16MB FLASH and 8MB PSRAM; programs can be downloaded via the TYPE-C interface, which supports OTG and CDC functions, making it convenient to connect USB devices and burn firmware. The front is equipped with a 2.0-inch capacitive touch IPS screen, with a high-strength glass panel. The power supply part uses the AXP2101 power management chip and 4-way power flow control circuit, designed for low power consumption overall. It has an onboard MicroSD card slot and a BM8563 RTC chip that provides precise timing and sleep-timer wake-up functions. For sound output, it uses a high-fidelity 16-bit I2S amplifier chip AW88298 and has a built-in 1W speaker. For sound input, it uses an ES7210 audio decoding chip with dual microphone input. The device body has an independent power button and reset (RST) button on the side, with a built-in delay circuit. Long pressing the reset button enters program download mode. This product is suitable for IoT development, various DIY project development, smart home control systems, and industrial automation control systems.

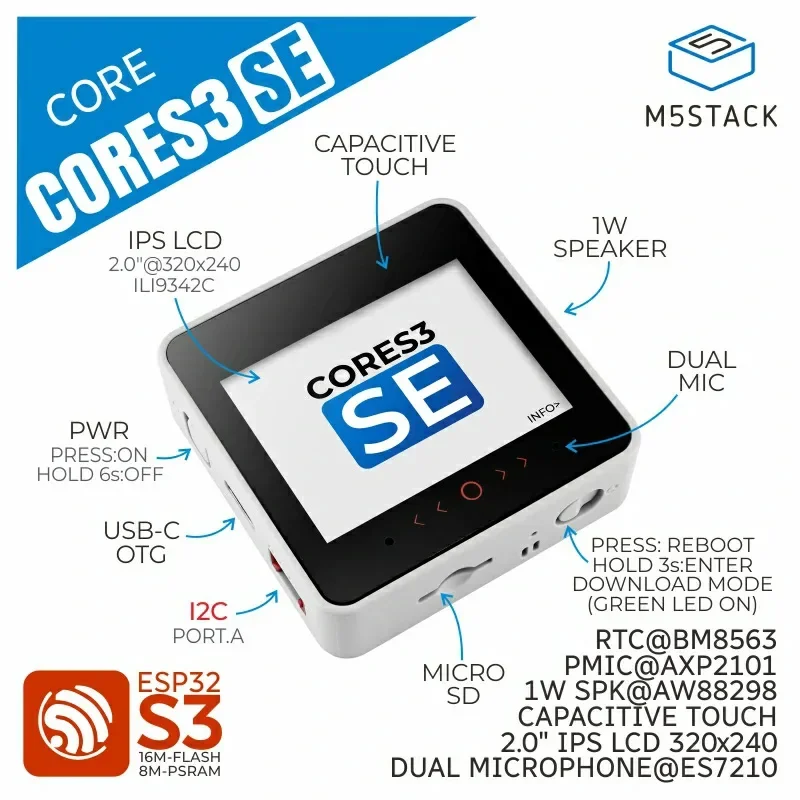

Product Features

Developed based on ESP32-S3, support WiFi @16MB Flash, 8MB PSRAM
Speakers, Dual microphones
Capacitive touch screen
MicroSD card slot
High-strength glass
Support OTG and CDC functions
AXP2101 power management, low power design
Supported programming platforms: Arduino, UIFlow

Applications

IoT development
Various DIY project development
Smart home control system
Industrial automation control system

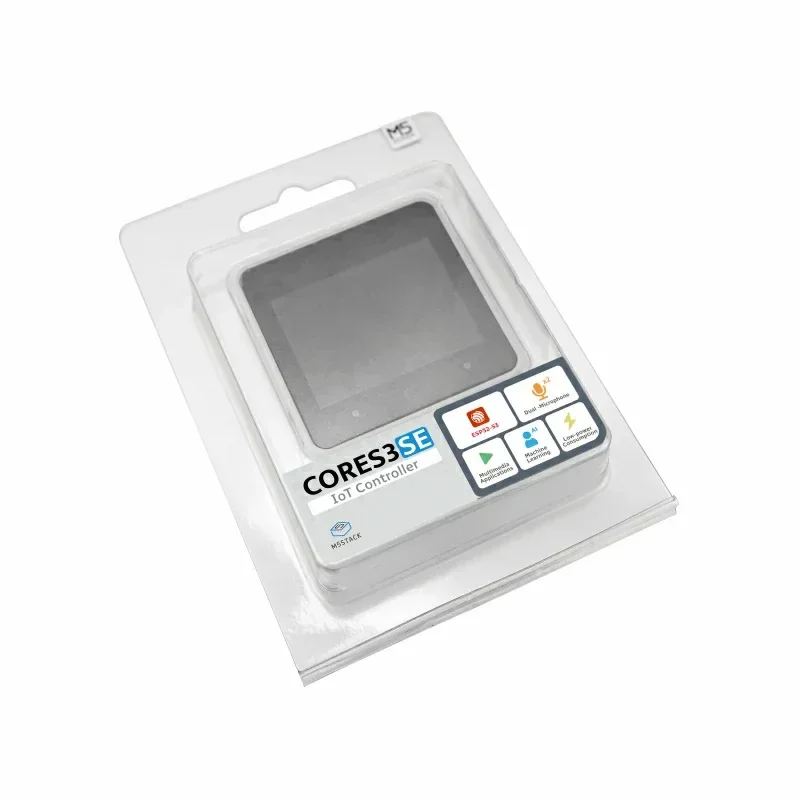

Package Includes

1 × M5CoreS3 SE

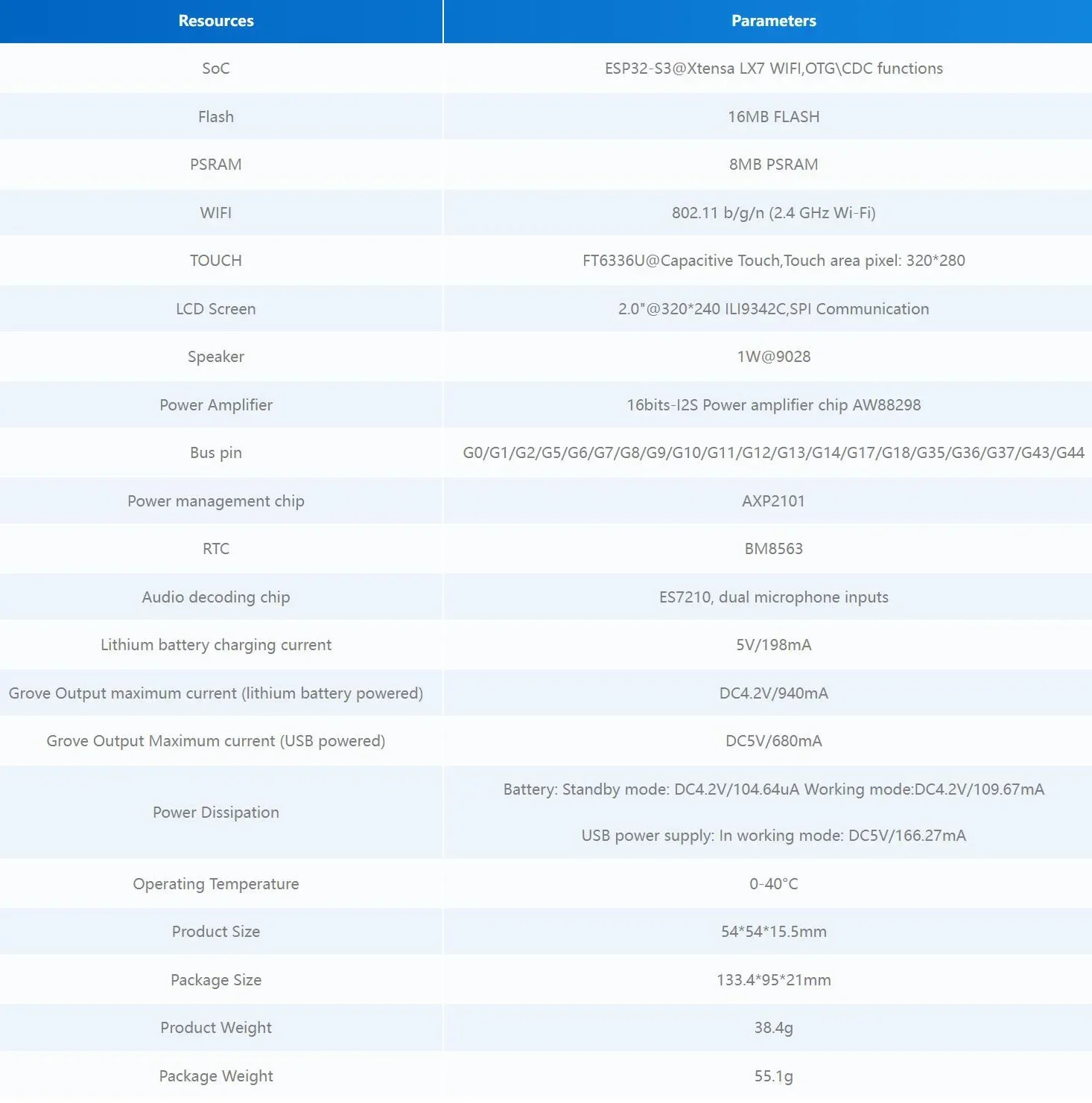

Specification

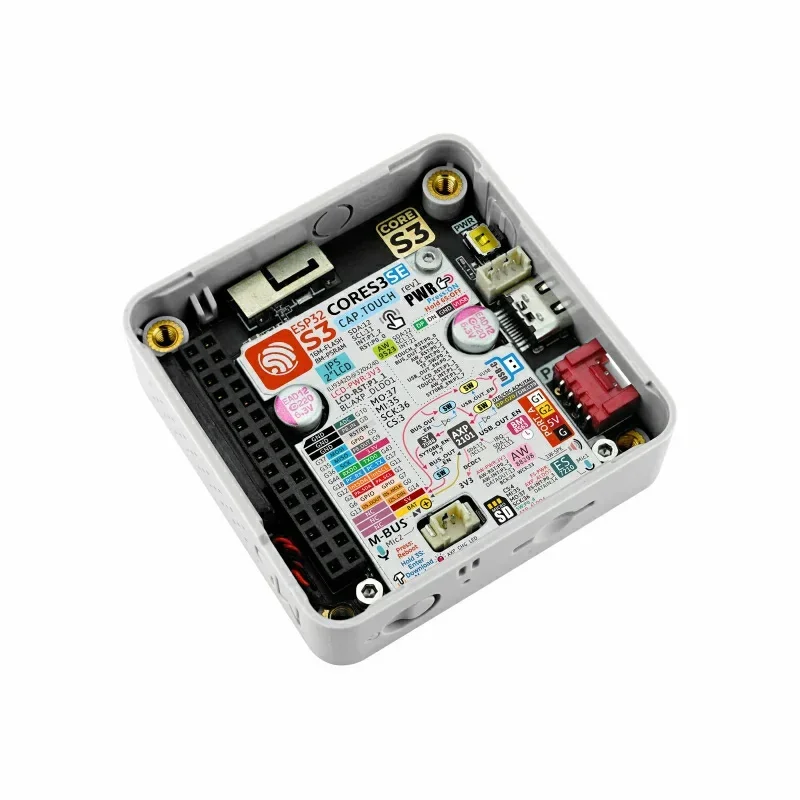

Product details

M5CoreS3 M-BUS Schematic diagram

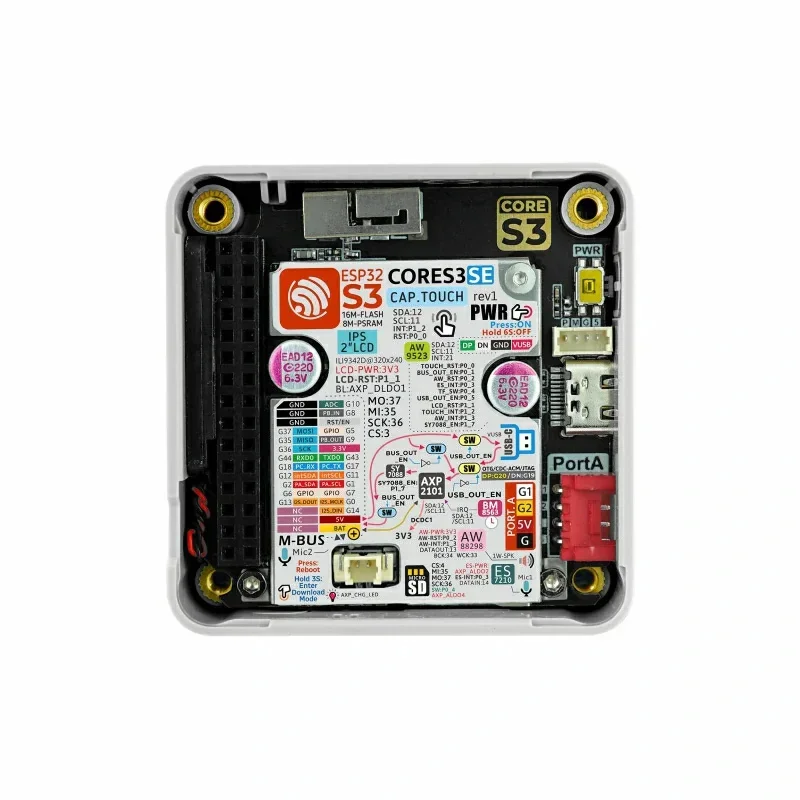

Core series host pin mapping comparison

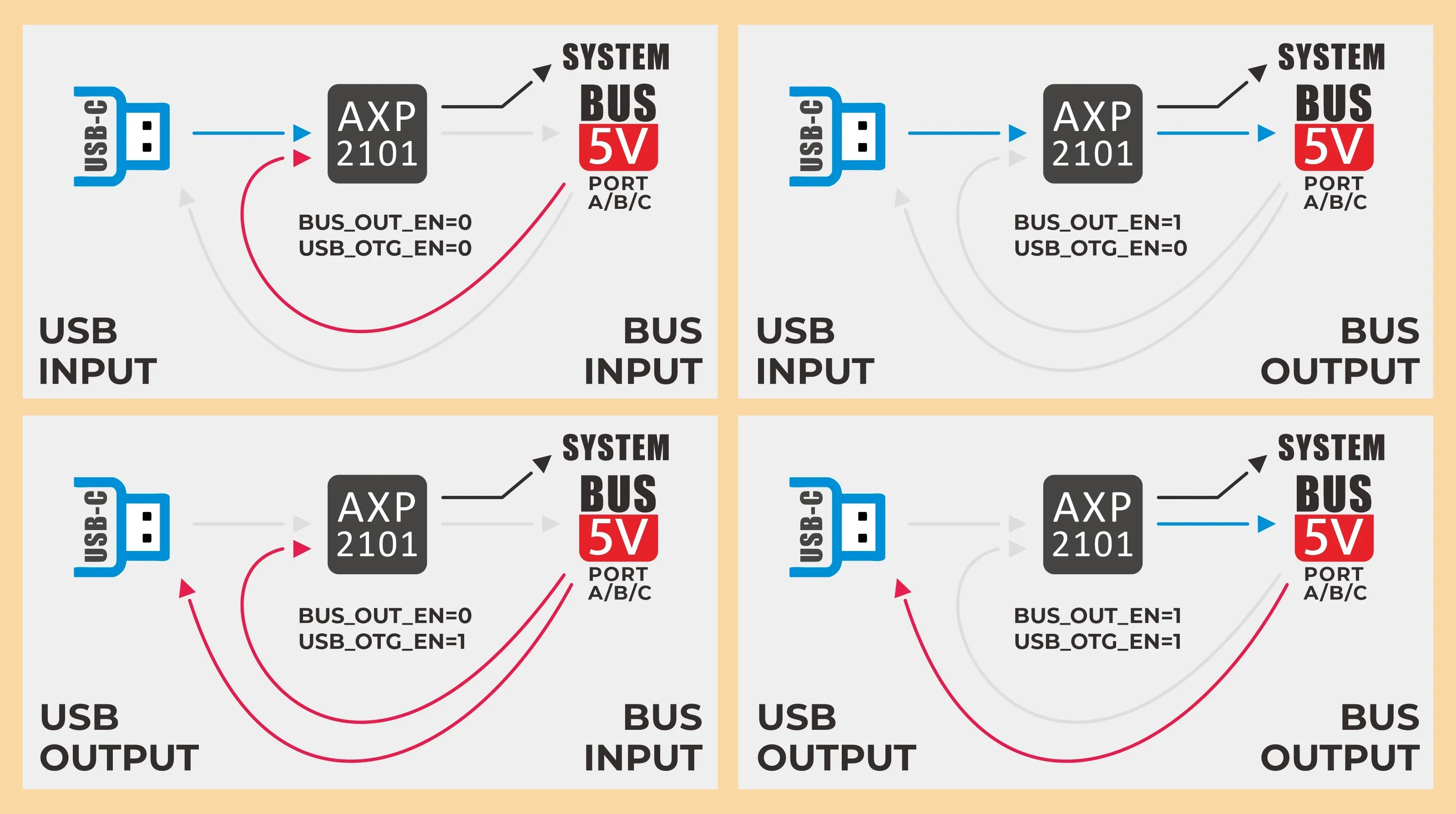

Power Management

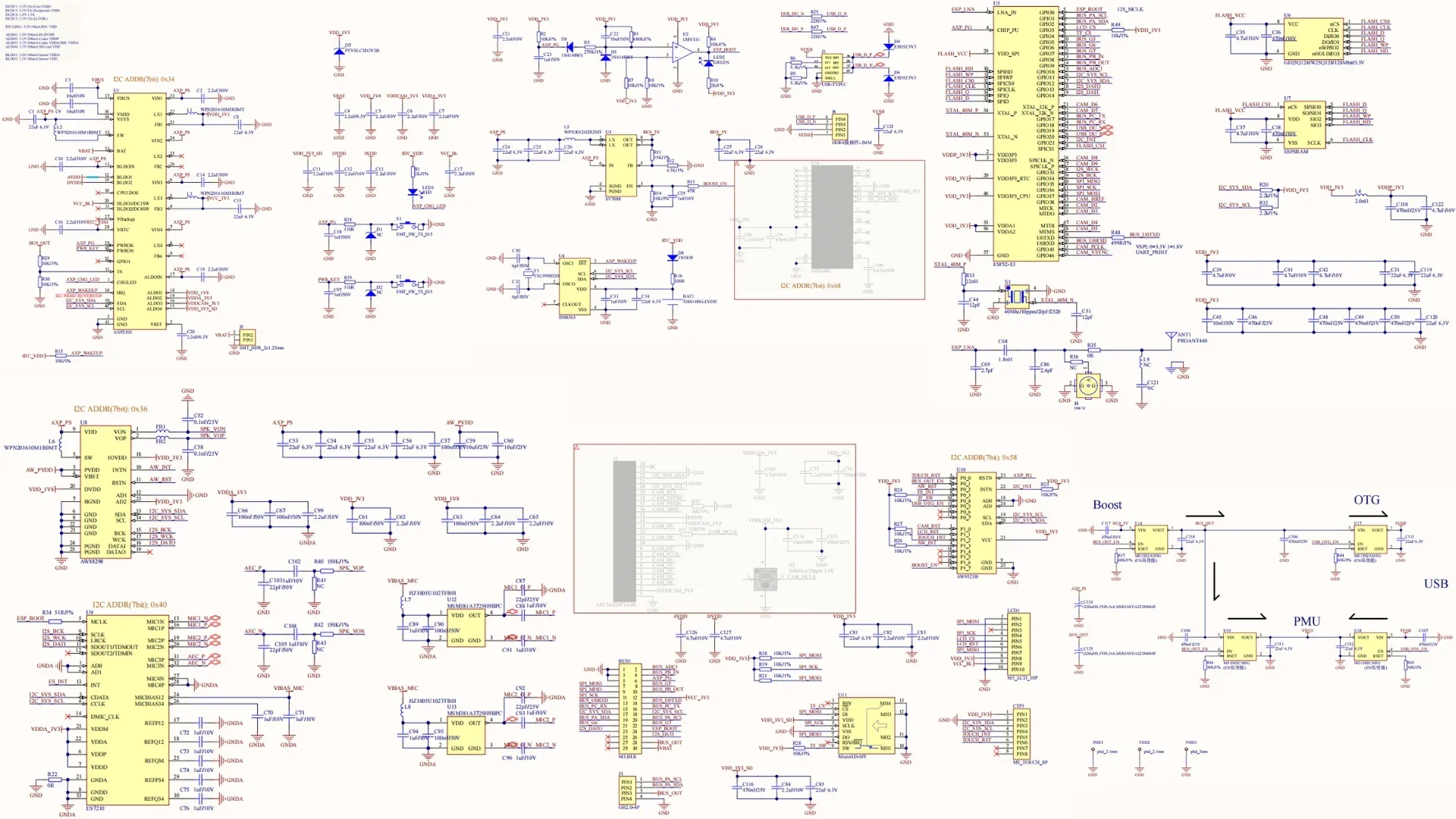

Schematic

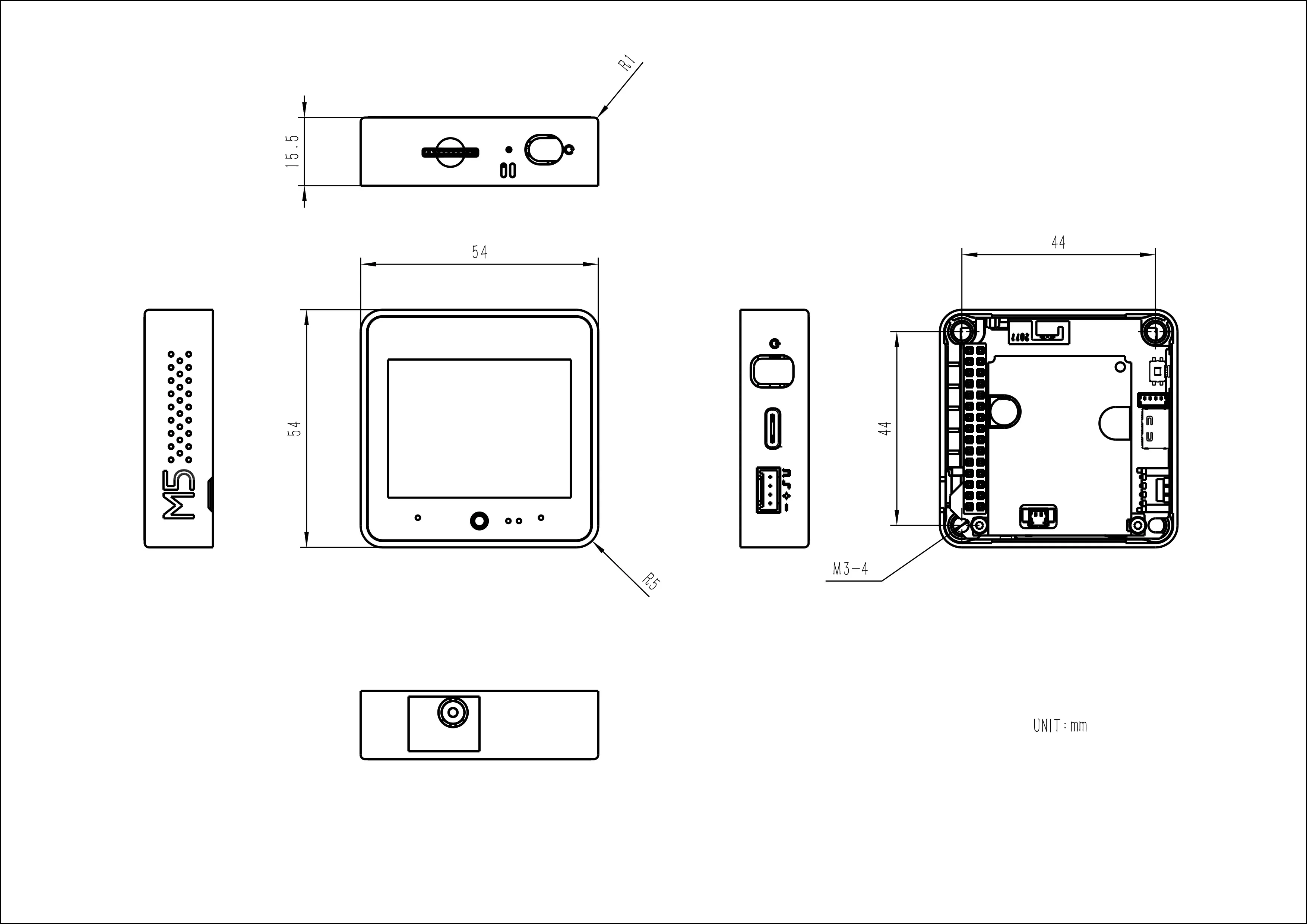

Module Size

Kindly Remind

Download Mode
Before downloading the program, please be sure to press and hold the reset button 3S (green light) to enter the download mode, otherwise the download will fail!

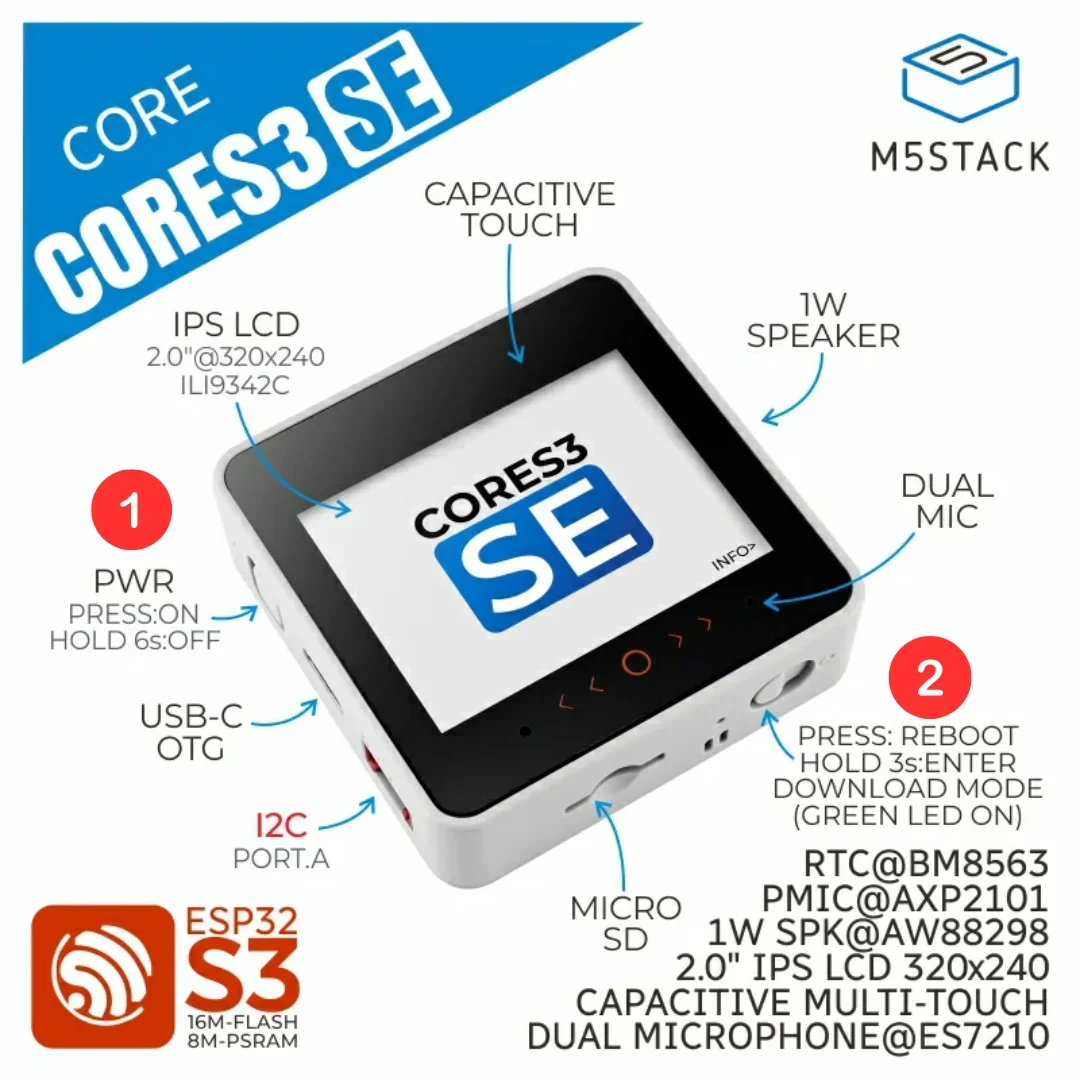

On-off Operation
Power on and off operation:
Power on: Click the left power button①
shut down: Long press the left power button① for 6 seconds
reset: Click the bottom RST button②
Download mode: Long press reset button② 3S (green light)

For Arduino NOTE
There are hardware differences between M5CoreS3 SE and M5CoreS3. The codes in the library file involving camera, proximity sensor, IMU, and magnetic sensor are not applicable to M5CoreS3 SE.
