The Story

Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input and HID Signal Output for Device Control

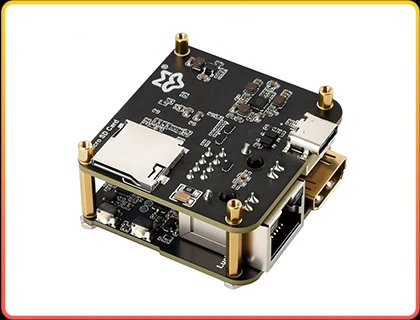

Luckfox PicoKVM

Features

The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.

Key Features:

Onboard HDMI input interface: recognized by PC as a display for video capture
Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
Onboard 100Mbps Ethernet port: for video and control signal transmission
1.54inch touch display: for displaying IP address, connection status, and system operating status
TF card slot: supports storage expansion
I/O expansion interface: for host power ON/OFF control

Specifications

Product	Luckfox PicoKVM
Processor	RV1106G3
Core	1 × [email protected]
Memory	256M DDR3
Storage	8G eMMC
System	PicoKVM
Resolution	1080P@60fps
Video Encoding	H264
Video Latency	80ms ~ 200ms
Audio Transmission	√
UEFI / BIOS Support	√
USB Keyboard & Mouse Emulation	√
USB Storage Emulation	√
UEFI / BIOS Scope	√
Wake-on-LAN (WOL)	√
Web Terminal	√
Custom Script	√
Serial Terminal	1-Ch
Storage Expansion	TF card
Power Control	GPIO control
Ethernet	100Mbps

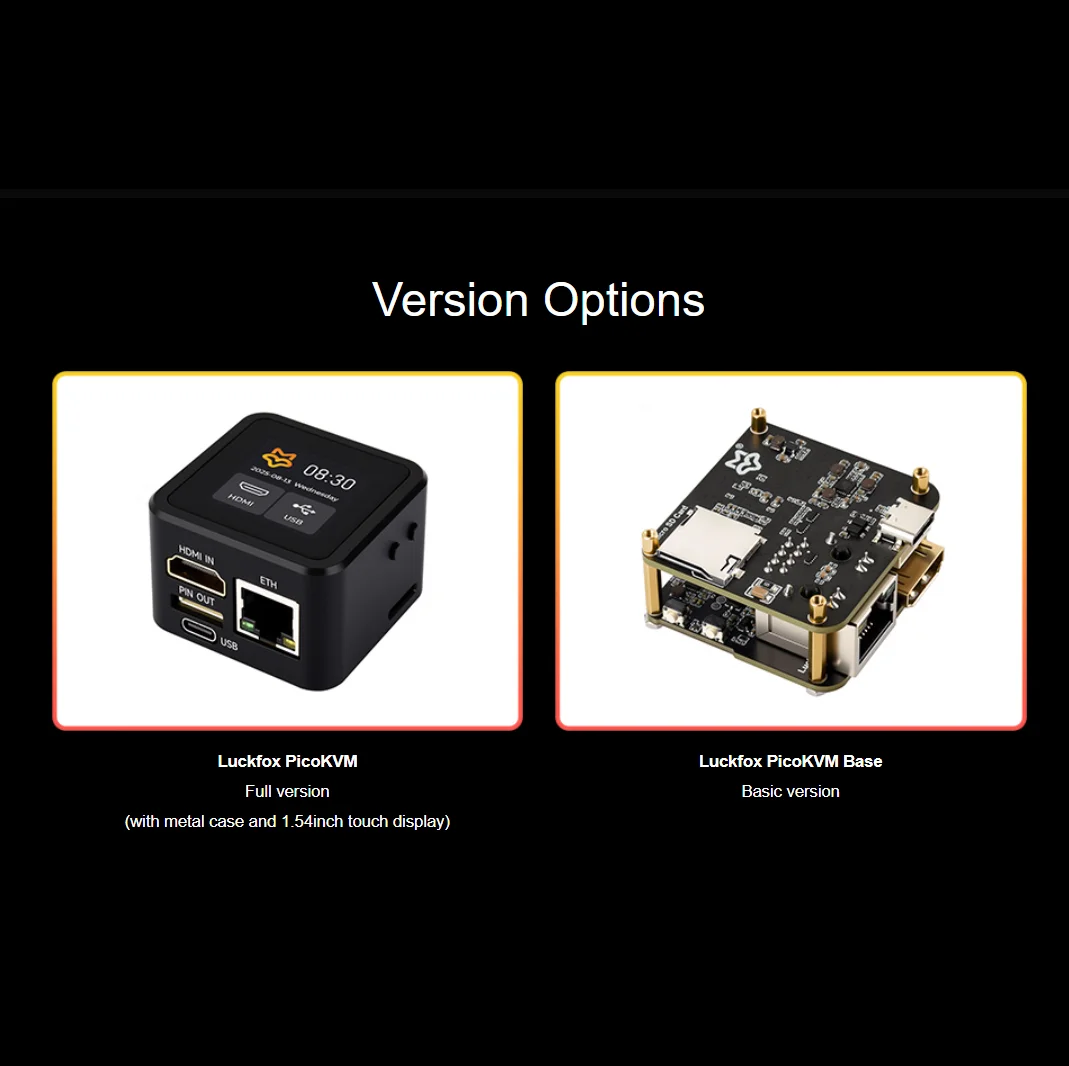

LCD Display	1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full version)
Power Input	Type-C
Outline Dimension	Luckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm)
Outline Dimension	Luckfox PicoKVM Base: 44.00 × 42.00 × 23.60 (mm)

Comparison with Commercial Remote Control Software

* for reference only, the above host boards are NOT included.

Function Demonstrations

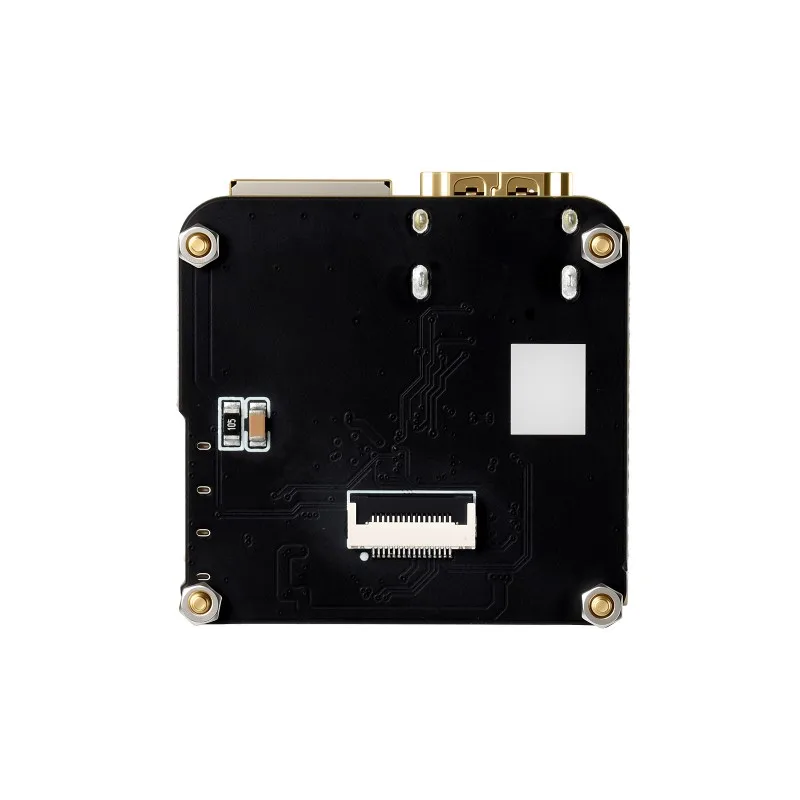

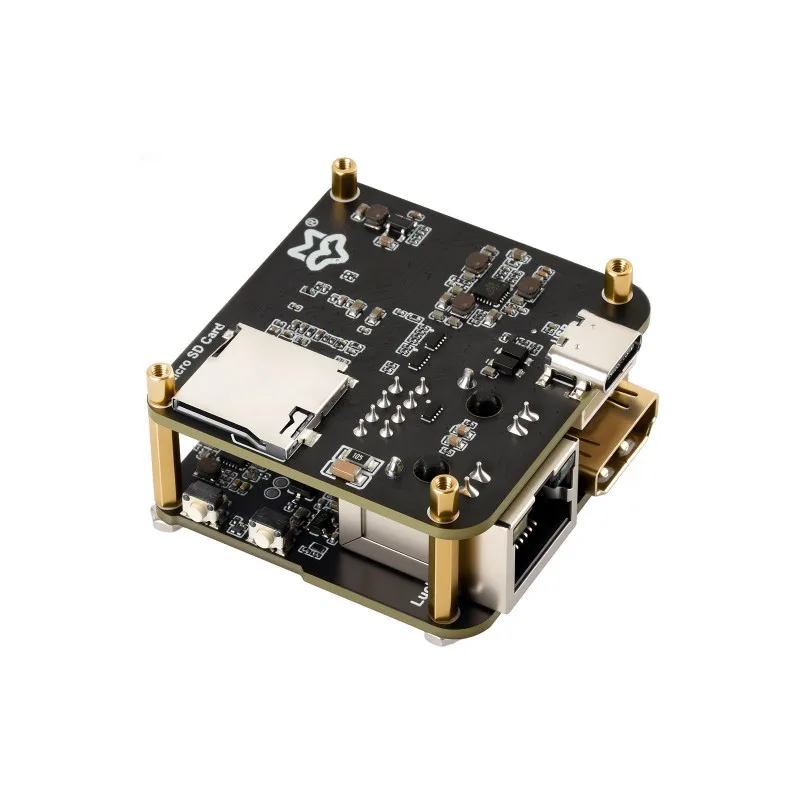

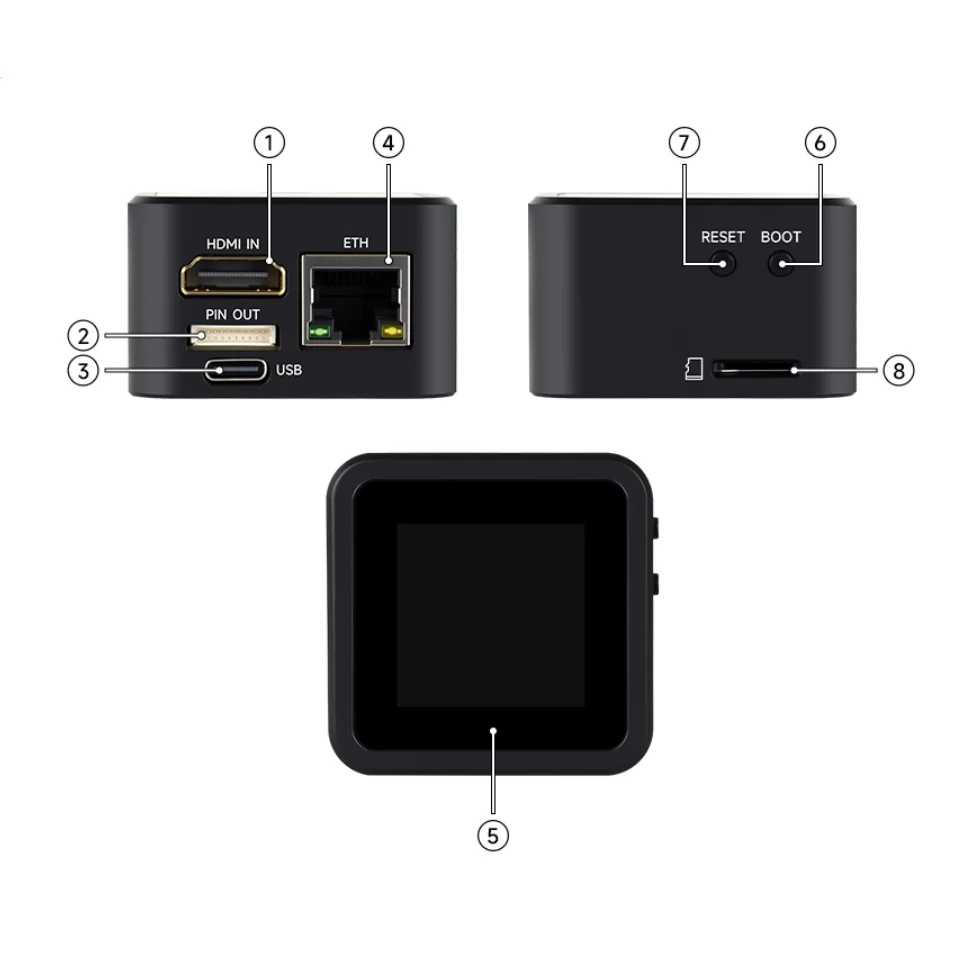

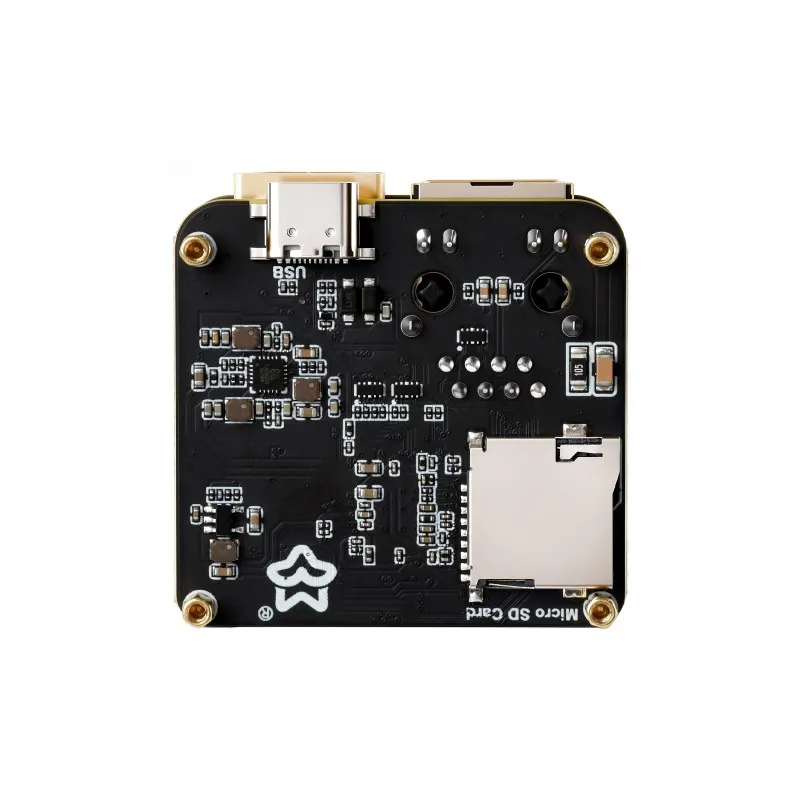

What's On Board

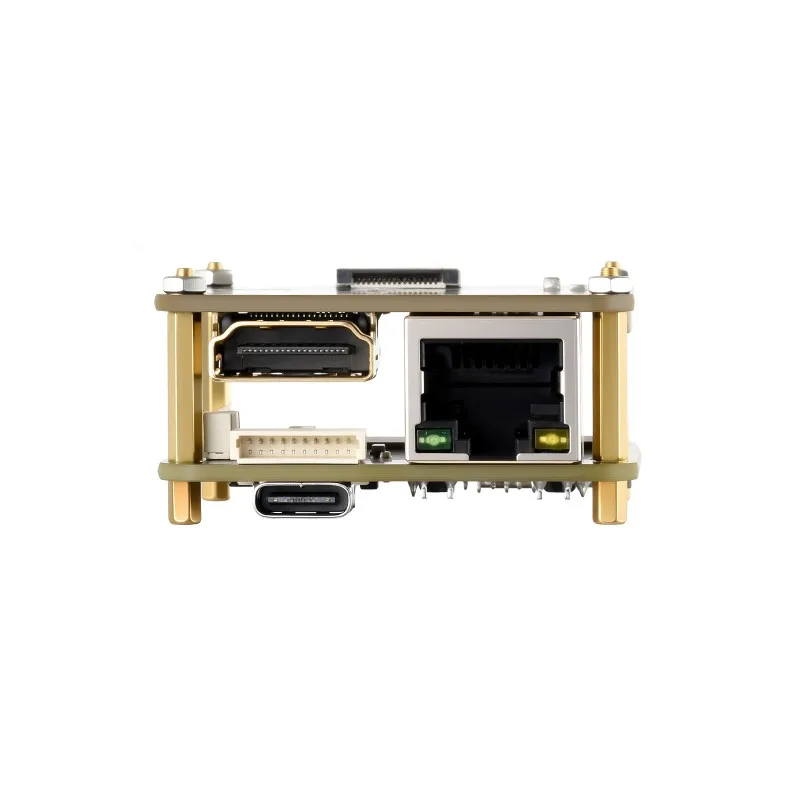

HDMI IN interface
for connecting to the HDMI output interface of the controlled host
I/O expansion interface
USB Type-C port
for power supply, simulating HID/UMS devices, and programming
10/100Mbps RJ45 Ethernet port with indicator
1.54inch touch LCD
BOOT button
press it when powering on or resetting to enter download mode
RESET button
TF card slot

Pin definition

Outline Dimensions

Luckfox PicoKVM

Luckfox PicoKVM Base

Resources & Services

Wiki: https://wiki.luckfox.com/Luckfox-PicoKVM

Package Content

Weight: 0.117 kg

Luckfox PicoKVM

Luckfox PicoKVM x1
