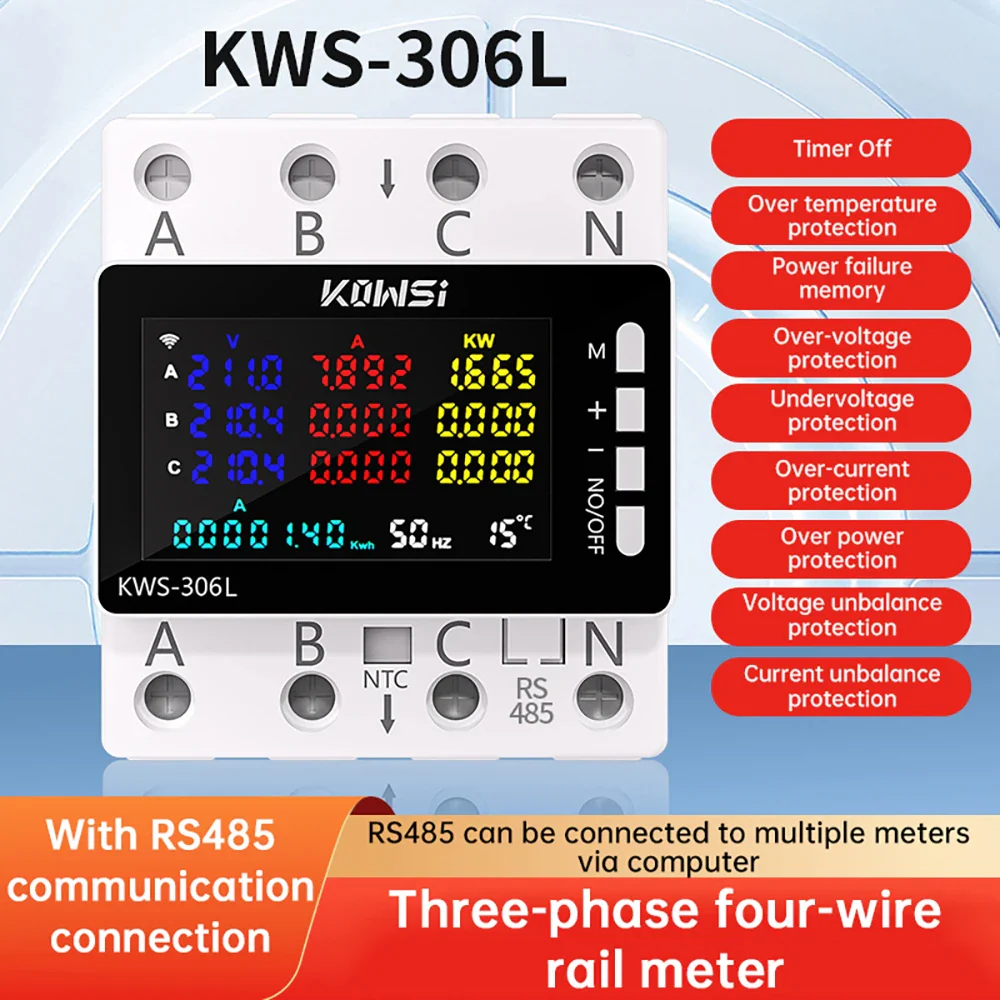

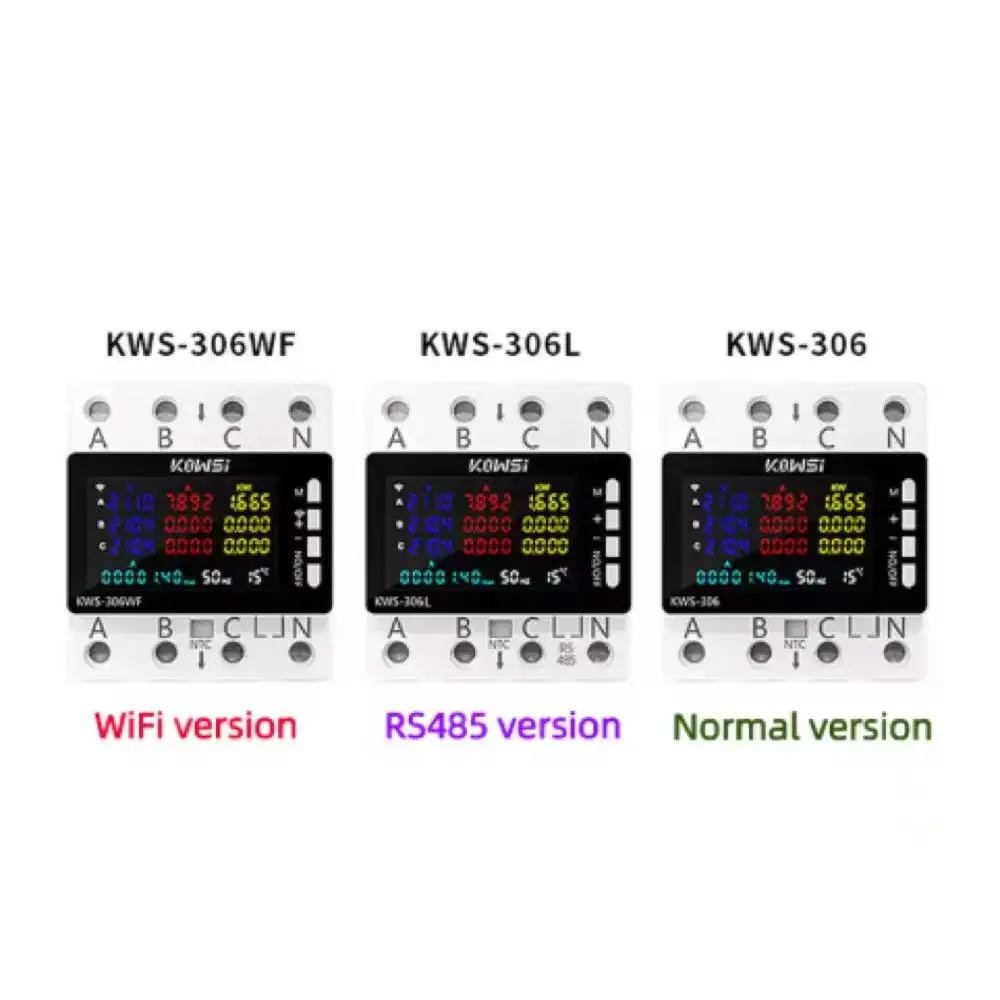

KWS-306 Voltmeter Ammeter Power Meter AC 85-290V 80A 3-phase 4-wire DIN-Rail Meter Power Failure Protection Function

Product features:

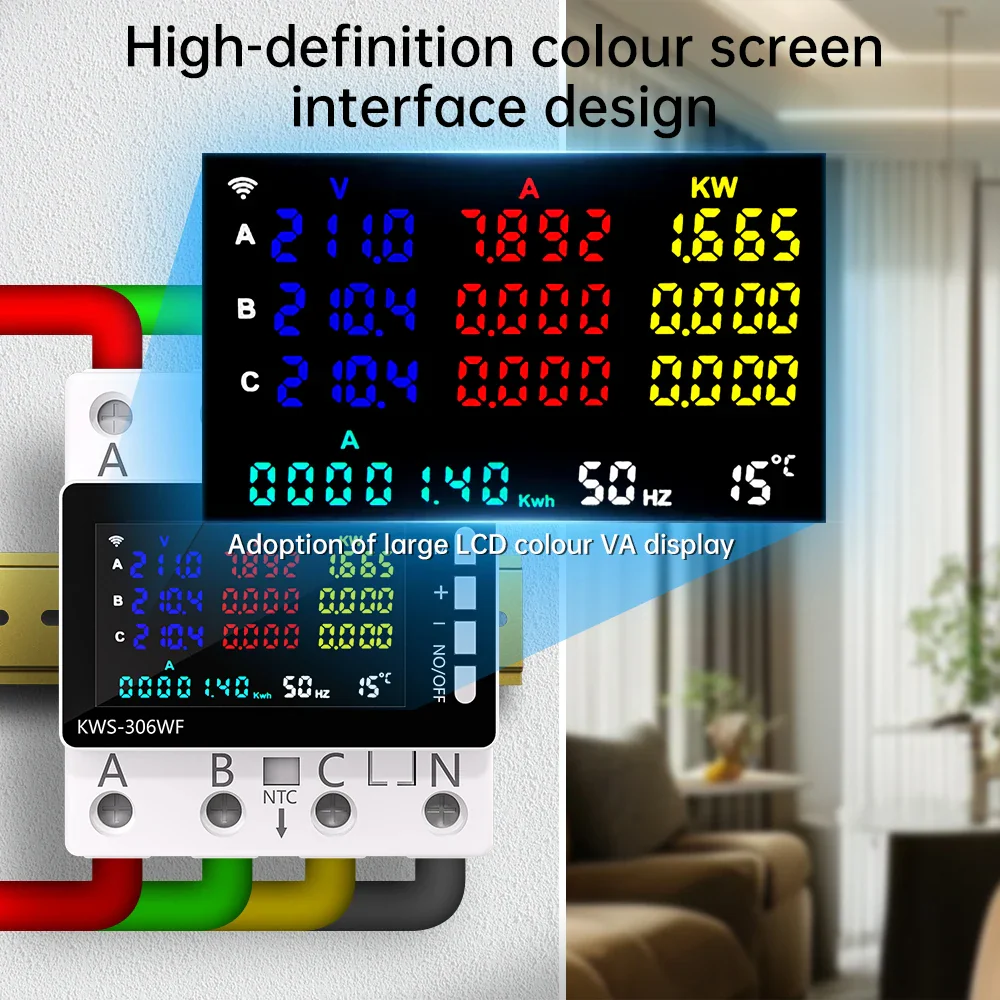

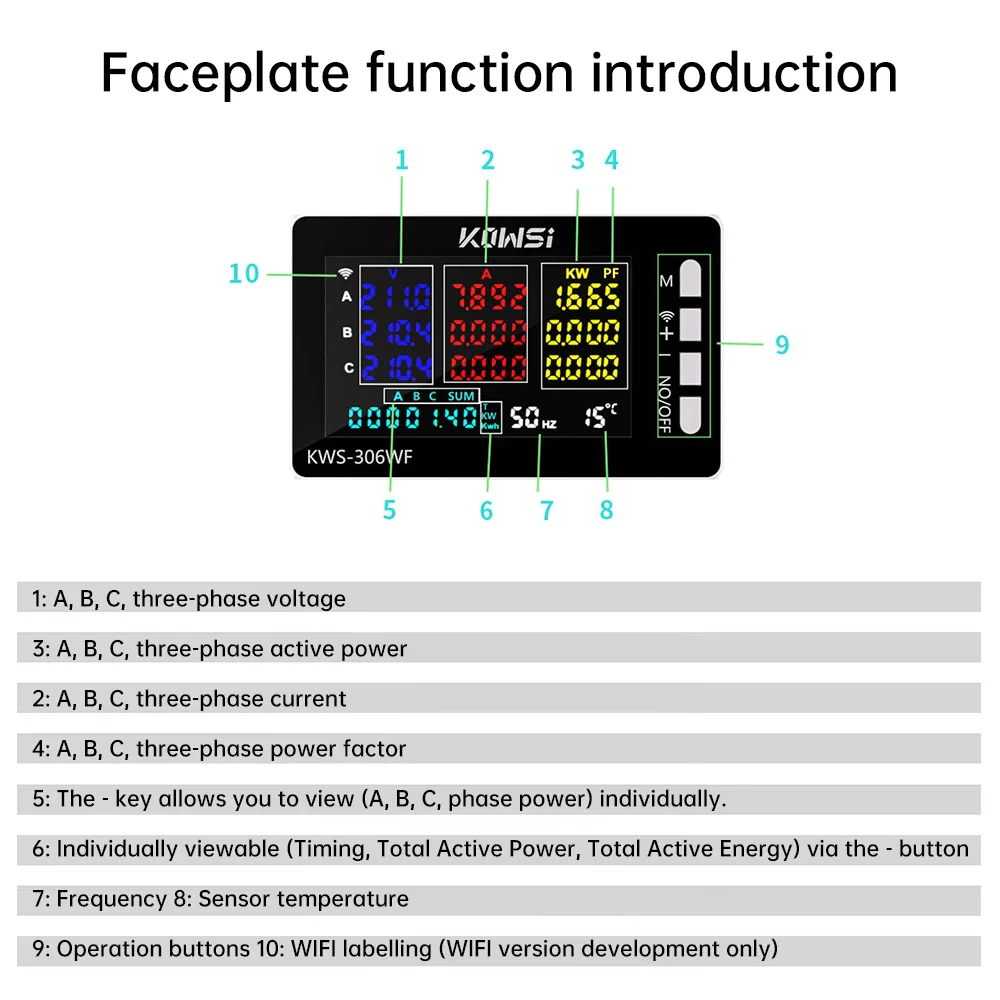

1.HD colour screen interface design: using large LCD colour VA display, bringing a different colour visual experience

2. Standard rail slot mounting design: 35mm standard rail mounting, no screws, snap fastening, convenient and easy to install.

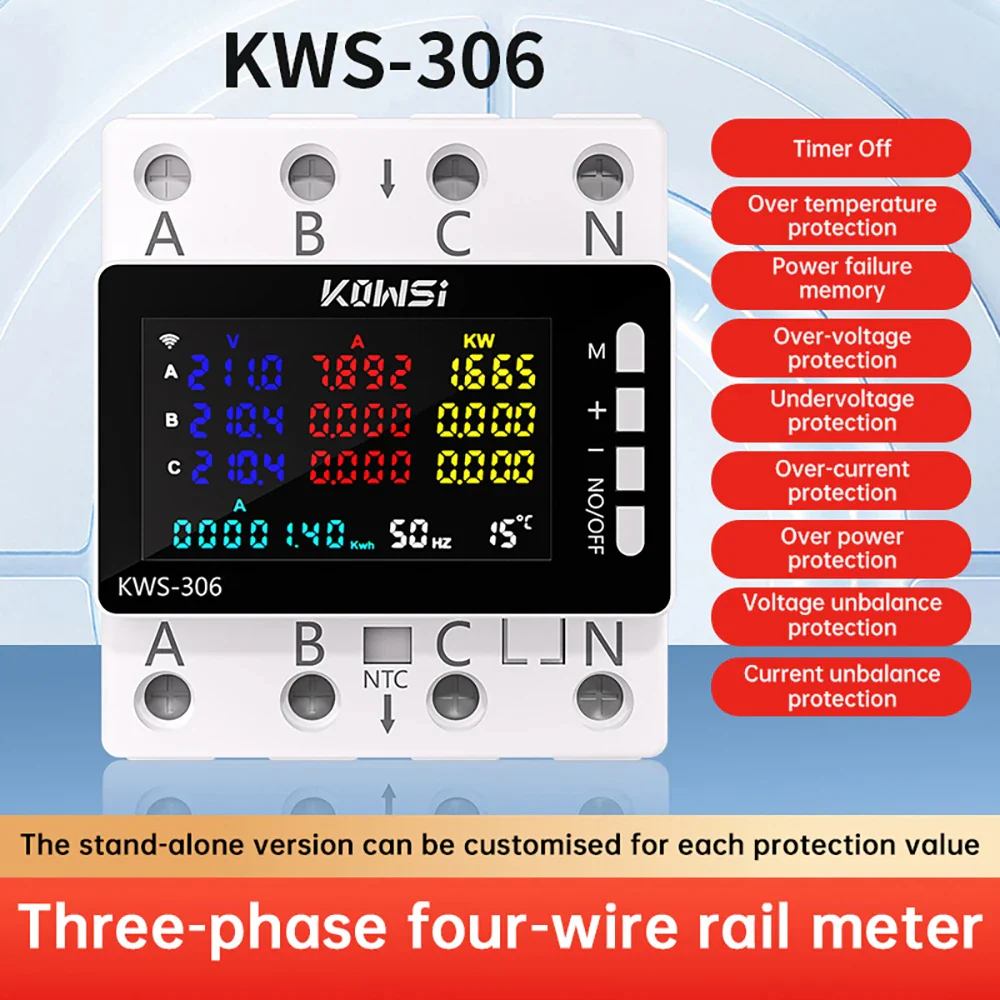

3. 6 power failure protection functions: over-temperature protection, over/under voltage protection, over-current protection, over-power protection, voltage imbalance protection, current imbalance protection.

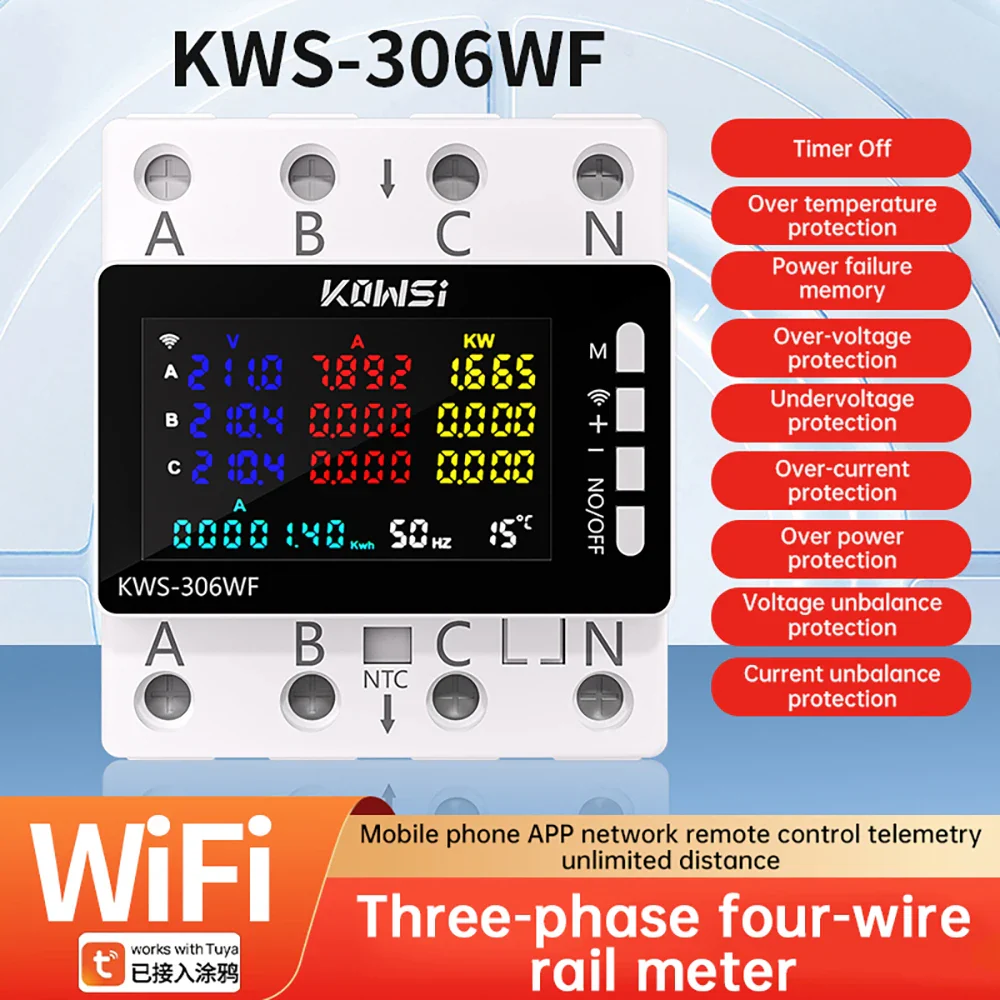

4. One mobile phone controls multiple devices at the same time: supports one mobile phone to control multiple devices, and also supports multiple mobile phones to control one device.

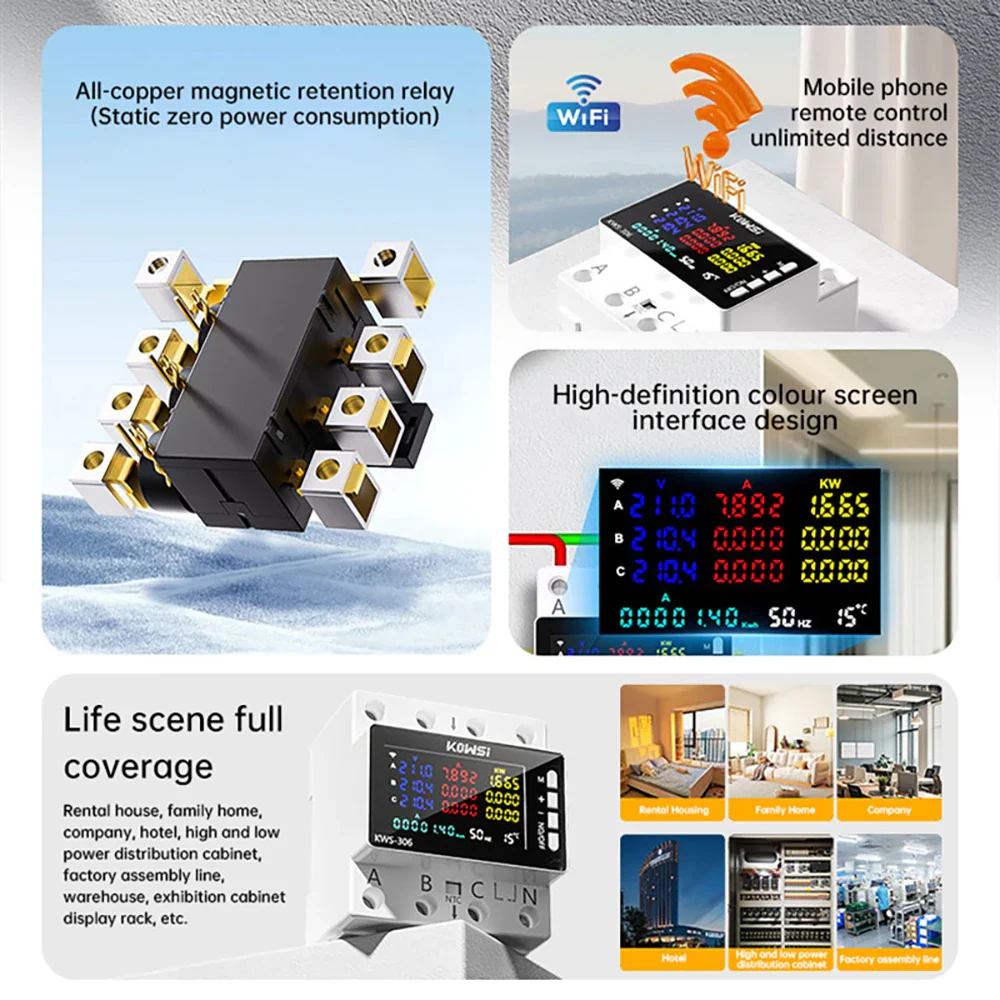

5. Applicable to different scenes: rental housing, family home, companies, hotels, high and low power distribution cabinets, factory assembly lines, warehouses and other fields.



Product parameters:

Voltage range: AC 85-290V

Current range: 0-80A

Power range: 0-23KW

Timing range: 0-999 hours (WIFI version of APP: 365 days)

Temperature range: -20~150 ℃

Frequency range: 50-60HZ

Power factor: 0.00-1.00PF

Product size: 86.5*74*65mm

Display Size: 55*34mm

Rail mounting size: 35mm

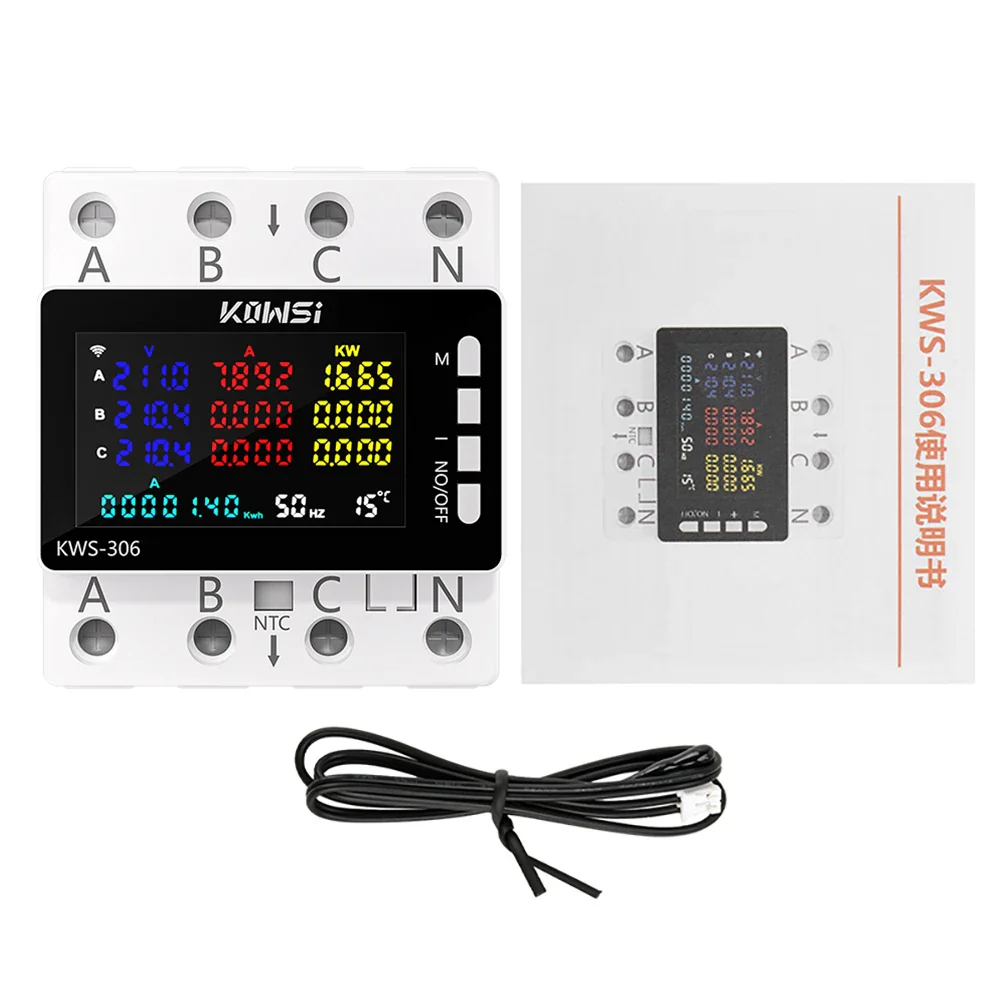

Packing list:

Multi-function meter*1

Instruction manual*1

NTC sensing wire*1
