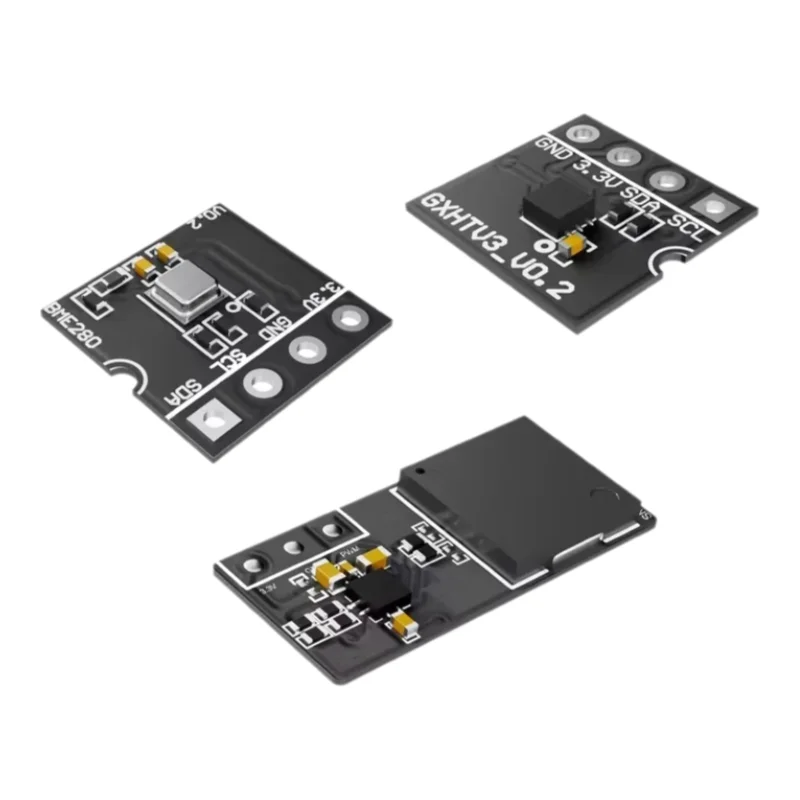

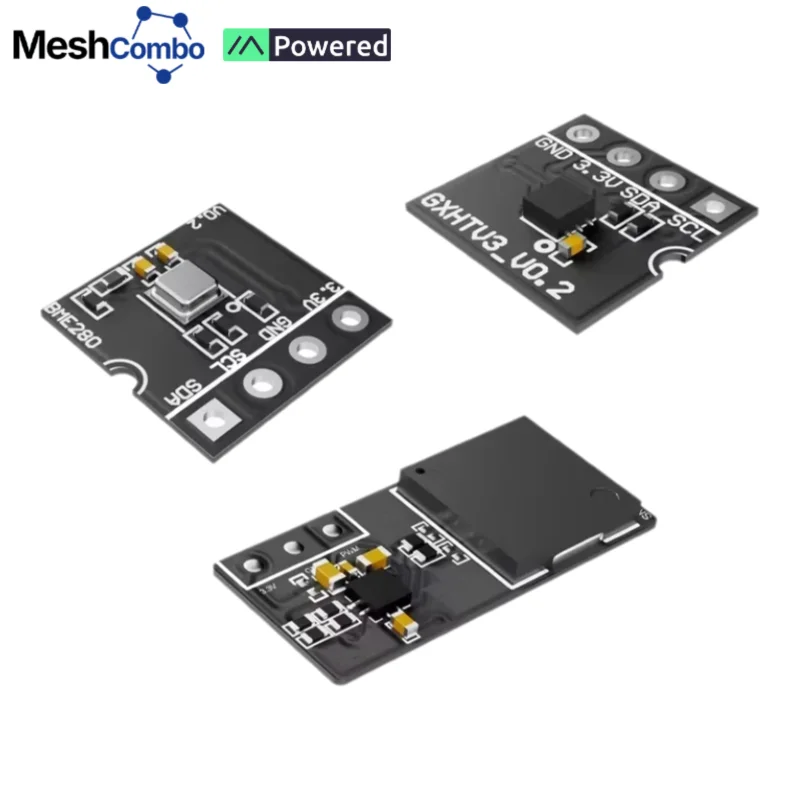

Heltec Temp/Humi Sensor GXHTV3 BME280 Buzzer Low-Power For Meshtastic WIFI Lora 32 V4 V3 Expansion Kit



Summary

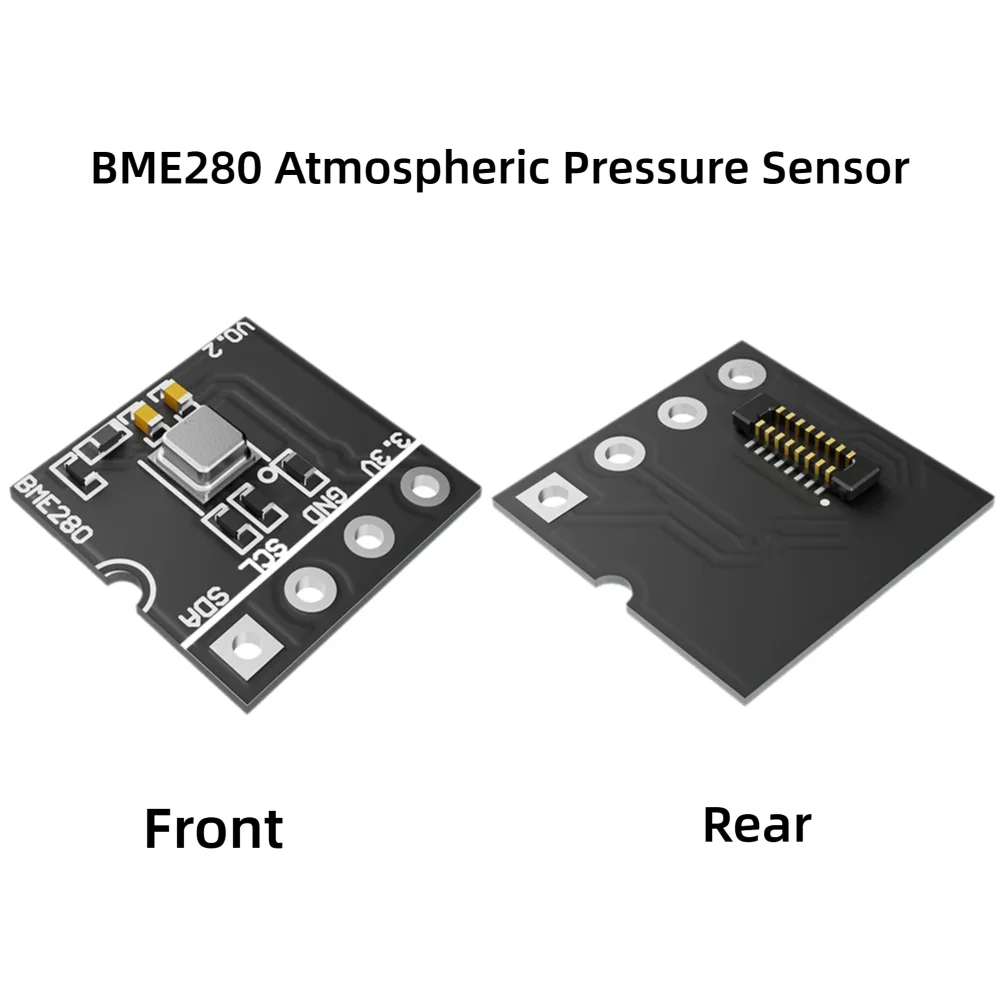

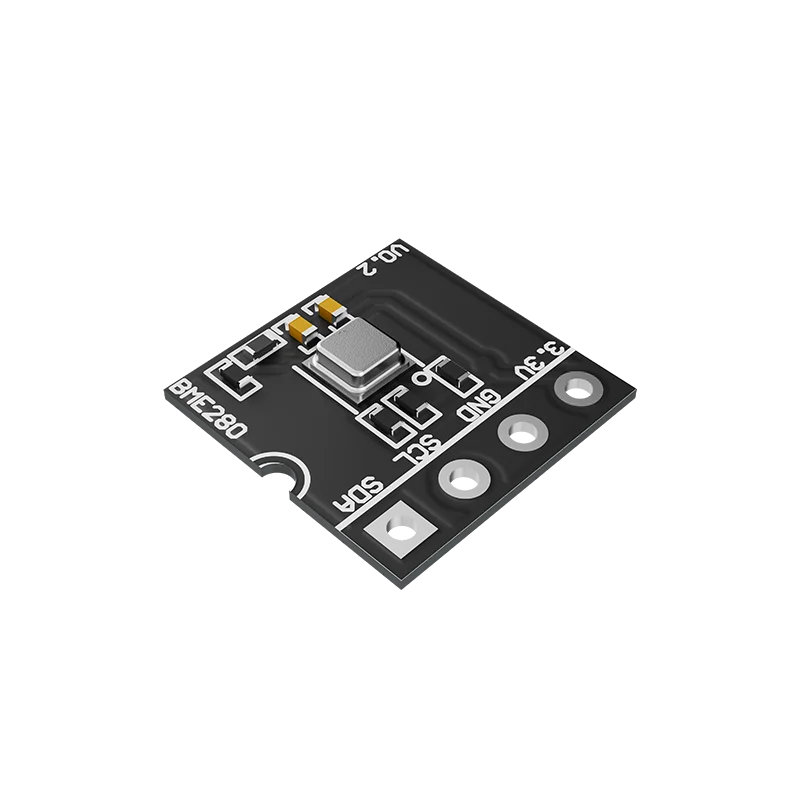

1.BME280 Atmospheric Pressure Sensor



The BME280 is a low-power digital environmental sensor that integrates functions for measuring

atmospheric pressure, temperature, and humidity. It communicates with the main controller via an I²C

interface. With its compact size and stable performance, it is widely used in weather stations, indoor

navigation, IoT devices, and wearable technology, providing reliable environmental data monitoring

solutions. We offer customized interfaces to facilitate your connectivity needs.

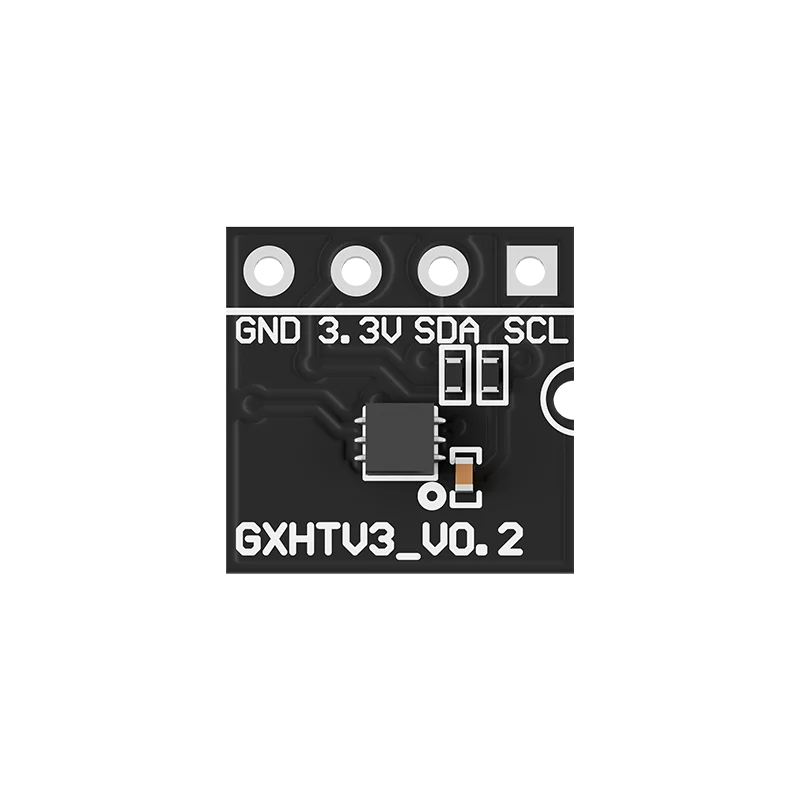

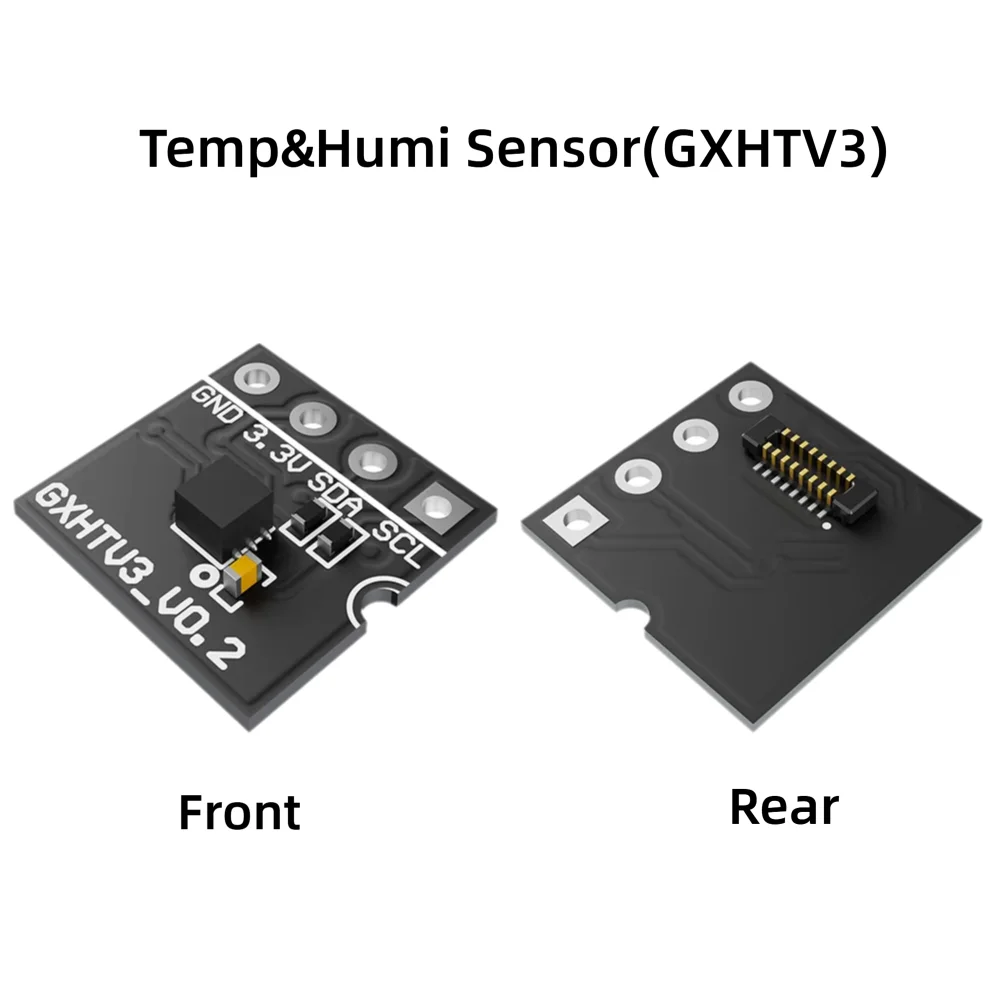

2.Temp&Humi Sensor(GXHTV3)



The Heltec QuickLink Series element includes a wide variety of sensors and actuators. With a unified

packaging size and interface, the stamp hole allows it to be directly soldered onto your board like most

modules, also it can be optionally equipped with a PH2.0 x 4 interface to make it compatible with the

Grove Socket.

The GXHTC3 is a digital humidity and temperature sensor designed especially for battery-driven high-

volume consumer electronics applications. This sensor is strictly designed to overcome conventional

limits for size, power consumption, and performance to price ratio in order to fulfill current and future

requirements.

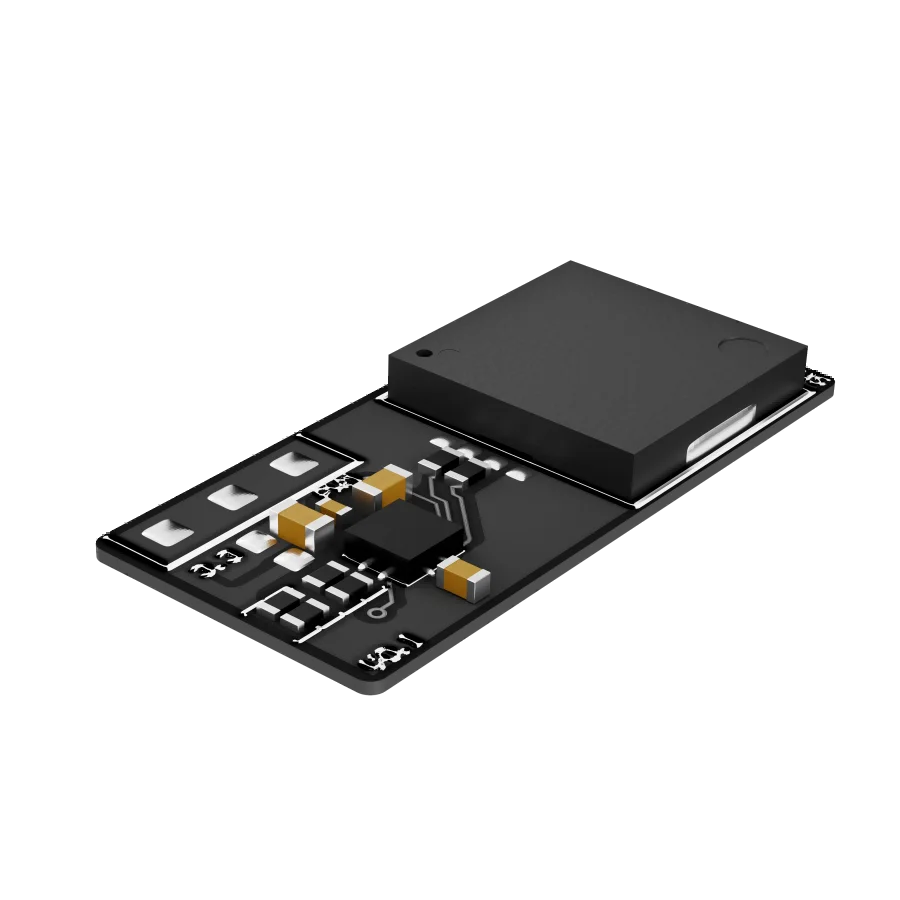

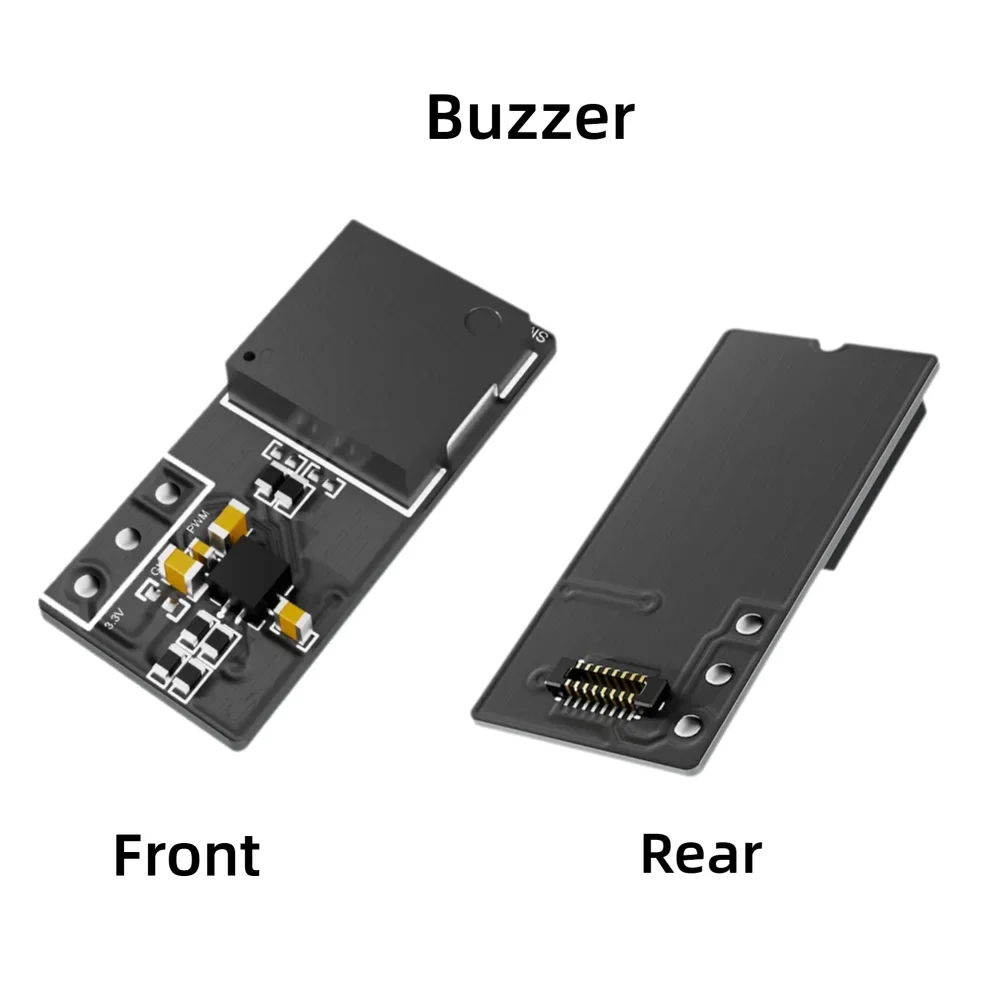

3.Buzzer

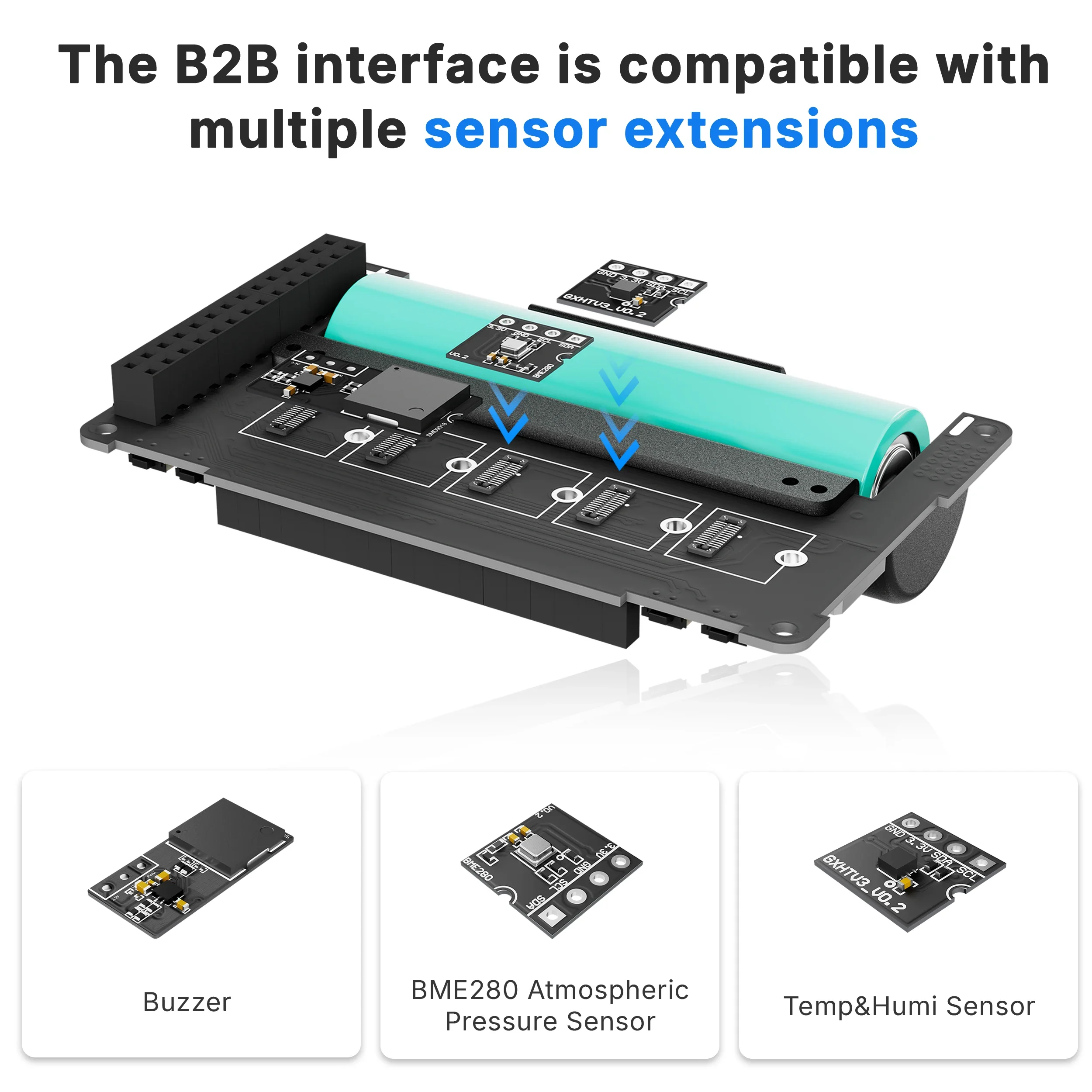

The buzzer compatible with WiFi LoRa 32 V4 can be directly installed on its expansion board by

selecting the B2B interface.



Main Features for Temp&Humi Sensor(GXHTV3)



●With unified packaging, stamp hole packaging (LGA) that can be directly soldered onto the circuit.

●Compatible with Grove socket through the PH2.0 x 4 interface.

●Typical accuracy: ± 3 %RH and ± 0.2 ° C



Dimension for Temp&Humi Sensor(GXHTV3)





Parameter for BME280 Atmospheric Pressure Sensor





Parameter for Temp&Humi Sensor(GXHTV3)





Parameter for  Buzzer





FAQ for Temp&Humi Sensor(GXHTV3)



1.How Can I use this Sensor with?



The sensor can be seamlessly integrated with the Sensor Hub Series by simply plugging it into the

board. This straightforward process allows for effortless connectivity and ease of use, allowing for

precise data collection and analysis.



2.May I inquire if the Sensor Hub Series supports the entire range of sensors?



The Sensor Hub Series is a set of devices that are designed to collect and process data from various

sensors. It is important to note that most of the Sensor Hub Series is supported, although some may

have specific requirements as indicated. This means that users can expect reliable and high-quality

performance from the majority of the devices in this series. However, it is recommended that users

consult the manufacturer’s documentation to ensure compatibility with their specific needs. By doing so,

users can maximize the functionality of the devices and ensure that they are able to meet their data

processing requirements.



3.May I inquire whether the item in question is impervious to water and dust?



The sensor in question is not equipped with water and dust-resistant properties. In order to attain such

capabilities, it would be necessary to employ the sensor within the protective enclosure of our Sensor

Hub Products.
