$48.56
DIY Geiger Counter Kit With Audible Alarm Miller Tube Nuclear Radiation Detector Board Easy To Use—
$48.56
The Story

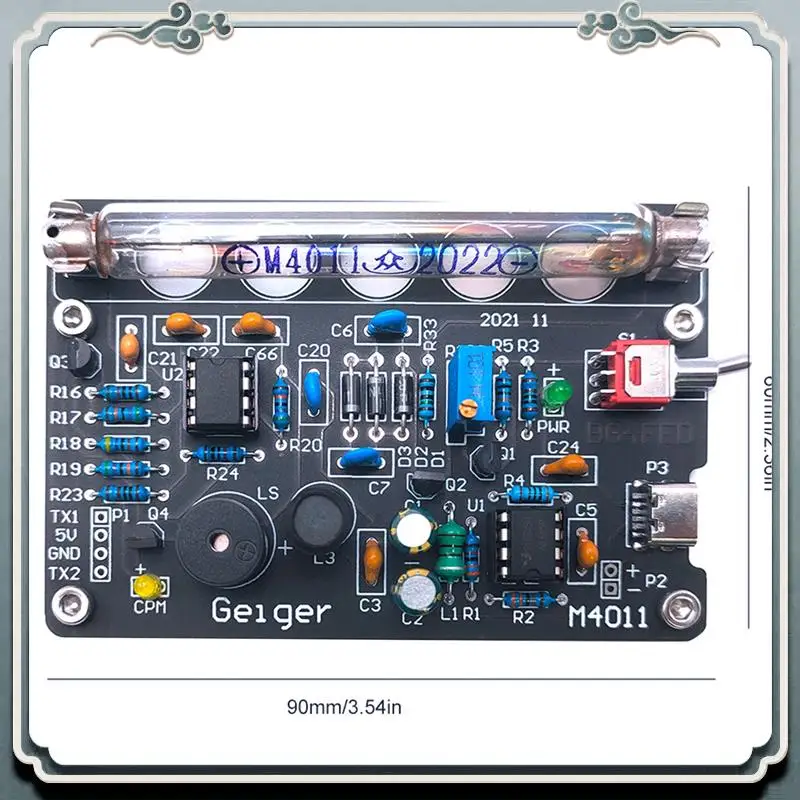

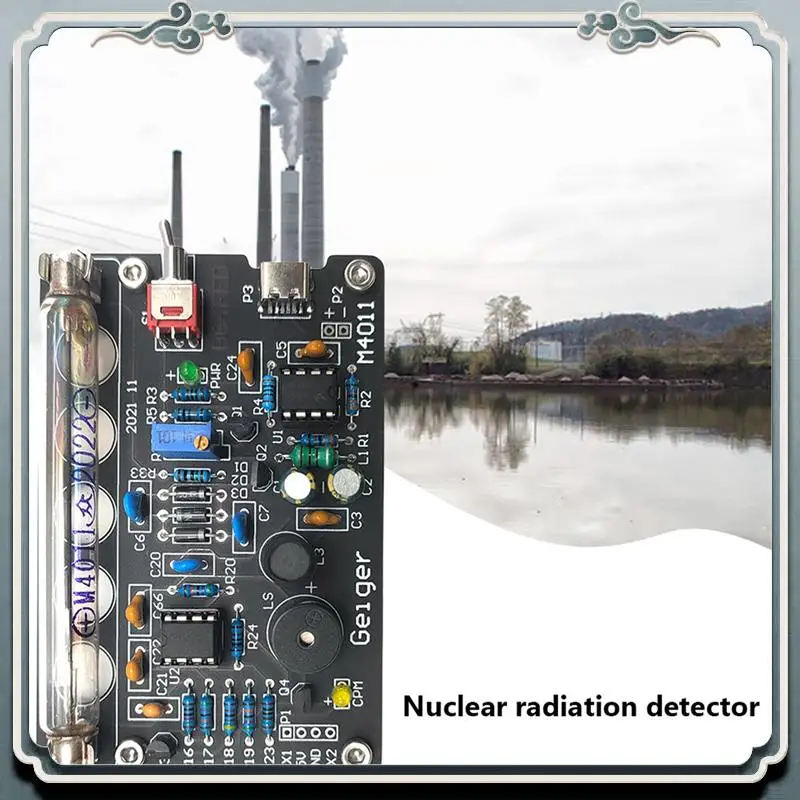

DIY Geiger Counter Kit With Audible Alarm Miller Tube Nuclear Radiation Detector Board Easy To Use
1. Enhanced Alerting System: The sound and light alarm of miller tube nuclear radiation detector board feature provides better reminders and enhances the overall user experience.The NE555 integrated circuit and peripheral electronic components form an oscillator , which transfers power to a diode multiplier circuit through inductive energy storage.The end of the multiplier circuit can output a high voltage of 400 volts for Geiger-Muller counters.
2. Wide Range of Applications: This assembled diy geiger counter kit can detect X-rays, gamma rays, and beta rays. It is also suitable for measuring radiation levels in marble, antiques, iodine-131, and various unknown minerals.
3. Compatibility with Most Geiger-Muller Tubes: Direct installation possible for M4011 tube. For other models, use jumper wires to connect (adjust the blue potentiometer until the multimeter displays a DC 170V by measuring the positive pole of the Geiger-Muller tube to the negative pole of the power supply with a digital multimeter).
4. External Monitor Support: Allows monitoring through an external screen or pointer-type instrument. The output signal of geiger counter circuit board kit is an interrupt output with a pulse waveform on the falling edge, effective at low voltage.
5. Stable Circuit Structure : The circuit structure of diy geiger counter circuit board parts ensures stability and reliability, resulting in an extremely low failure rate. It meets the daily requirements perfectly.
Geiger Tube Model: M4011
Type C interface power supply: 5V1A
Power consumption current: 20mA
Tube M4011 Specifications:
Diameter: 10±0.5mm
Total length: 90±2mm
Starting voltage: Less than 350V
Recommended working voltage: 380V
Minimum ping length: 80V
Maximum ping slope: 10%/80V
Extreme working voltage: 550V
Maximum background countrate: 25 counts/minute
Lifespan: Greater than 1x109 pulse
Detection:X-ray Beta Gamma rays
Colour:Photo Color
Material:plastic
Package Contents:
1 x Nuclear Radiation Detector Board Set (DIY Version)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
2. Wide Range of Applications: This assembled diy geiger counter kit can detect X-rays, gamma rays, and beta rays. It is also suitable for measuring radiation levels in marble, antiques, iodine-131, and various unknown minerals.
3. Compatibility with Most Geiger-Muller Tubes: Direct installation possible for M4011 tube. For other models, use jumper wires to connect (adjust the blue potentiometer until the multimeter displays a DC 170V by measuring the positive pole of the Geiger-Muller tube to the negative pole of the power supply with a digital multimeter).
4. External Monitor Support: Allows monitoring through an external screen or pointer-type instrument. The output signal of geiger counter circuit board kit is an interrupt output with a pulse waveform on the falling edge, effective at low voltage.
5. Stable Circuit Structure : The circuit structure of diy geiger counter circuit board parts ensures stability and reliability, resulting in an extremely low failure rate. It meets the daily requirements perfectly.
Geiger Tube Model: M4011
Type C interface power supply: 5V1A
Power consumption current: 20mA
Tube M4011 Specifications:
Diameter: 10±0.5mm
Total length: 90±2mm
Starting voltage: Less than 350V
Recommended working voltage: 380V
Minimum ping length: 80V
Maximum ping slope: 10%/80V
Extreme working voltage: 550V
Maximum background countrate: 25 counts/minute
Lifespan: Greater than 1x109 pulse
Detection:X-ray Beta Gamma rays
Colour:Photo Color
Material:plastic
Package Contents:
1 x Nuclear Radiation Detector Board Set (DIY Version)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
DIY Geiger Counter Kit With Audible Alarm Miller Tube Nuclear Radiation Detector Board Easy To Use
1. Enhanced Alerting System: The sound and light alarm of miller tube nuclear radiation detector board feature provides better reminders and enhances the overall user experience.The NE555 integrated circuit and peripheral electronic components form an oscillator , which transfers power to a diode multiplier circuit through inductive energy storage.The end of the multiplier circuit can output a high voltage of 400 volts for Geiger-Muller counters.
2. Wide Range of Applications: This assembled diy geiger counter kit can detect X-rays, gamma rays, and beta rays. It is also suitable for measuring radiation levels in marble, antiques, iodine-131, and various unknown minerals.
3. Compatibility with Most Geiger-Muller Tubes: Direct installation possible for M4011 tube. For other models, use jumper wires to connect (adjust the blue potentiometer until the multimeter displays a DC 170V by measuring the positive pole of the Geiger-Muller tube to the negative pole of the power supply with a digital multimeter).
4. External Monitor Support: Allows monitoring through an external screen or pointer-type instrument. The output signal of geiger counter circuit board kit is an interrupt output with a pulse waveform on the falling edge, effective at low voltage.
5. Stable Circuit Structure : The circuit structure of diy geiger counter circuit board parts ensures stability and reliability, resulting in an extremely low failure rate. It meets the daily requirements perfectly.
Geiger Tube Model: M4011
Type C interface power supply: 5V1A
Power consumption current: 20mA
Tube M4011 Specifications:
Diameter: 10±0.5mm
Total length: 90±2mm
Starting voltage: Less than 350V
Recommended working voltage: 380V
Minimum ping length: 80V
Maximum ping slope: 10%/80V
Extreme working voltage: 550V
Maximum background countrate: 25 counts/minute
Lifespan: Greater than 1x109 pulse
Detection:X-ray Beta Gamma rays
Colour:Photo Color
Material:plastic
Package Contents:
1 x Nuclear Radiation Detector Board Set (DIY Version)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
2. Wide Range of Applications: This assembled diy geiger counter kit can detect X-rays, gamma rays, and beta rays. It is also suitable for measuring radiation levels in marble, antiques, iodine-131, and various unknown minerals.
3. Compatibility with Most Geiger-Muller Tubes: Direct installation possible for M4011 tube. For other models, use jumper wires to connect (adjust the blue potentiometer until the multimeter displays a DC 170V by measuring the positive pole of the Geiger-Muller tube to the negative pole of the power supply with a digital multimeter).
4. External Monitor Support: Allows monitoring through an external screen or pointer-type instrument. The output signal of geiger counter circuit board kit is an interrupt output with a pulse waveform on the falling edge, effective at low voltage.
5. Stable Circuit Structure : The circuit structure of diy geiger counter circuit board parts ensures stability and reliability, resulting in an extremely low failure rate. It meets the daily requirements perfectly.
Geiger Tube Model: M4011
Type C interface power supply: 5V1A
Power consumption current: 20mA
Tube M4011 Specifications:
Diameter: 10±0.5mm
Total length: 90±2mm
Starting voltage: Less than 350V
Recommended working voltage: 380V
Minimum ping length: 80V
Maximum ping slope: 10%/80V
Extreme working voltage: 550V
Maximum background countrate: 25 counts/minute
Lifespan: Greater than 1x109 pulse
Detection:X-ray Beta Gamma rays
Colour:Photo Color
Material:plastic
Package Contents:
1 x Nuclear Radiation Detector Board Set (DIY Version)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
