The Story

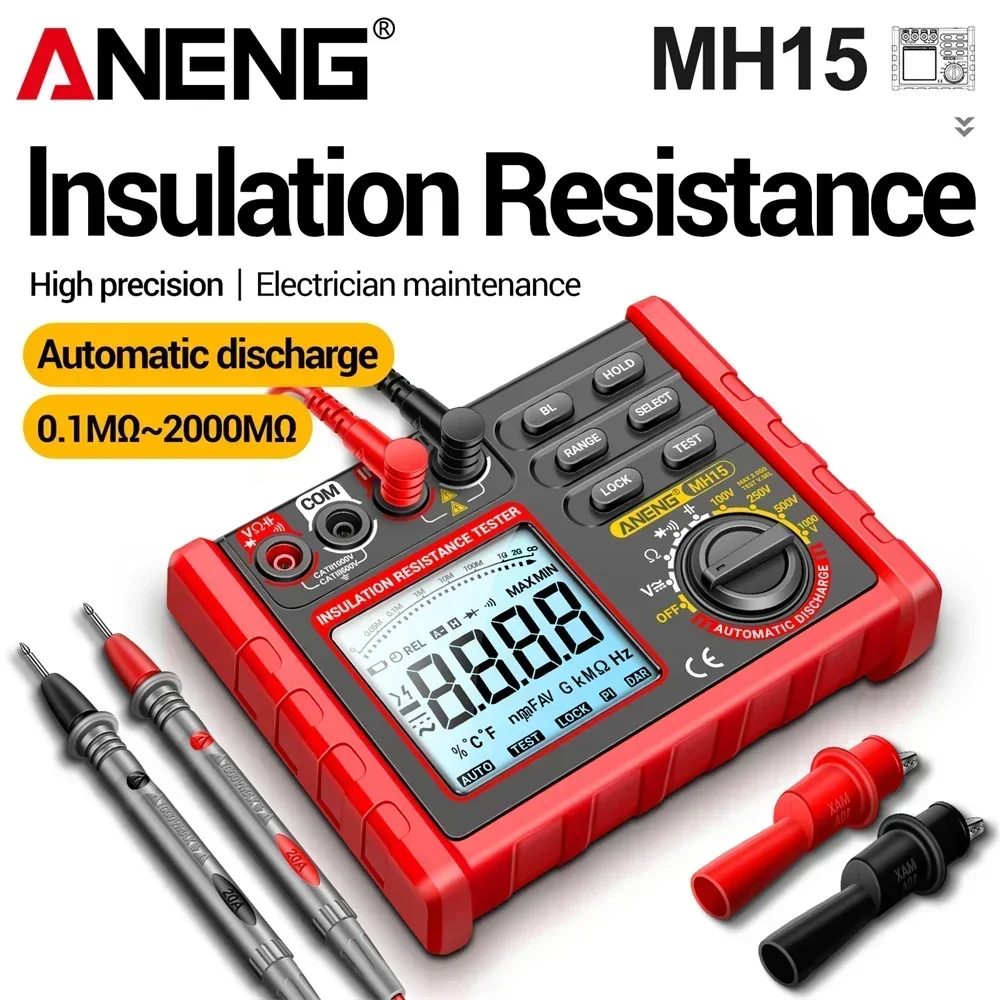

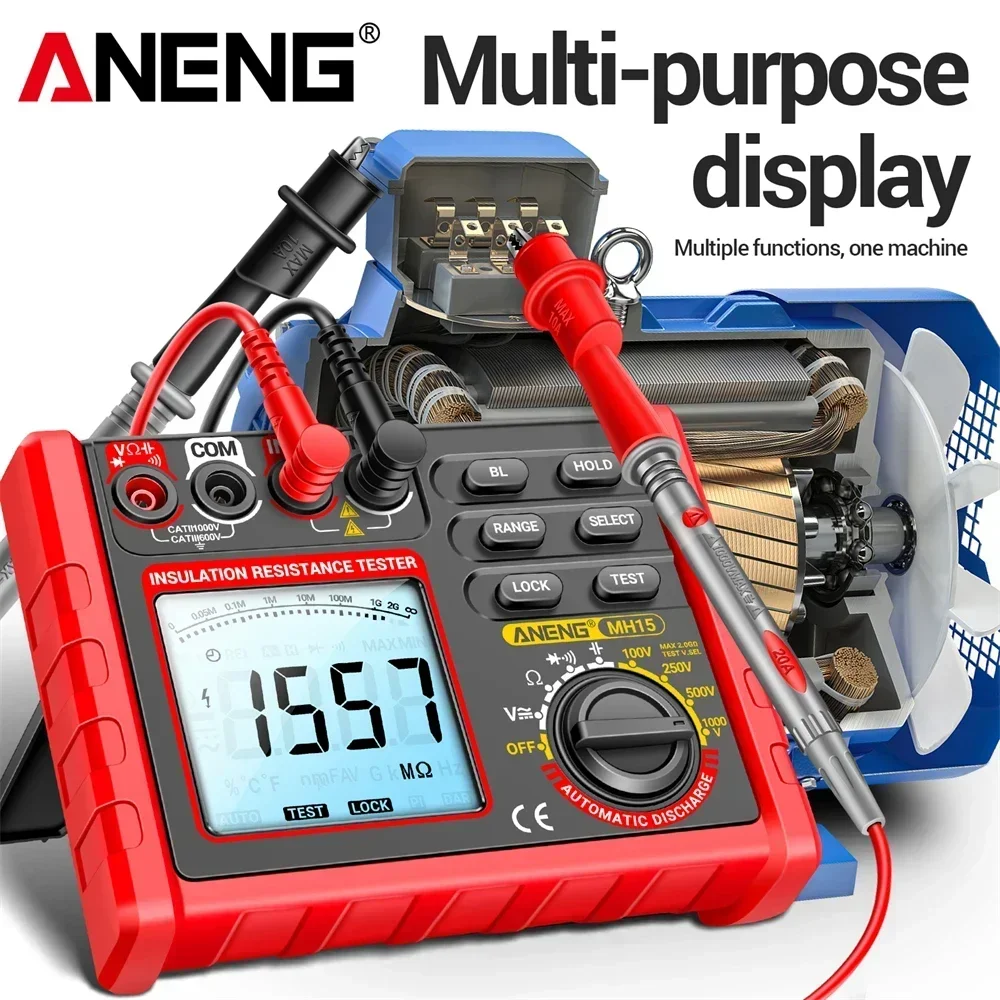

A NENG MH15 Digital Ohmmeter Insulation Resistance 6000 Count Resistor Testers Capacitor Test Megohmmeter High Voltage Tool

General:

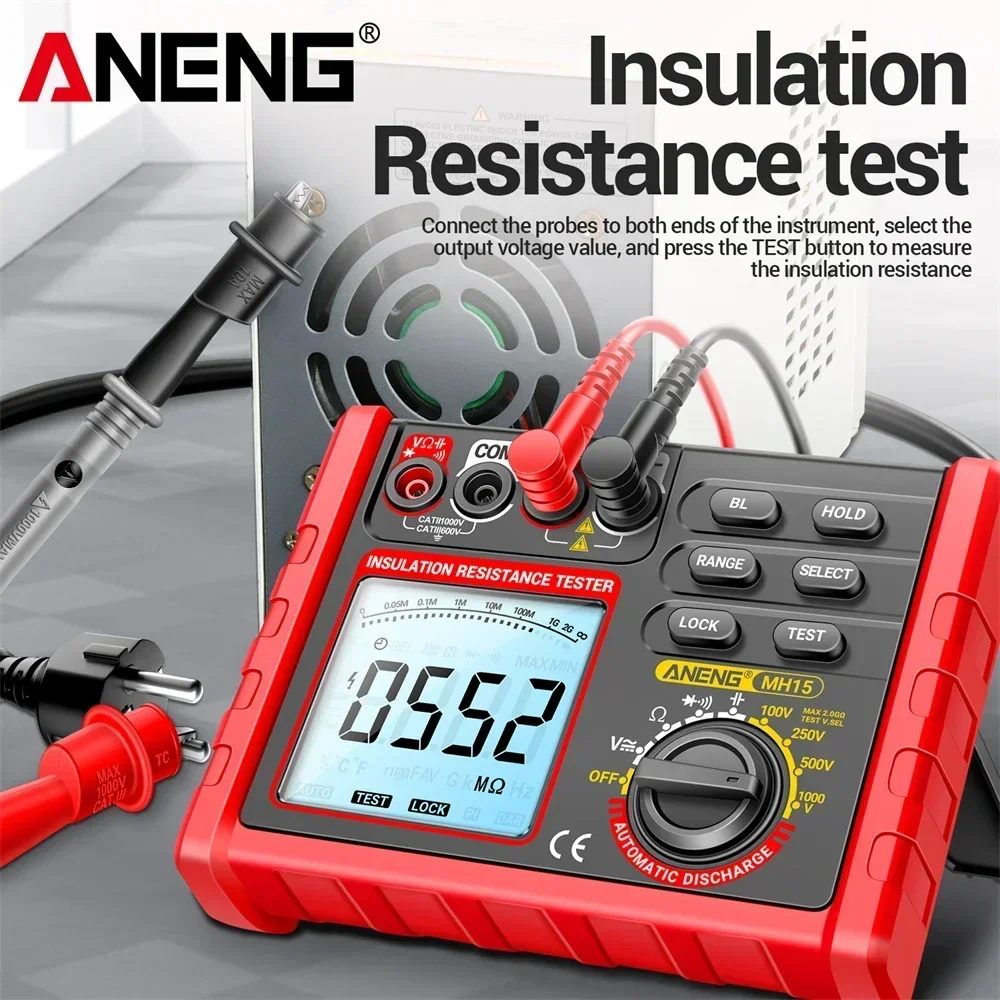

This instrument is a battery powered insulation resistance tester that can be used to measure DC voltage, AC voltage, resistance, on-off, diode and insulation resistance. When measuring insulation resistance, there are four test voltages to choose from: 100V, 250V, 500V and 1000V. This instrument has polarity indication, over range indication, data retention, automatic retention and other functions. It is simple to use and is a precision measuring instrument.

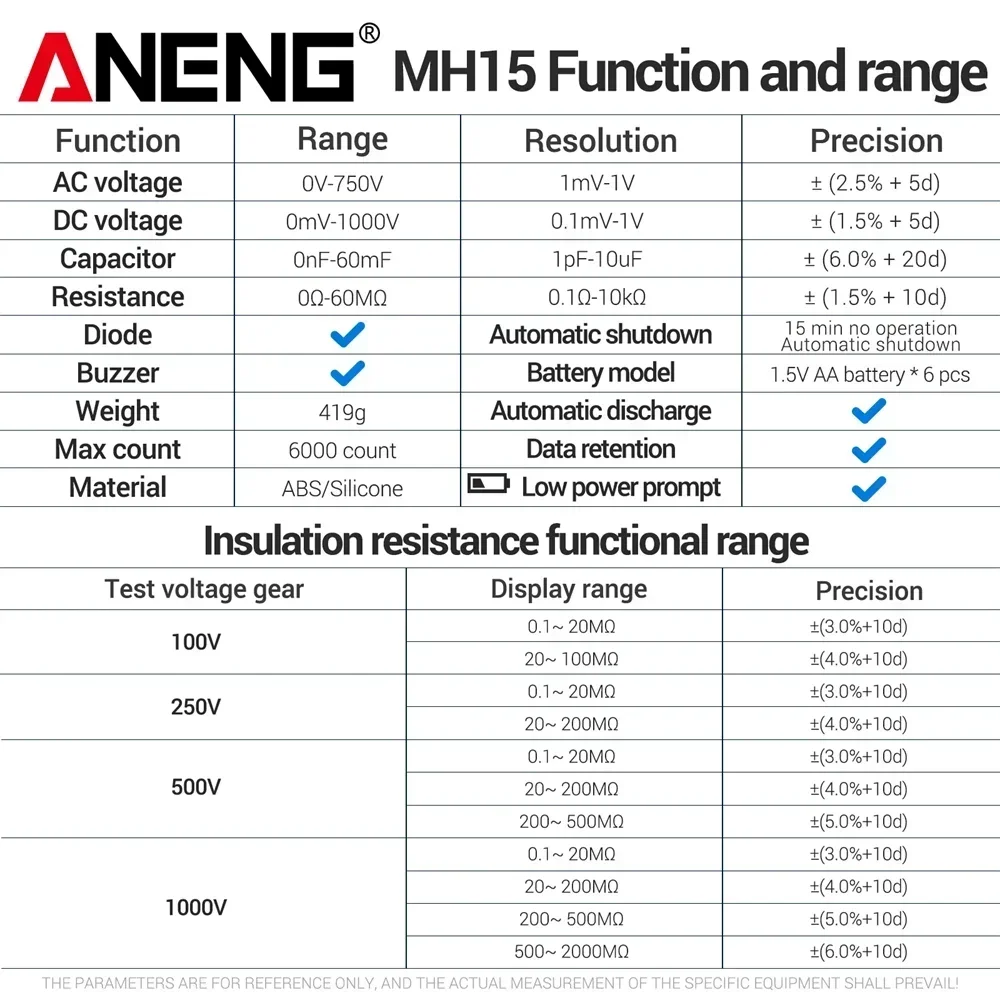

Insulation resistance functional range

Function	Range	Resolution	Precision
AC voltage	0V-750V	1mV-1V	±(2.5%+5d)
DC voltage	0mV-1000V	0.1mV-1V	±(1.5%+5d)
Capacitor	0nF-60mF	1pF-10uF	±(6.0%+20d)
Resistance	0Ω-60MΩ	0.1Ω -10kΩ	±(1.5%+10d)
Diode	√	Automatic shutdown	15 min no operation Automatic shutdown
Buzzer	√	Battery model	1.5V AA battery*6 pcs (without shipment)
Weight	419g	Automatic discharge	√
Max count	6000 count	Data retention	√
Material	ABS/Silicone	Low power prompt	√

Test voltage gear	Display range	Precision
100V	0.1~20MΩ	±(3.0%+10d)
100V	20~100MΩ	±(4.0%+10d)
250V	0.1~20MΩ	±(3.0%+10d)
250V	20~200MΩ	±(4.0%+10d)
500V	0.1~20MΩ	±(3.0%+10d)
	20~200MΩ	±(4.0%+10d)
	200~500MΩ	±(5.0%+10d)
1000V	0.1~20MΩ	±(3.0%+10d)
	20~200MΩ	±(4.0%+10d)
	200~500MΩ	±(5.0%+10d)
	500~2000MΩ	±(6.0%+10d)

THE PARAMETERS ARE FOR REFERENCE ONLY,AND THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL PREVAIL

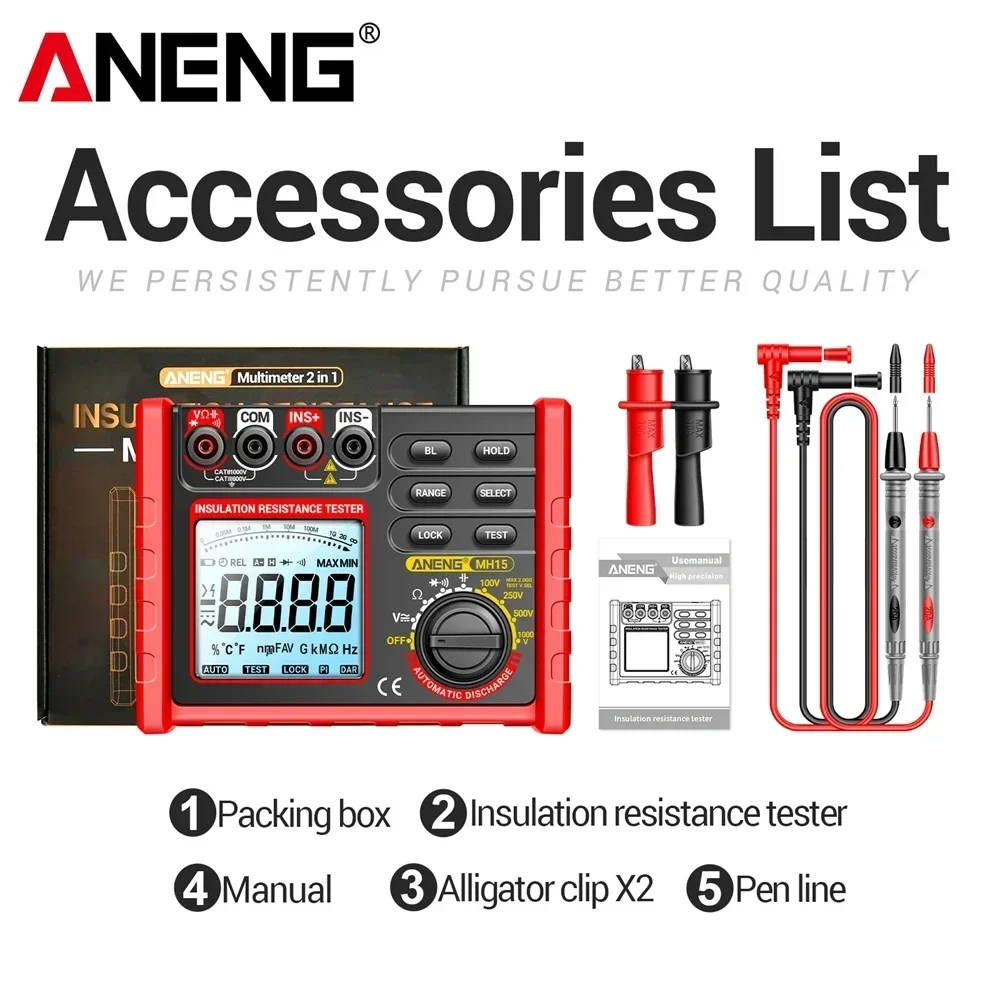

The packaging includes:(Without Battery)
1 * Packaging box
1 * Resistance megohmmeter

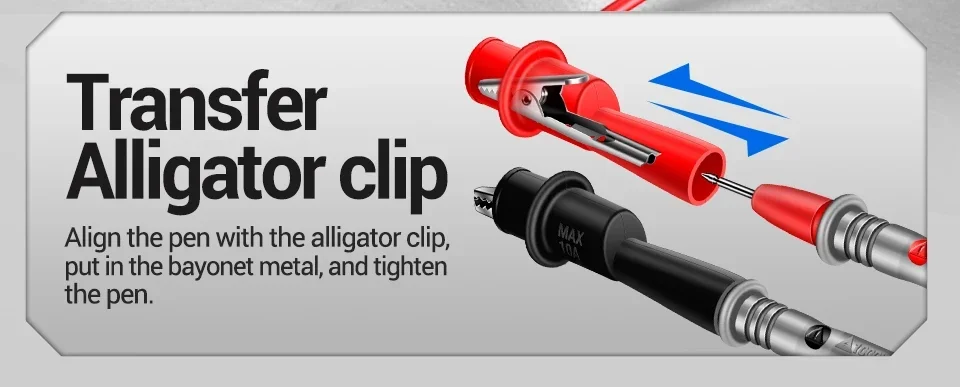

1 * Crocodile clip
1 *storage bag
1 * User Manual
1 * Test lead
