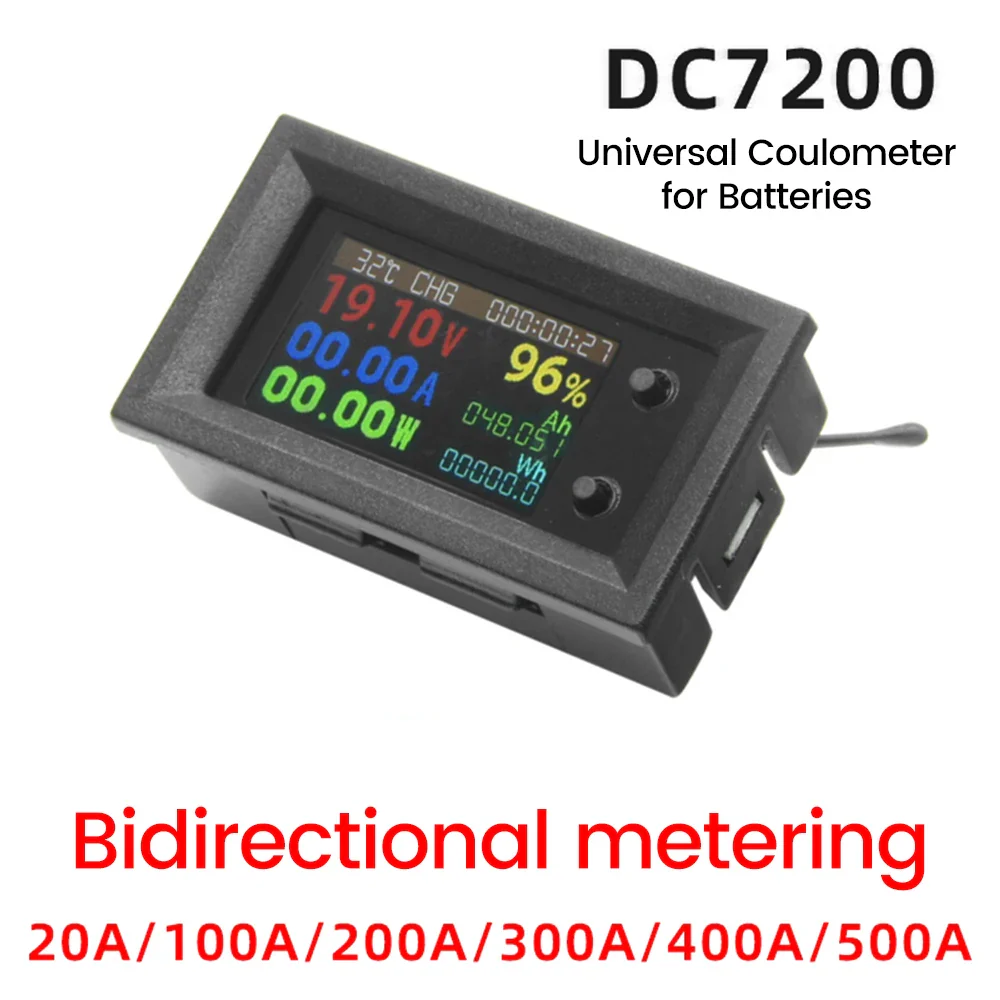

DC7~200V Digital Power Energy Voltmeter Ammeter Bi-Directional Metering Coulometer Battery Tester 9 in 1 Multi-Function Tester

Features:
1. High-definition IPS LCD color screen, clear display, accurate measurement.

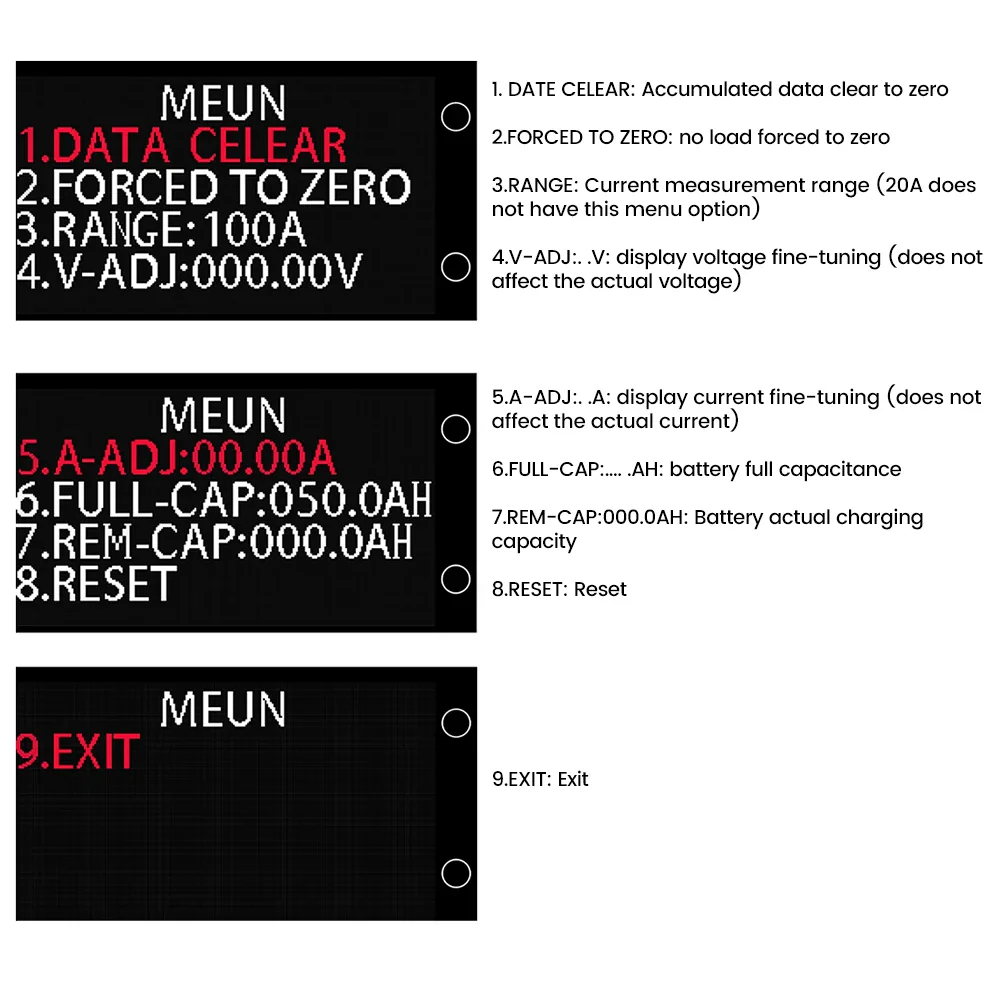

2.Support zeroing of accumulated data and zeroing of no load.
3. Support voltage display fine-tuning, current display fine-tuning.
4. Support the percentage based on the capacity setting (need to manually set the full capacity).

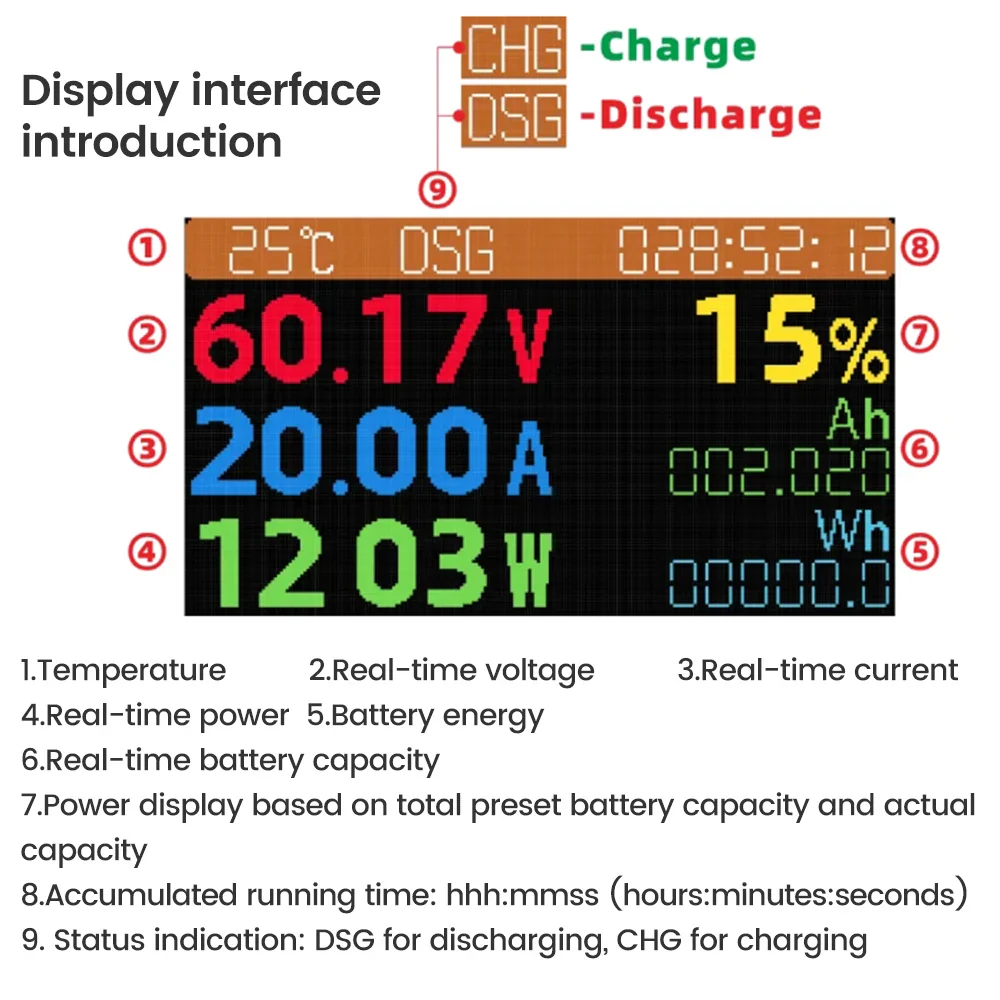

5. It can simultaneously measure voltage, current, power, real-time battery capacity, battery energy, temperature, time, percentage power, and display charging and discharging status.

Parameter:

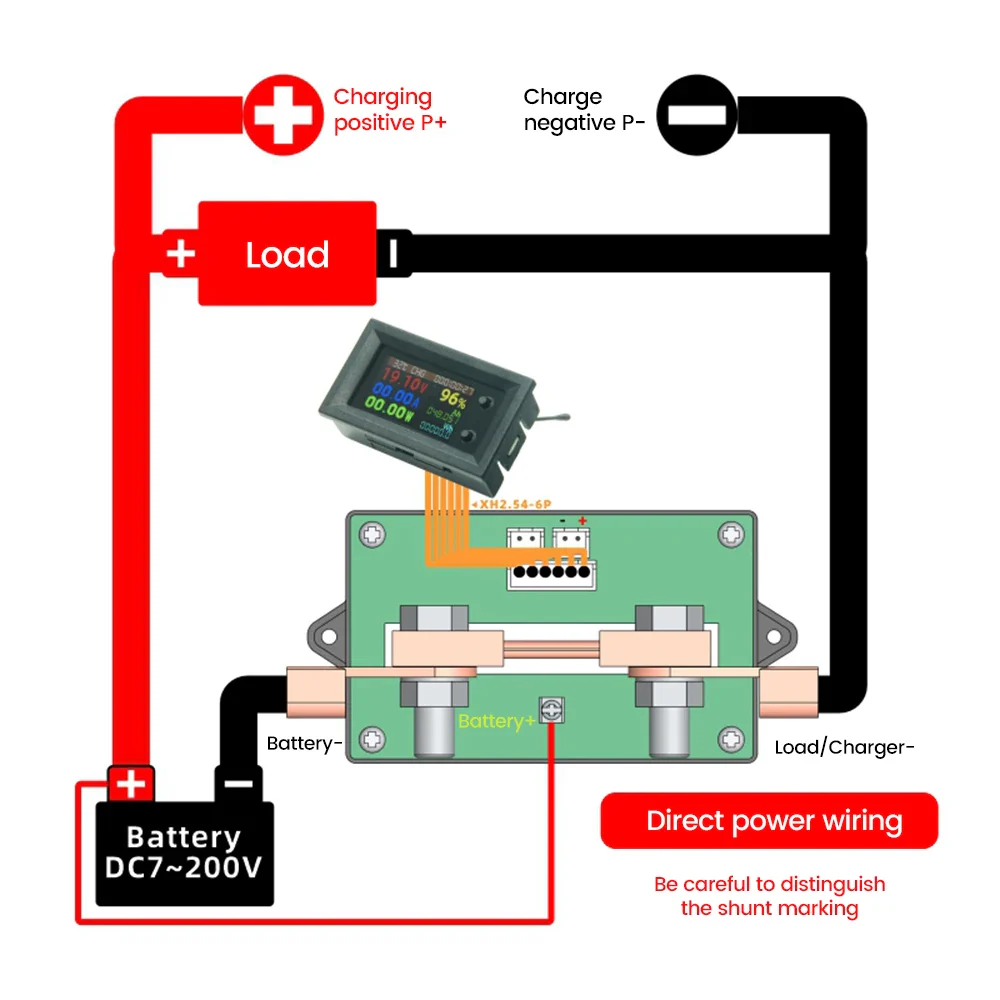

Input/output interface:

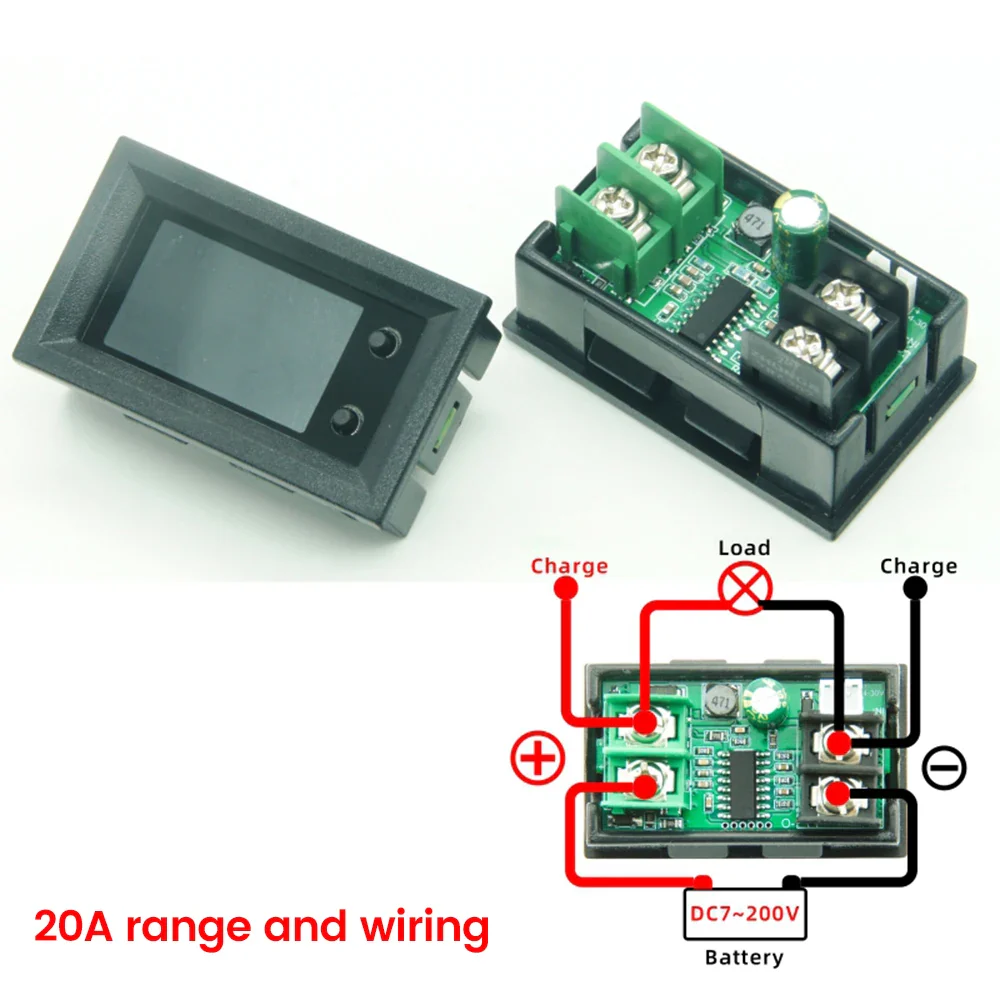

①20A high current 2P terminal block

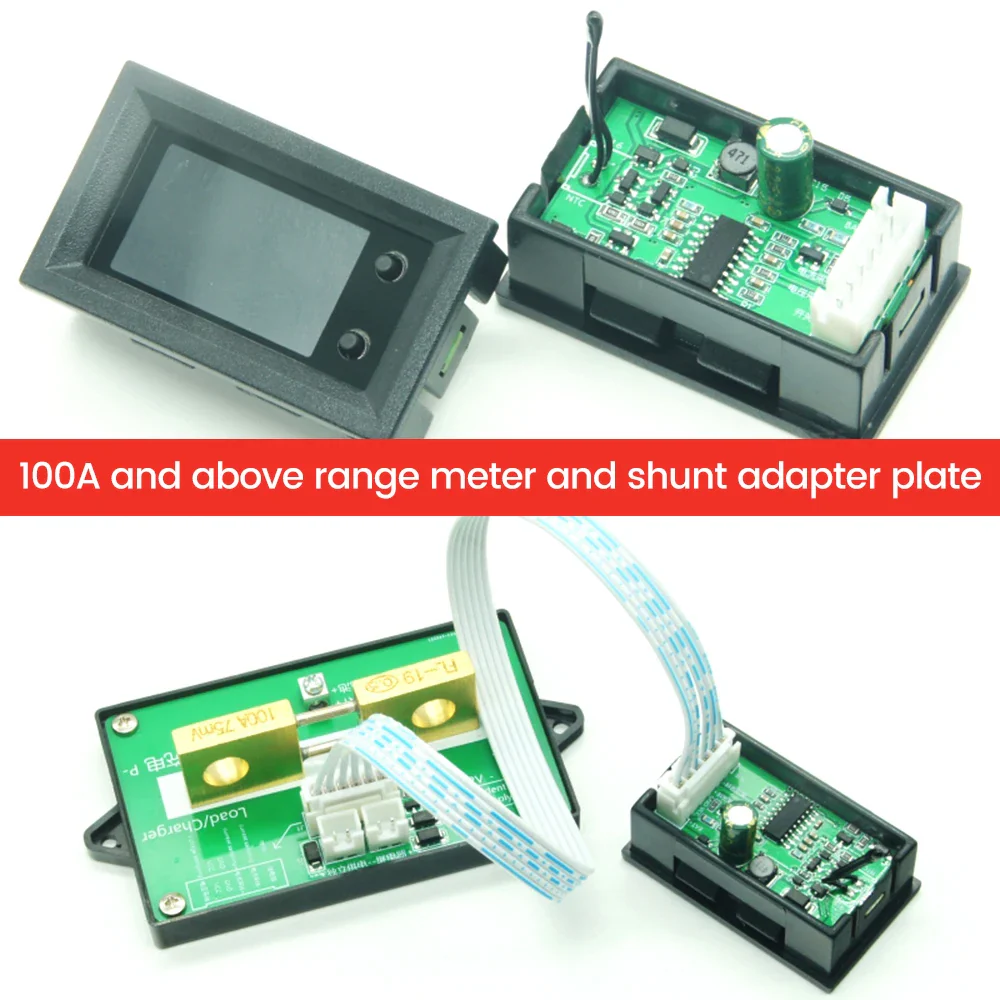

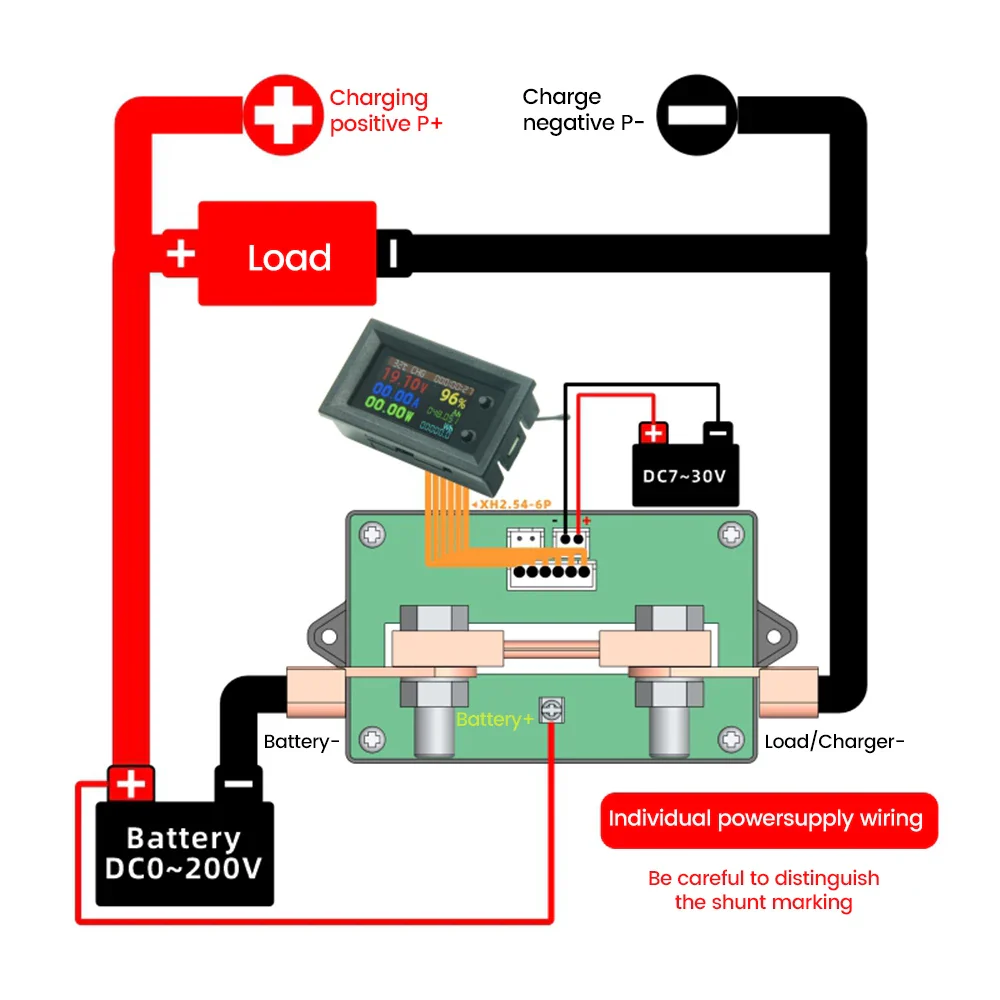

②100A/200A/300A/400A/500A by shunt adapter board wiring
Instrument operating voltage: DC7~200V
Voltage measurement range: DC7~200V
Current measurement range:

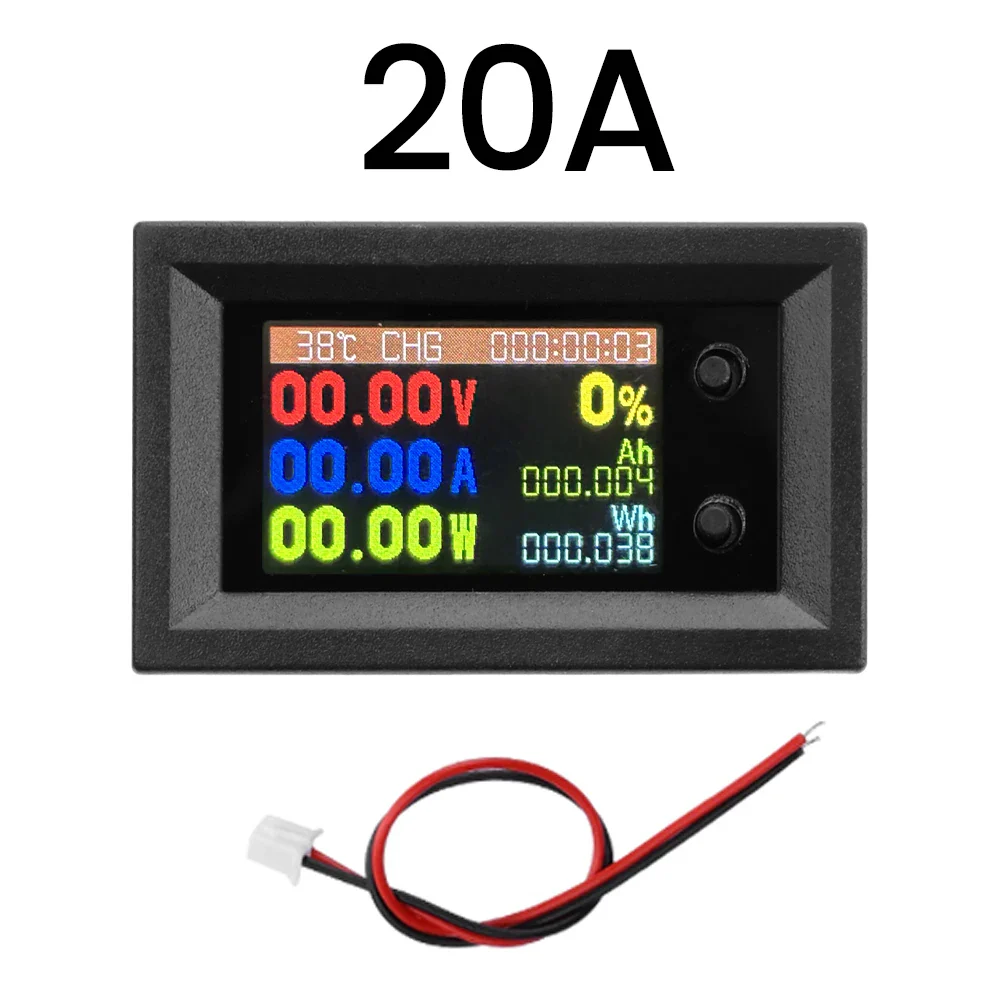

①20.00A (direct measurement, without external shunt)

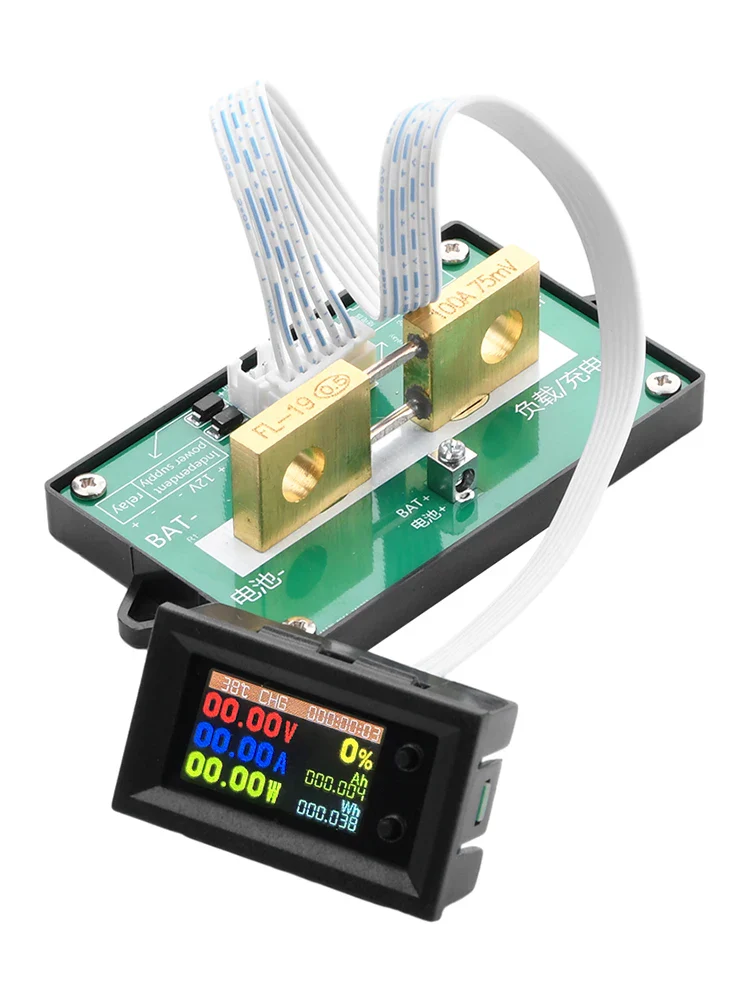

② 100.0A (need to connect the shunt adapter plate)
③200.0A (need to connect the shunt adapter plate)
④300.0A (need to connect the shunt adapter plate)
⑤ 400.0A (Shunt adapter plate required)
⑥500.0A (Shunt adapter plate required)
Power measurement range: 00.00W~1.000KW~999.9KW
Capacity measurement range: 0~999.999Ah
Power measurement range: 0~99999.9Wh
Temperature measurement range: 0~99℃
Time measurement range：0~999:59:59(hours：minutes：seconds)
Bi-directional current indication: Support, DSG indicates discharge, CHG indicates charge.
Data Zeroing: Support
No-load zeroing: support
Voltage display fine-tuning: support
Current display fine-tuning: support
Percentage power display: support the percentage based on the capacity setting (need to manually set the full power capacity)

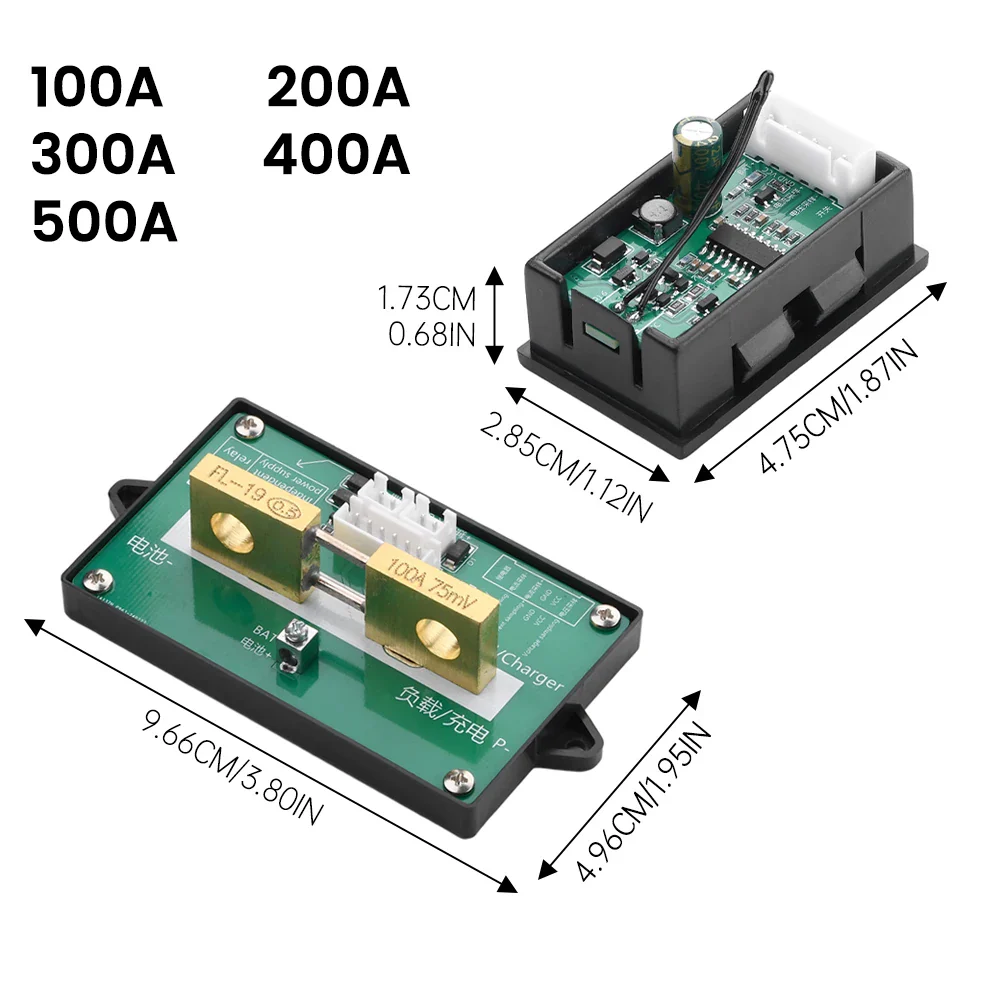

Meter mounting aperture: 45×26mm
Product size: 47.59×28.67×25.33mm

Profile Link:
https://mp.weixin.qq.com/s?__biz=MzI2MDQzNzg2Mw==&mid=2247485537&idx=1&sn=9640a99d7c58345ad7a5f8b4d34a1b01&chksm=ea68ea69dd1f637f298f54f6f32ec12e1856d3b714b1e8343cad03d8484a48a464448048fbef&token=1722952996&lang=zh_CN#rd

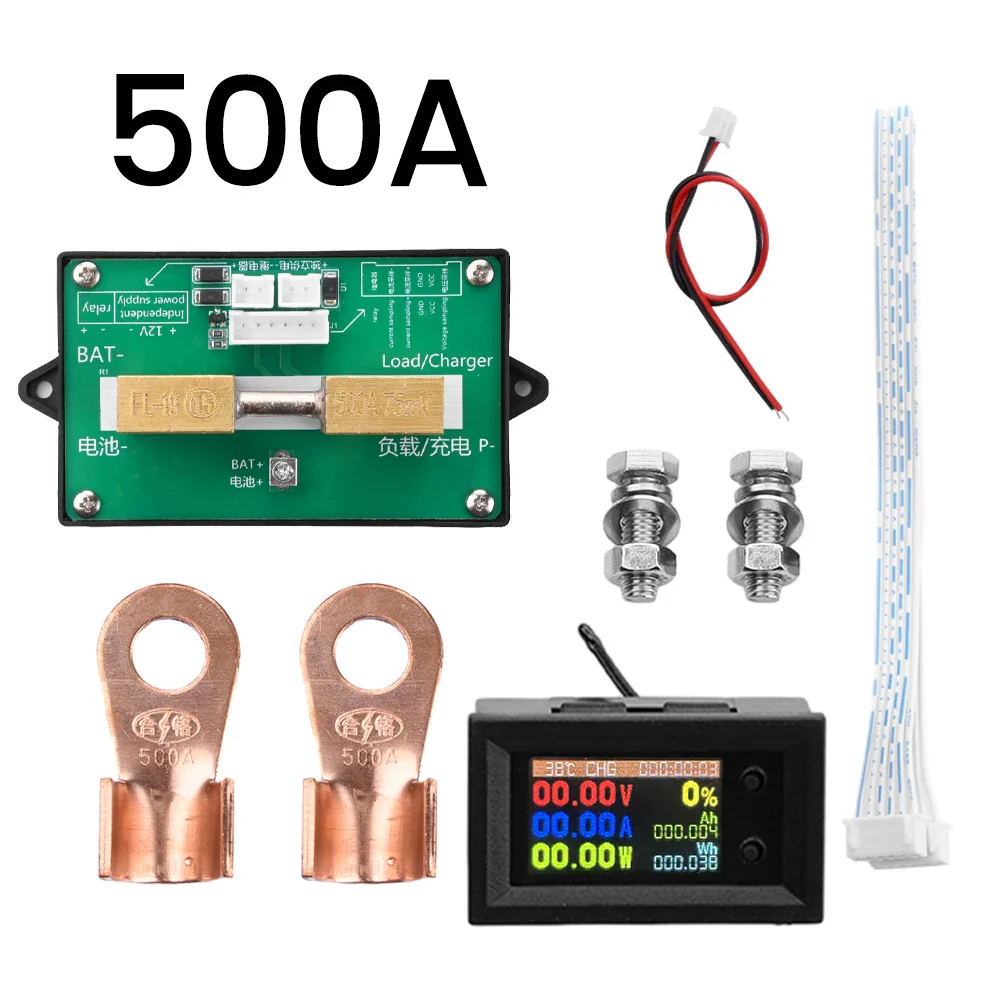

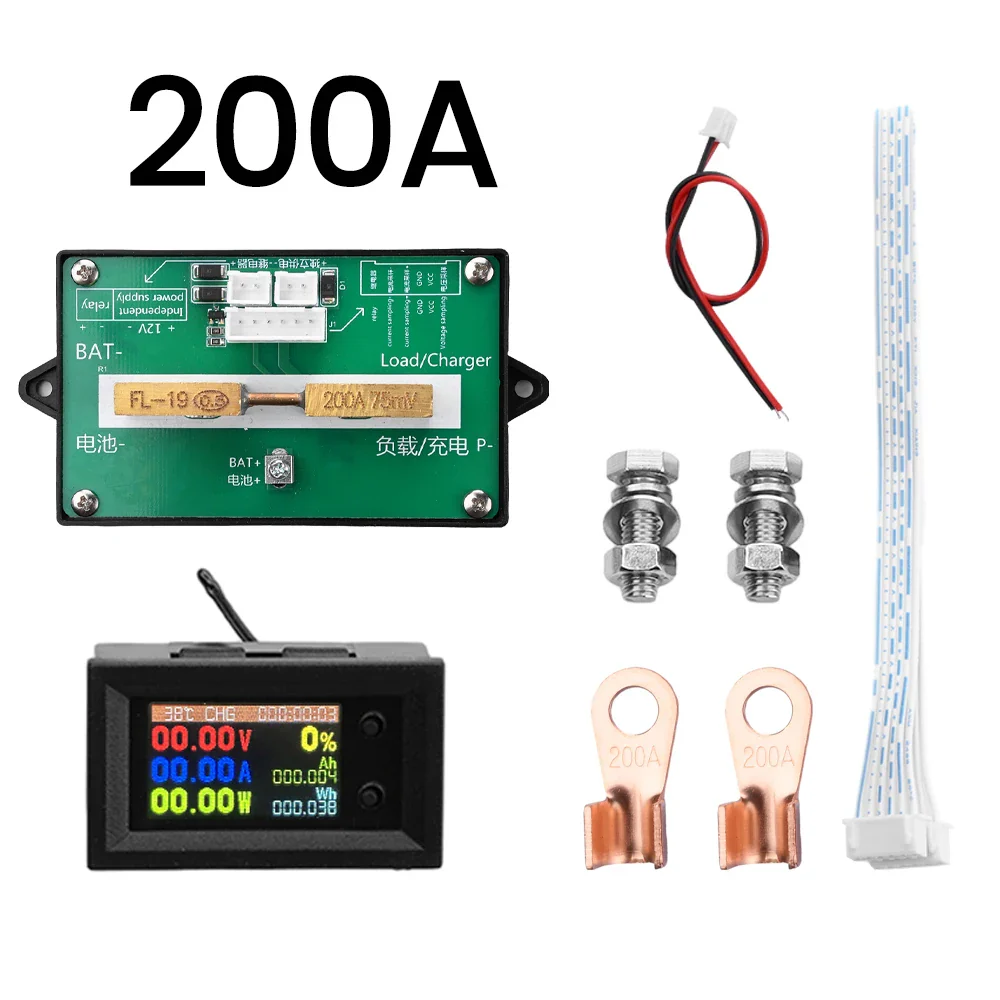

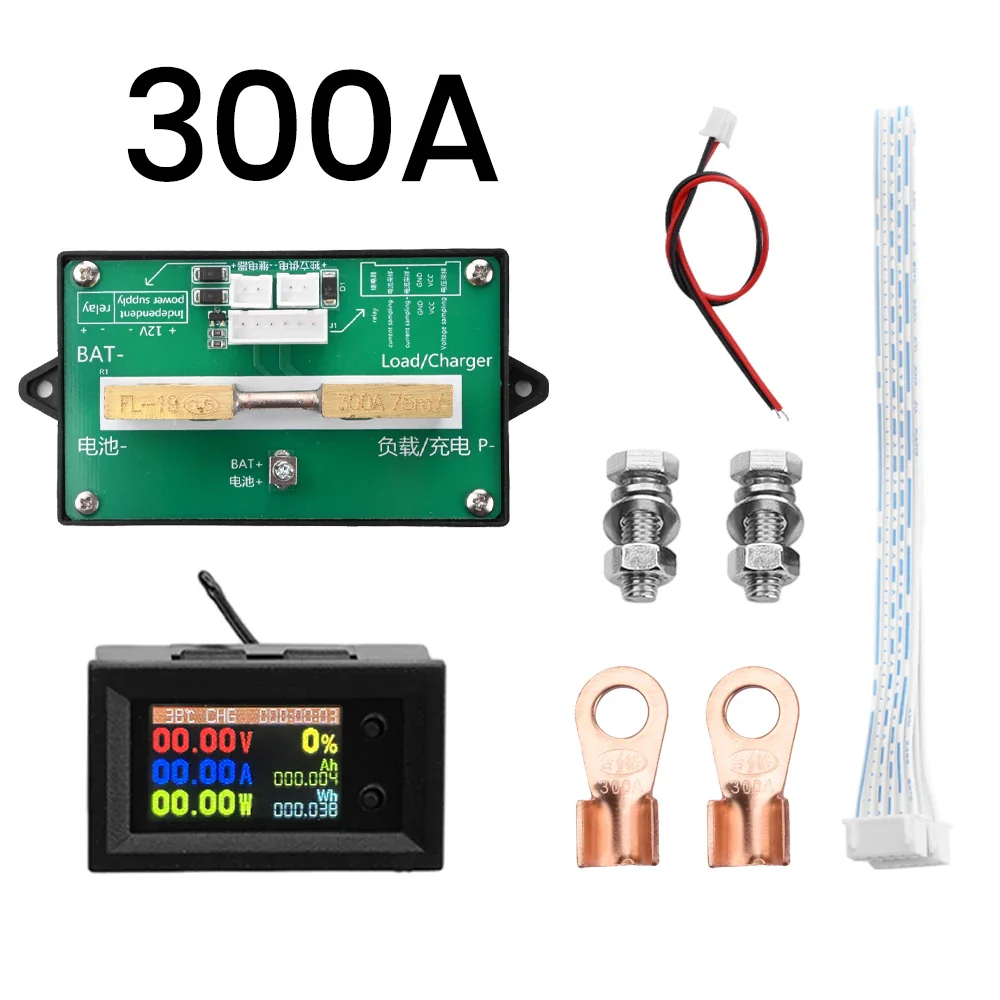

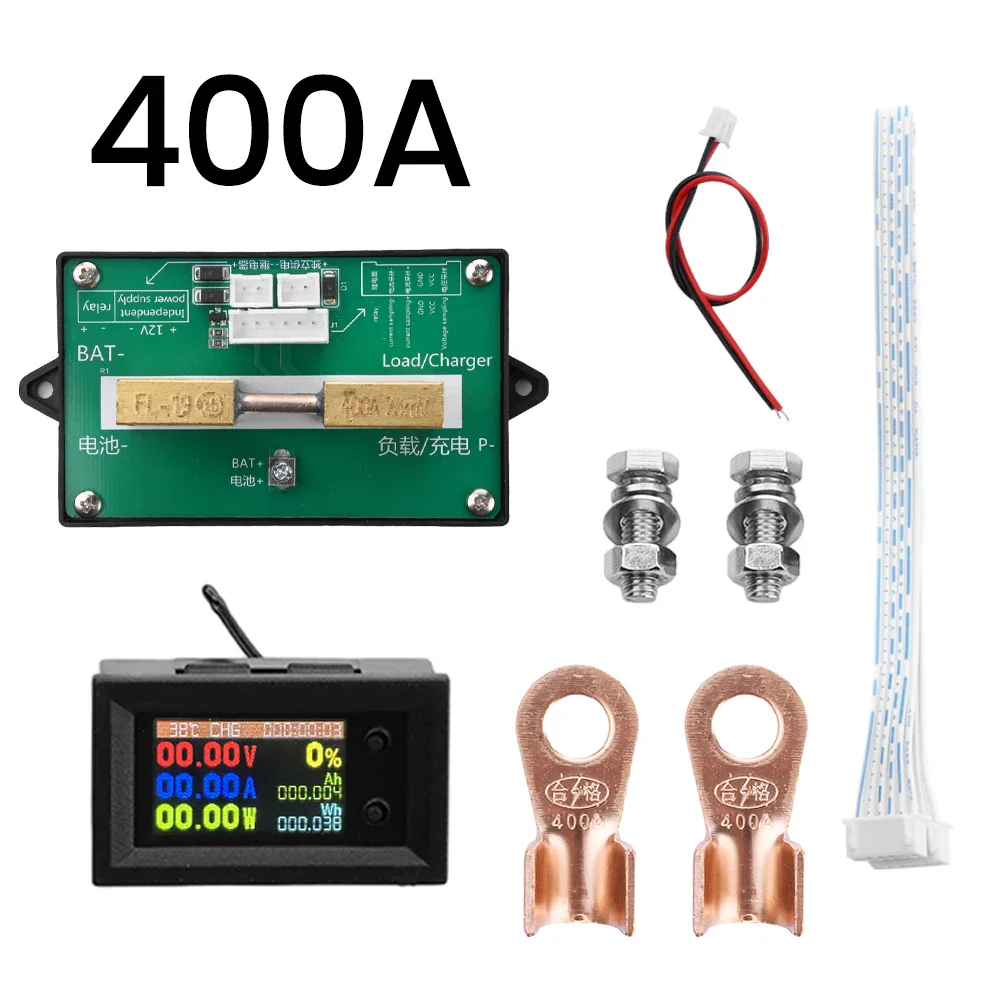

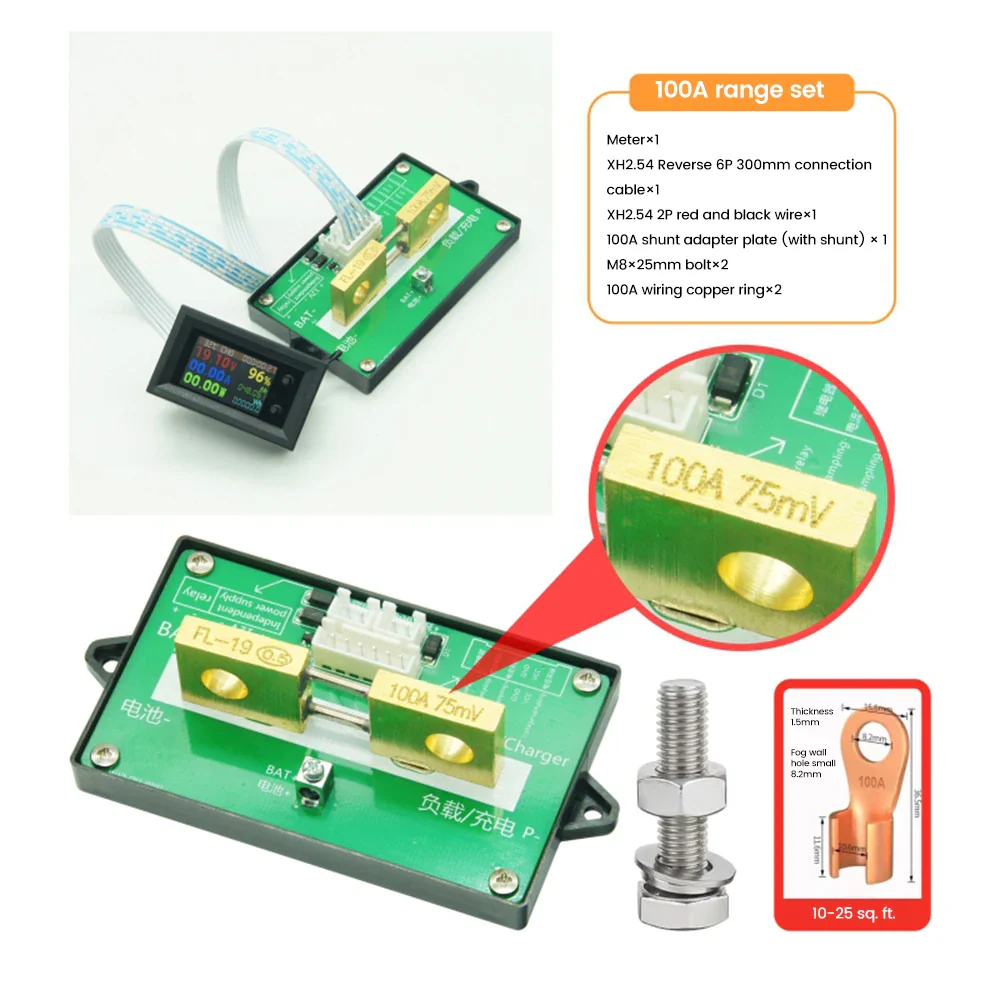

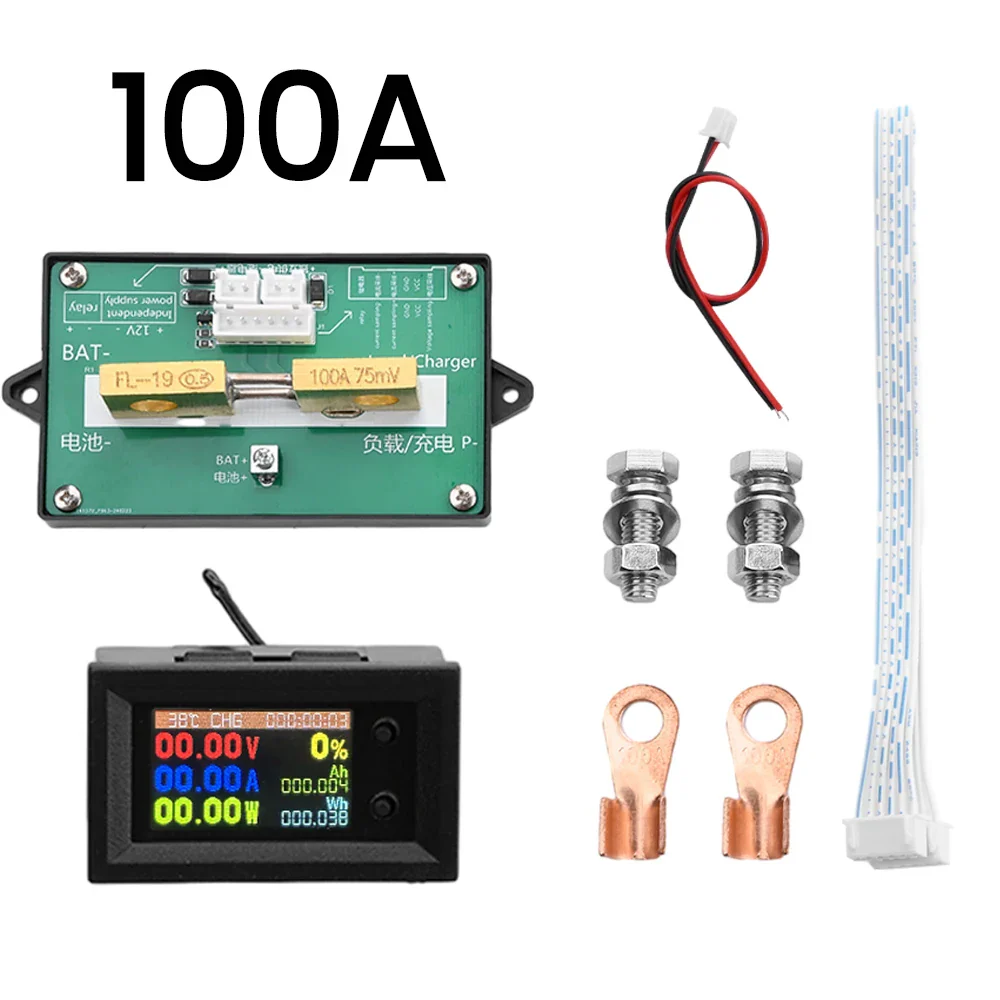

Package include:
Meter x1
XH2.54 Reverse 6P 300mm connection cable x1
XH2.54 2P red and black wire x1
Splitter adapter plate (with splitter) x1
M8x25mm bolt x2
Wiring copper ring x2
