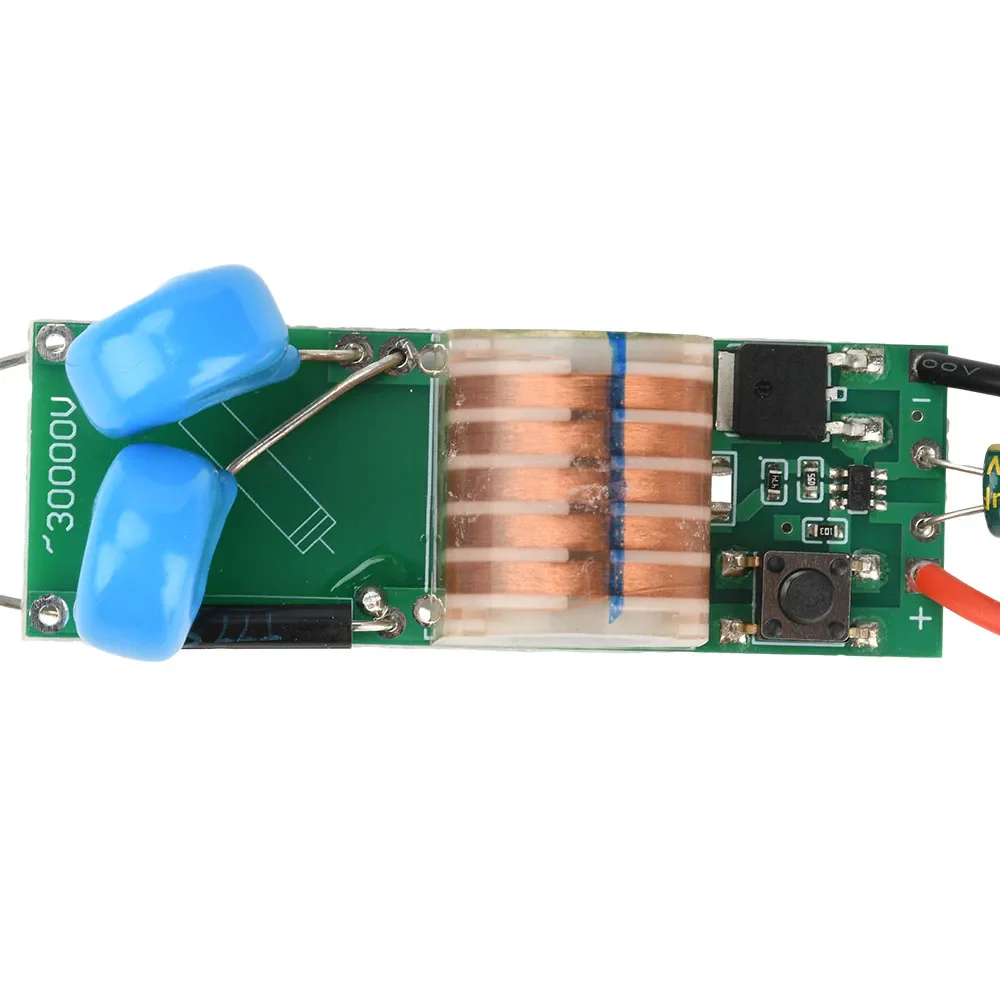

DC 3.3V-5V to DC 15-30KV High voltage Generator Ignition Module No-load High Power Boost Converter 3.7V Arc Igniter Transformer

Product features:

1. Wide voltage compatibility: DC 3.3-5V power supply, single lithium battery can also be driven, strong applicability

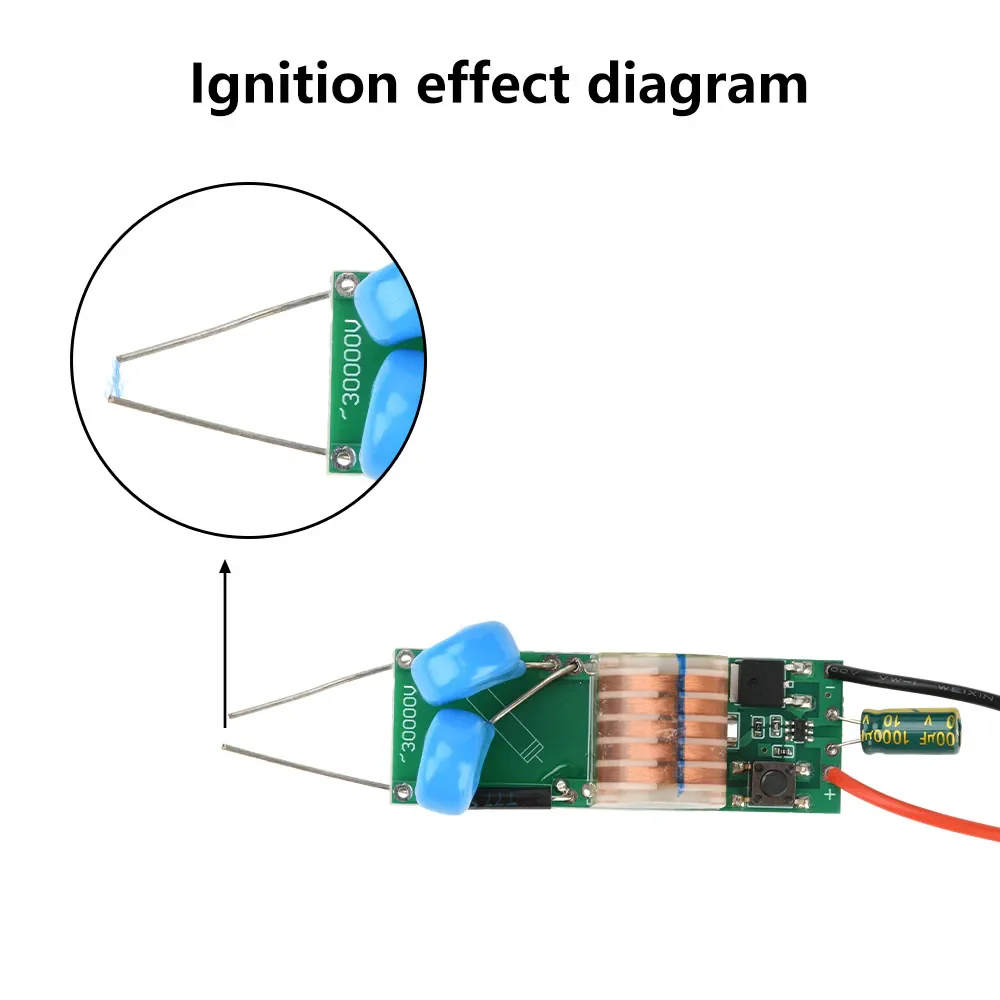

2. High voltage and high power: 15-30KV output voltage, accurate ignition, adapt to a variety of industrial scenarios.

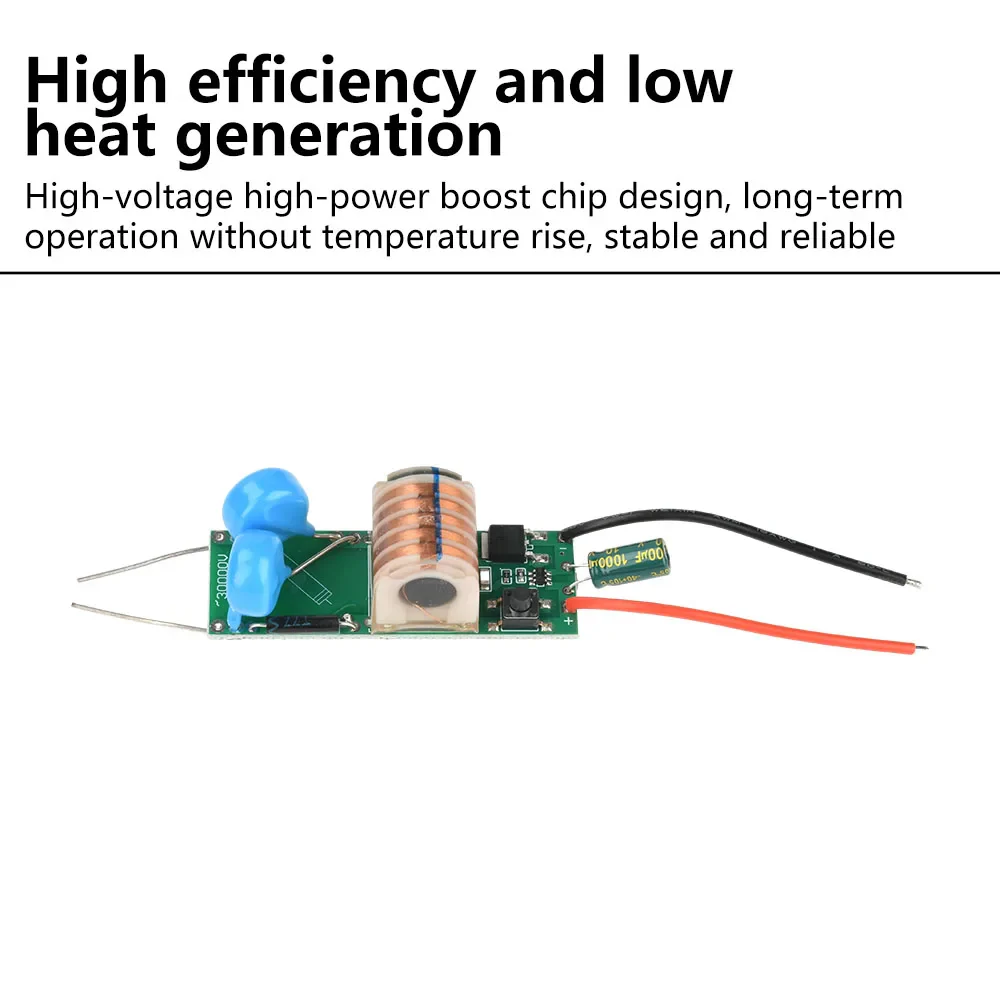

3. High efficiency and low heat generation: high voltage and high power boost chip design, long-term operation without heating, stable and reliable.

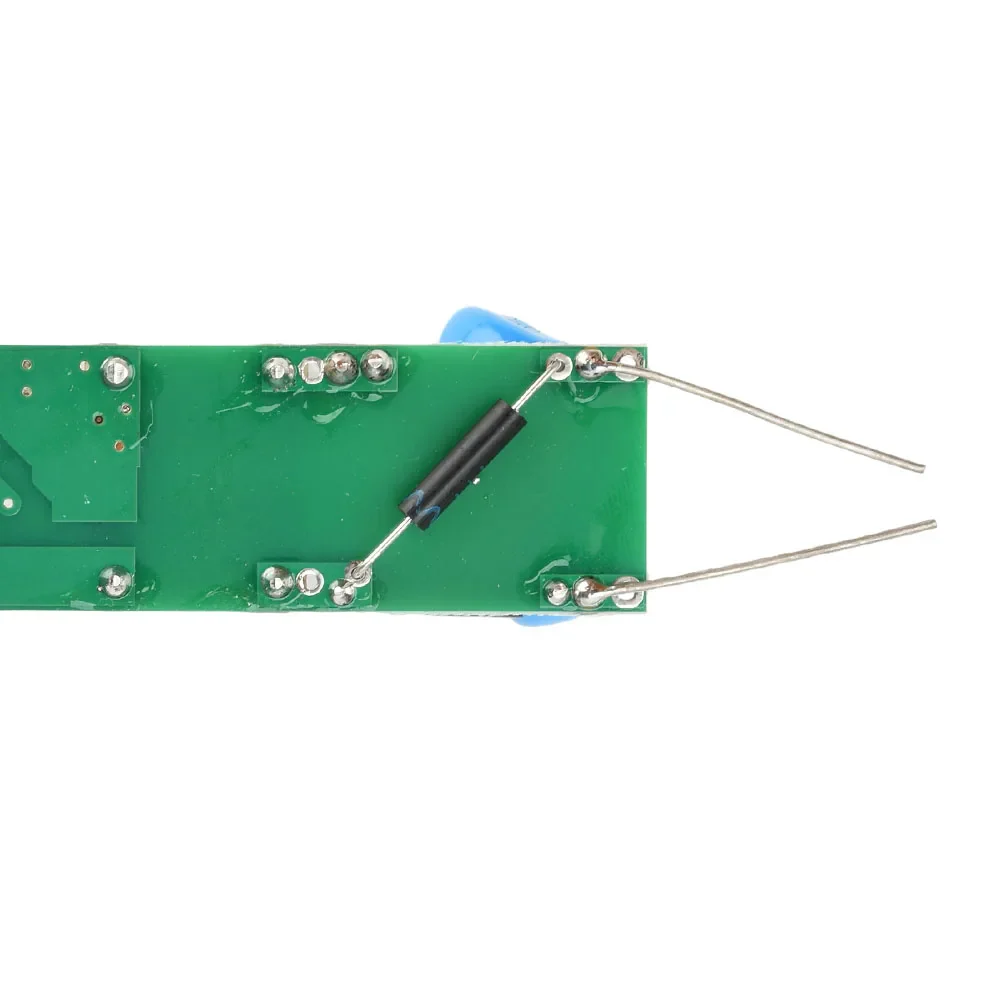

4. Ultra-durable circuit: anti-high-voltage design, no damage to the circuit when the high-voltage packet is damaged, long service life.

5. Adjustable and flexible output: voltage is freely adjustable to meet the needs of different equipment, high versatility



Parameters:

Product Name: Arc Igniter

Supply Voltage: DC 3.3V-5V, can also be used 3.7V single lithium battery power supply

Output Voltage: about DC 15-30KV, mainly worried about the high-voltage packages and the device's voltage, the circuit booster can be arbitrarily raised and lowered

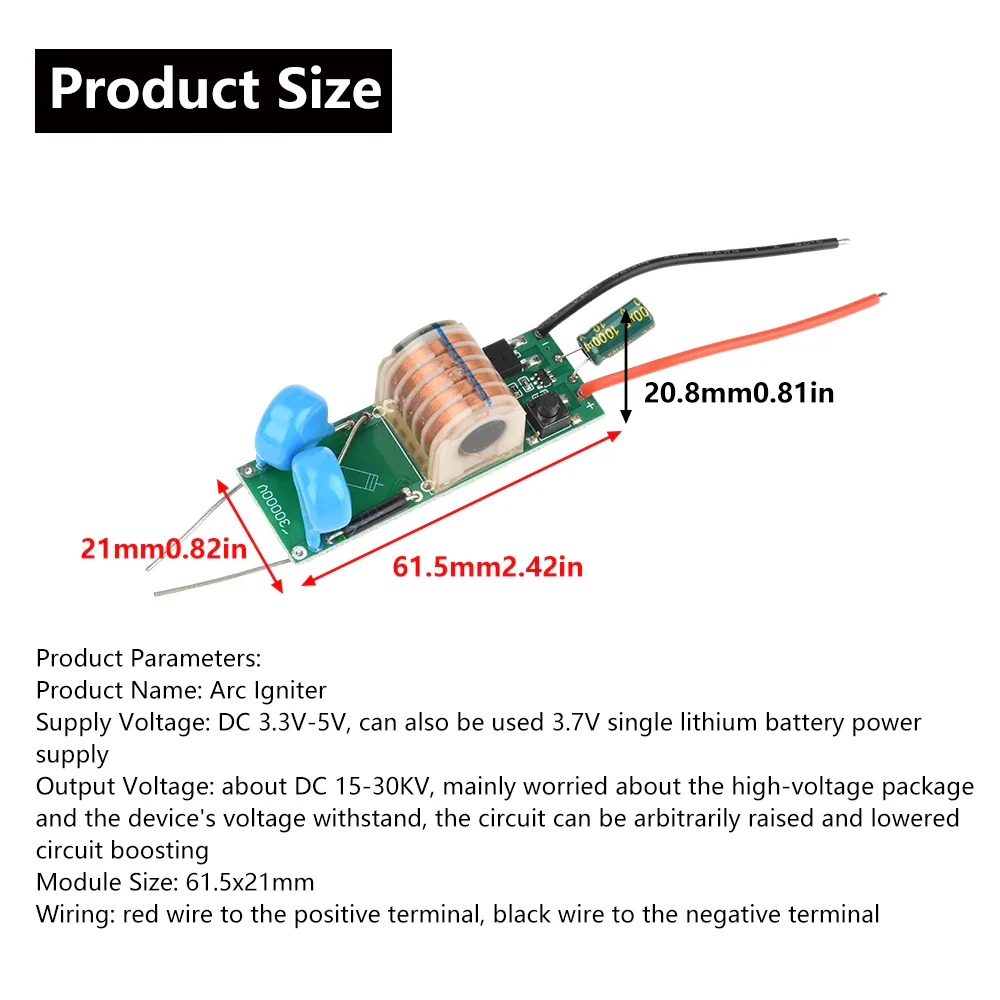

Module Dimensions: 61.5x21mm

Wiring: red wire to the positive pole, the black wire to the negative pole



Description:

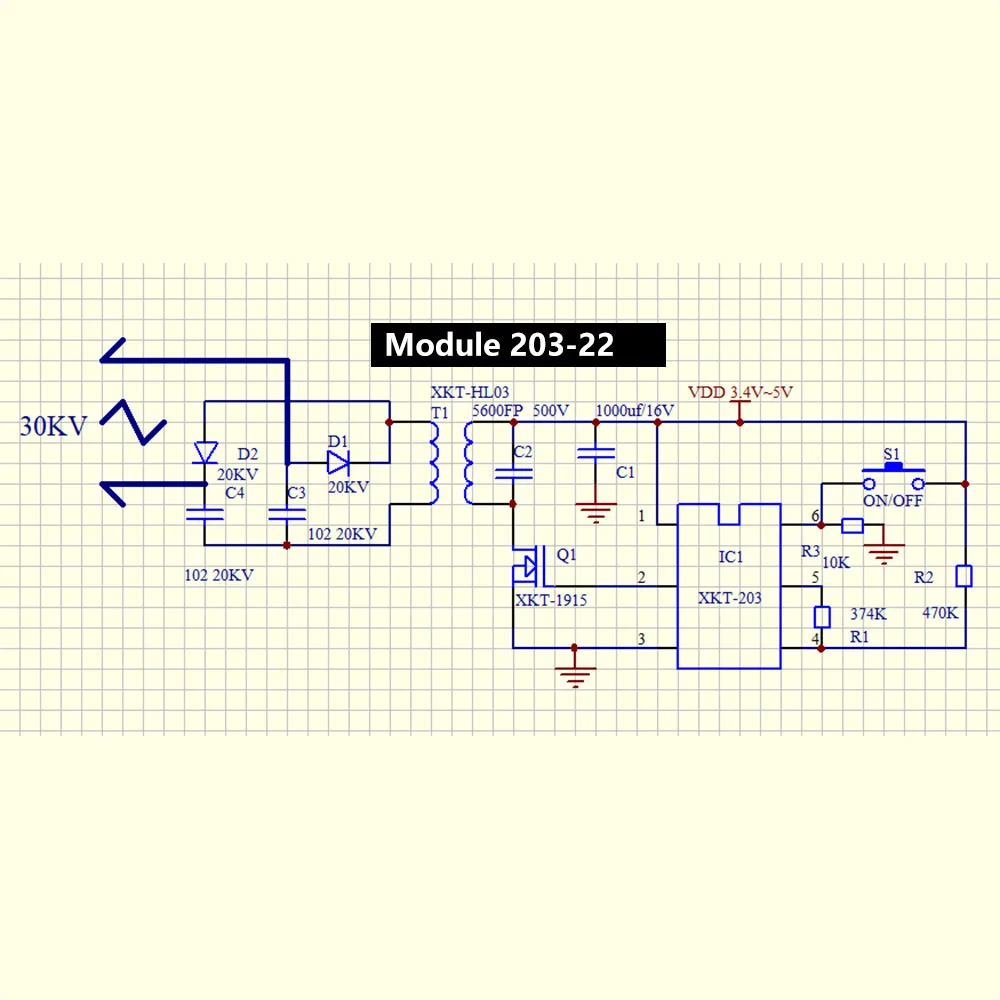

using high-voltage high-power boost chip XKT-203 IC design, with a simple circuit, high output power, output voltage can be adjusted arbitrarily, high efficiency and other characteristics, the output voltage of 2 ~ 30,000 volts or so, the circuit does not heat up for a long time, the circuit is durable, there are customers for a long time application, due to the power of the high-voltage packet cracks, the circuit will not be damaged!



Shipping list:

High voltage Arc Igniter module*1
