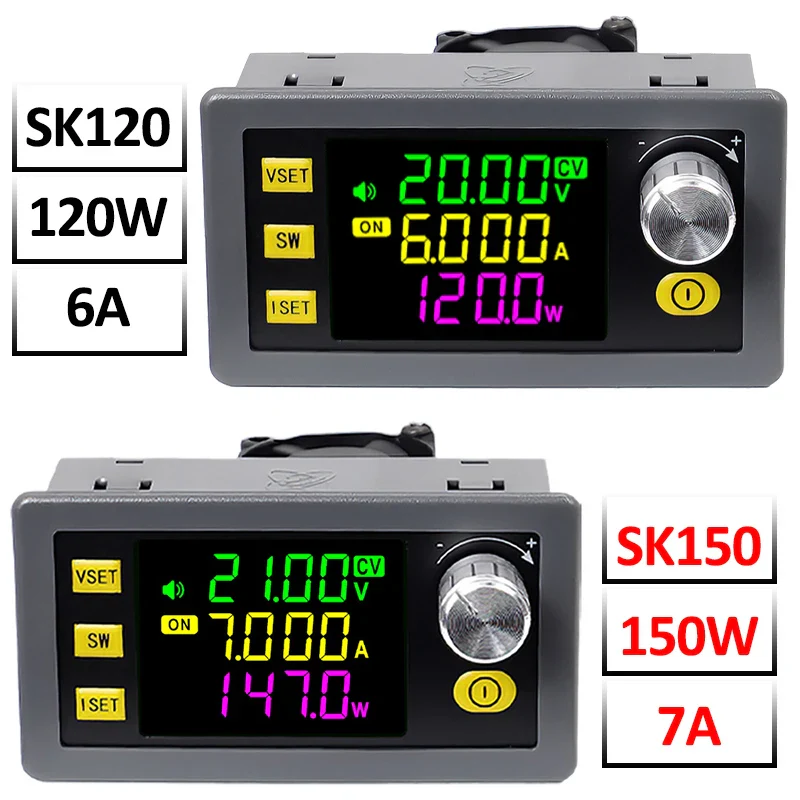

120W Buck Boost Converter Adjustable Regulated Power Supply Input Constant Voltage Constant Current Solar Charging Module

120W/150W Buck Boost Converter Adjustable Regulated Power Supply Input Constant Voltage Constant Current Solar Charging Module

Product parameters

Product name: DC buck-boost power supply

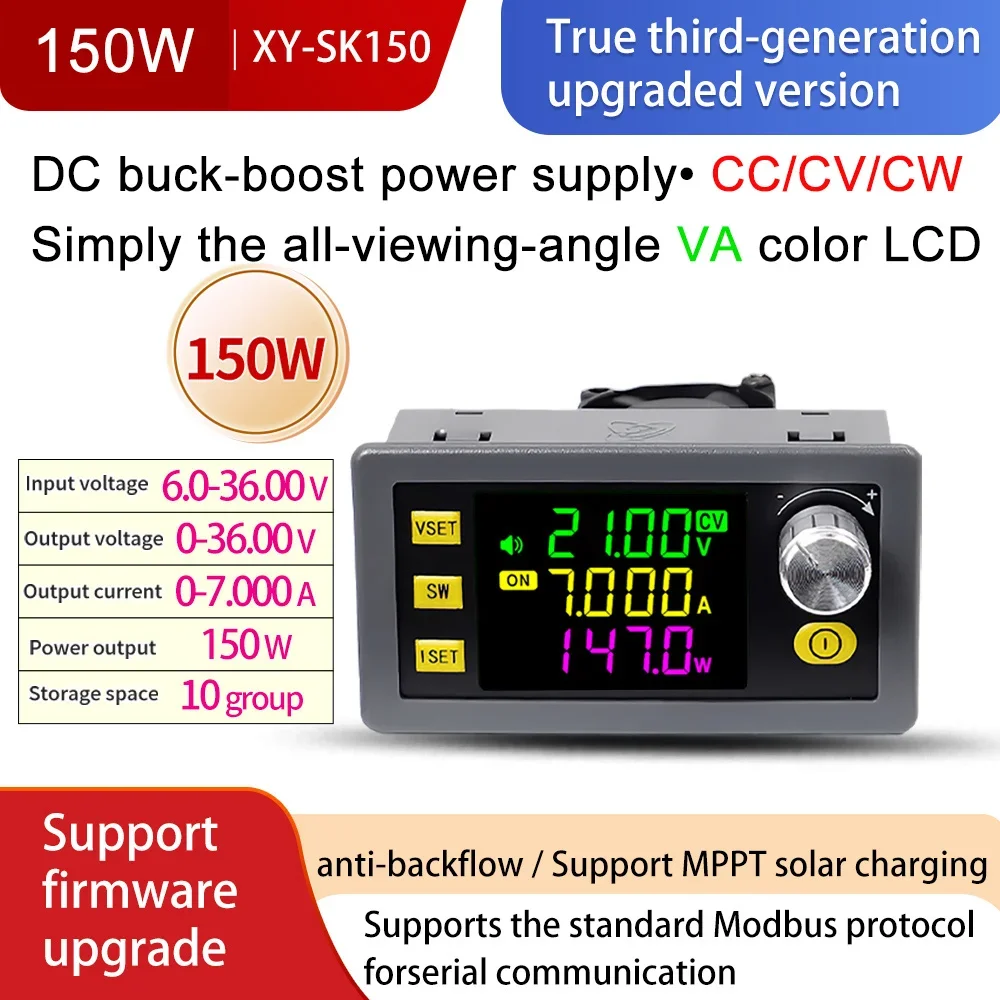

●Model:XY-SK150
Input voltage:6-36.00V
Output voltage:0.0-36.00V
Output current:0-7.000A
Accuracy of voltage:+0.5%+1 word
Power output:150W
Accuracy of current:±0.5%+3 word
Resolution of voltage:0.01V
Resolution of current:0.001A
Storage data group:10 groups

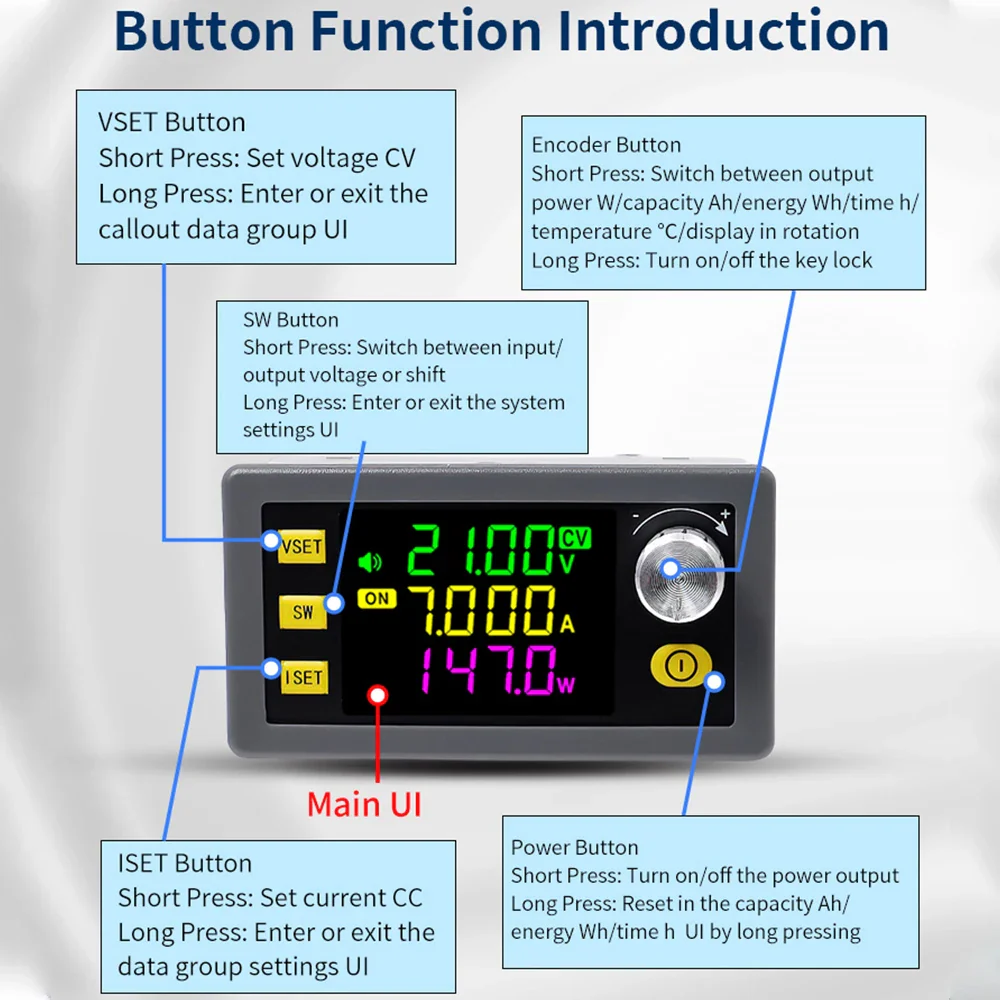

Number of buttons:5

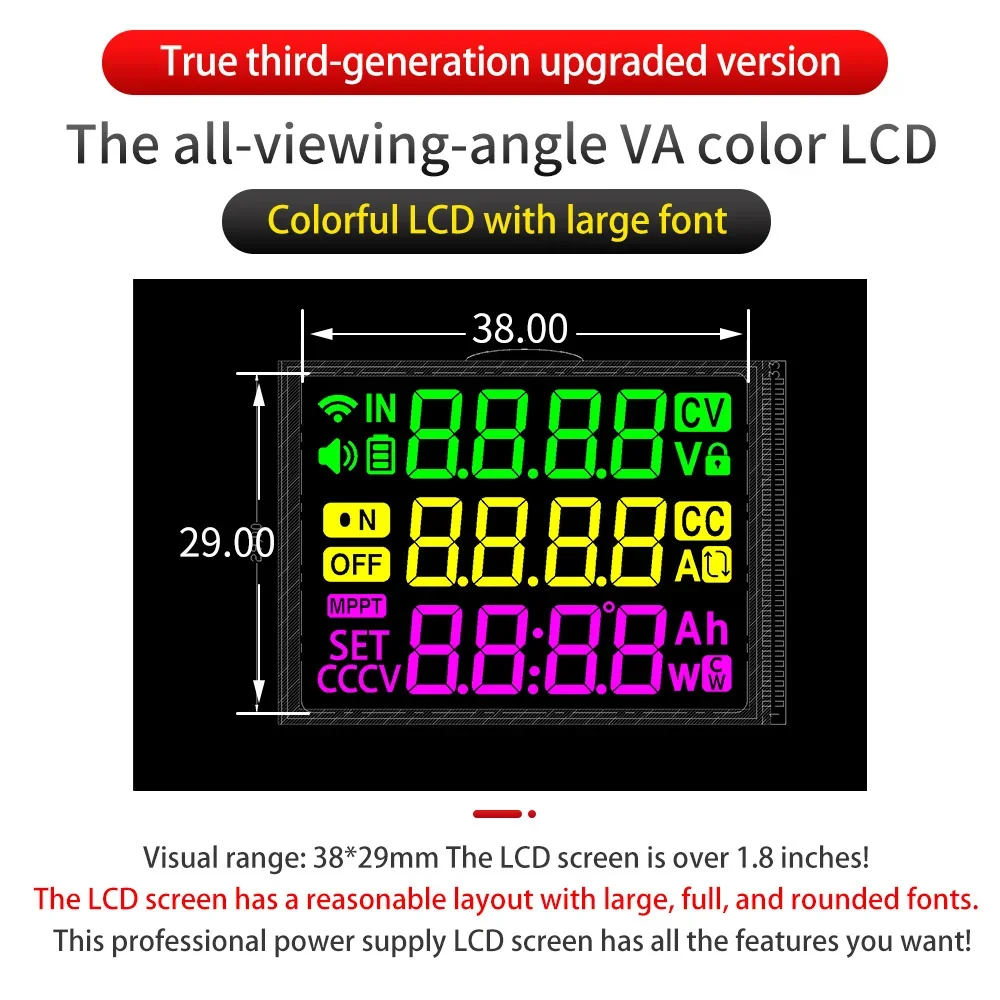

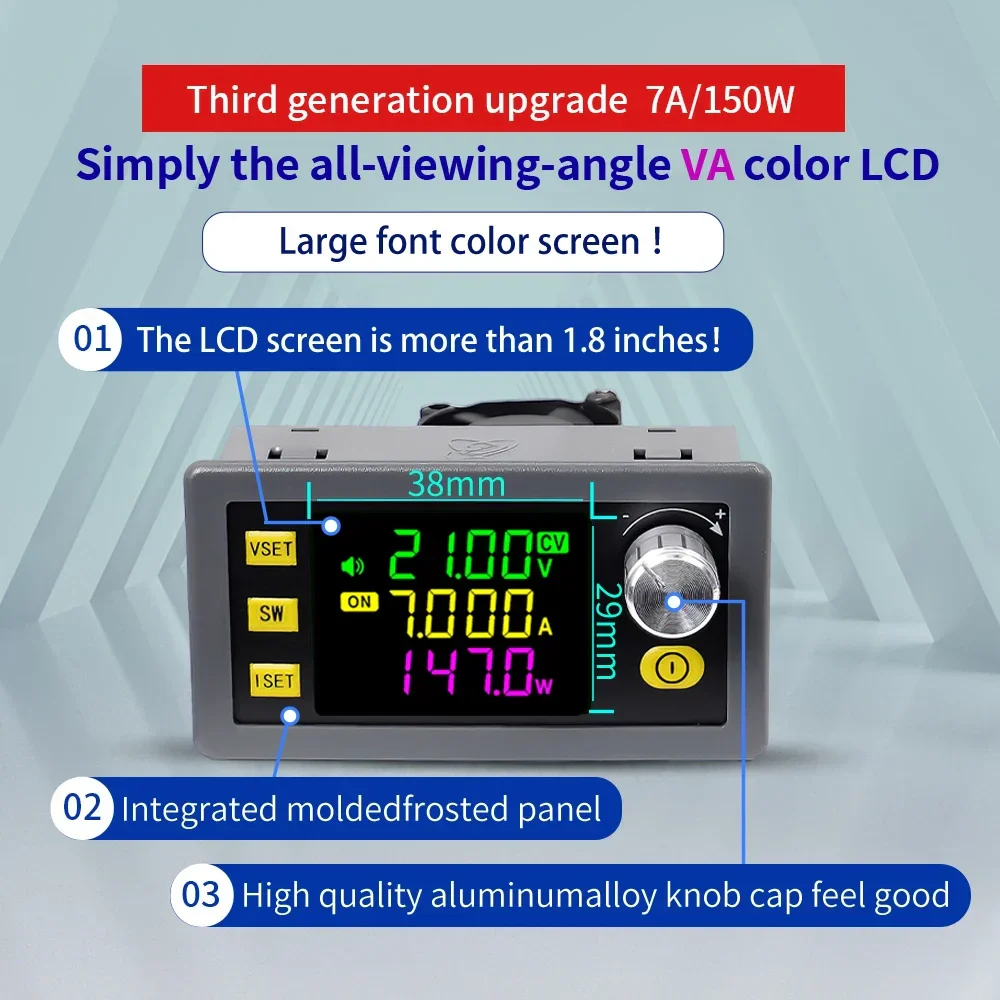

Screen size:Over 1.8-inch LCD with a viewable area of 38*29mm
Buzzer: YES
Soft start: YES
Efficiency of conversion: About 88%
Output ripple typical value: vpp-150mv
MPPT function: Support MPPT solar charging
Size:SK-150:79x43x50mm
Weight:SK-150:108g
Anti-reverse: YES
Anti-backflow: YES
under-voltage (LUP): (Adjustable 5.5-36V, default 5.5V)
over-voltage (OUP): (Adjustable from 0 to 38V, default is 38V)
over-current (OCP): (Adjustable from 0 to 7.2A, default 7.2A)
over-power (OPP): (Adjustable from 0 to 180W, default is 160W)

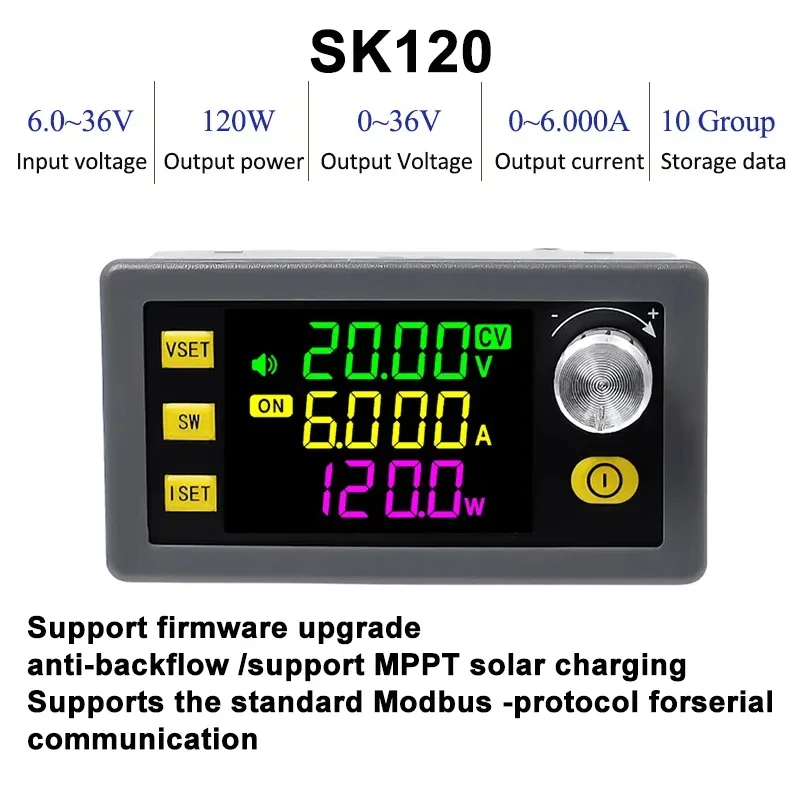

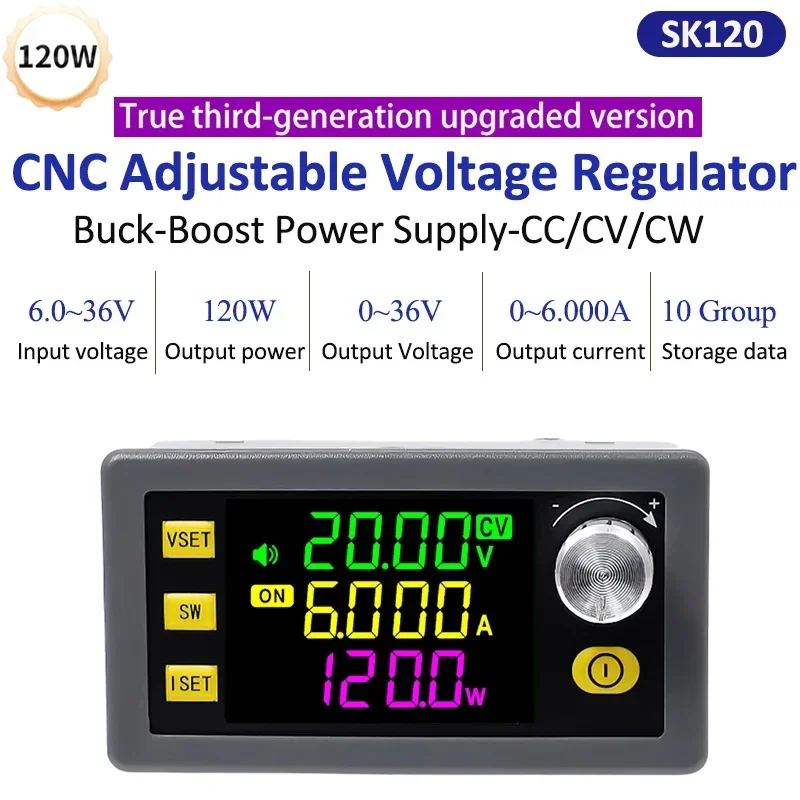

●Model:XY-SK120
Input voltage: 6.0~36V
Output current: 0~6.000A
Output power: 120W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0~36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: support MPPT solar charging
Buzzer: Yes
Soft start: Yes
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V
adjustable, default 5.5V
Output over-voltage protection: 0-38V
adjustable, default 38V
Output overcurrent protection: 0 -6.2A adjustable, default 6.2A
Output over power protection: 0-150W adjustable, default 125W
Over-temperature protection: 0-110°C adjustable, default 95°C
Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0~9999AH adjustable, default off
Super energy protection: 0~9999KWH adjustable, default off
