ZOYI ZT-5566 Bench top Multimeter Bluetooth Speaker 1000V 20A Digital Multimeter Auto Range Multimetro Digital Voltmeter

The Bench Top Bluetooth Speaker Multimeter is a unique multi-functional device that has 19999 digits Dual Display and Analog Bar Graph . Measure speed is about 3 per second and with more functions including DC/AC Voltage, DC/AC Currents, Resistance (Ω), Capacitance, Frequency (Hz), Duty Cycle, Diode and Continuity Check. Moreover, you can connect BLUETOOTH to PLAY MUSIC. The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring.

Features:

1.Digital Multimeter & BT Speaker,Play music by linking wireless.

2.True RMS: The RMS/DC transform avoids the influence of voltage waveform distortion on can test high accuracy and it can self-calibrated chip.

3.It is equipped with clock,alarm clock, wireless to play music, temperature display.

4.With screen with backlight,and data hold founction,easy to record value and users can work in a dark environment.

5.Function:Test AC/DC Voltage,AC/DC Current, Resistance, Capacitance, Frequency and duty cycle,Test for Continuity, Test Diodes,etc.

Description:

This product is an automatic range multi-function digital multimeter with 19999 word high precisiondisplay .The meter is driven by a lithium battery , with true rms measurement , LCD display , adjustable backlightbrightness , clear reading , clock , alarm clock , wireless audio , ambient temperature display .

Specifications:

Brand:ZOYI

Model:ZT-5566

Multimeter:

Display（ LCD）:19999 counts

Ranging :Auto/Manual

Material :ABS+TPE

Battery type: 18650 Lithum battery * 2

Operating Temperature:0~40℃; Humidity :＜75%

Storage Temperature -20~60℃; Humidity ＜80%

DC voltage:1.9999V 0.0001V/ 19.999V 0.001V/ 199.99V 0.01V/ 199.99V 0.01V/ 1000.0V 0.1V ±(0.05%+3)

DC volatge: 19.999mV 0.001mV/ 199.99mV 0.01mV

AC voltage:1.9999V 0.0001V/ 19.999V 0.001V/ 199.99V 0.01V/ 750.0V 0.1V±(0.3%+3)

Attention: Turnoff music playingwhen use mVrange, otherwisethe accuracy willbe affected.

AC voltage:19.999mV 0.001mV/ 199.99mV 0.01mV

DC current:1.9999A 0.0001A/ 19.999A 0.001A±(0.5%+30)

DC current:19.999mA 0.001mA/ 199.99mA 0.01mA ±(0.5%+10)

AC current:1.9999A 0.0001A/ 19.999A 0.001A ±(0.8%+30)

AC current:19.999mA 0.001mA/ 199.99mA 0.01mA ±(0.8%+10)

Resistance:

199.99Ω 0.01Ω ±(0.5%+3);

1.9999kΩ 0.0001kΩ/ 19.999kΩ 0.001kΩ/ 199.99kΩ 0.01kΩ ±(0.2%+3) ;

1.9999MΩ 0.0001MΩ/ 19.999MΩ 0.001MΩ ±(1.0%+3);

199.99MΩ 0.01MΩ ±(5.0%+5).

Capacitance:

9.999nF 0.001nF ±(5.0%+20);

99.99nF 0.01nF/ 999.9nF 0.1nF/ 9.999μF 0.001μF/ 99.99μF 0.01μF/

999.9μF 0.1μF±(2.0%+5);

9.999mF 0.001mF ±(5.0%+5).

Frequency:

99.99Hz 0.01Hz/ 999.9Hz 0.1Hz/ 9.999kHz 0.001kHz/ 99.99kHz 0.01kHz/ 999.9kHz 0.1kHz/ 6.000MHz 0.001MHz ±(0.1%+2)

Update rate :3 times/ second

True RMS :Yes

Data hold :Yes

Backlight :Yes

Low battery Indicated :Yes

Auto power off :Yes

Diode :Yes

Continuity:Yes

Dimension :200mm/7.8in x 135mm/5.27in x 105mm/4.1in

Weight: 895g（without batter）

Wireless speaker technology parameters:

Wireless version:V5.0

Transfer distance:≤10m

Rated power:2 x 4W RMS

Frequency response range:100Hz-18KHz

Distortion:≤1%

Signal to noise ratio:≥76dB

Package Included:

1*ZT-5566 multimeter(Without battery）

1*Test lead

1*English manual

1* box

Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.Attention: Battery not included because the customs inspection!!!

ZOYI IINSTRUMENTATION

ZOYI digital oscilloscope ZT-701 handheld small portable multimeter 2-in-1 intelligent multi-function

ZOYI ZT-703 Handheld digital oscilloscope multimeter three-in-one two-channel oscillometer signal generator electrician

ZOYI ZT-R01 two-in-one infrared thermal imaging multimeter Industrial electric floor heating circuit board maintenance

ZOYI ZT-5566 Profesional Digital Bench Multimeter 19999 Counts Transistor Tester Auto Range Voltmeter Multifunction Calibrator

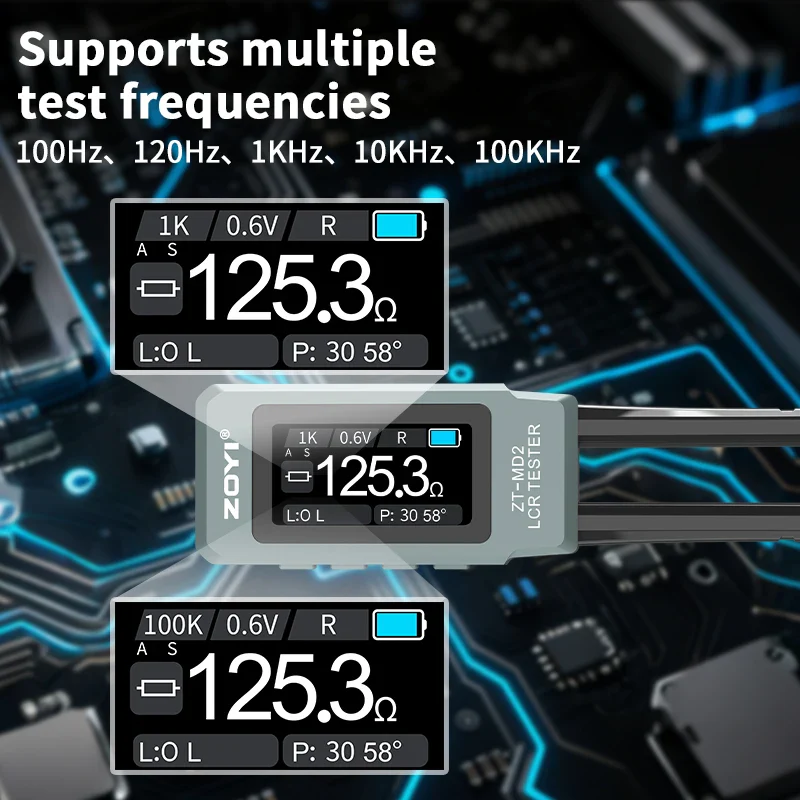

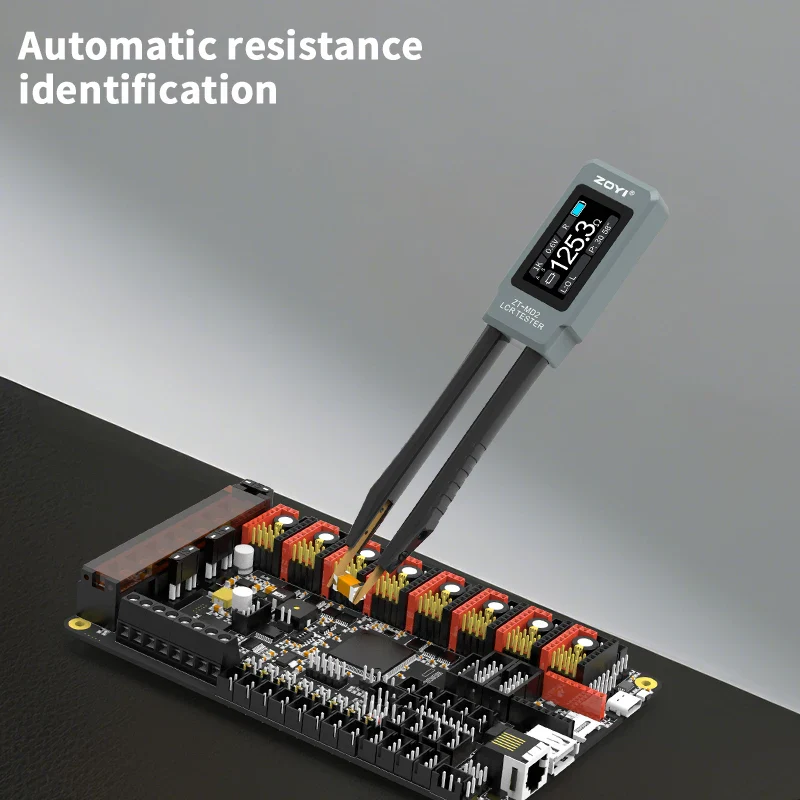

ZOYI ZT-MD2 Intelligent Tweezers Lcr Digital Bridge Tester One Click Measurement Of Resistance Capacitance, And Inductance
