FNIRSI IPS3608 is an AC-DC intelligent digital control power supply that uses digital control technology to eﬃciently convert AC power into DC power. It is much more intelligent than traditional power supplies. It has the characteristics of convenient parameter adjustment, high-precision output, strong dynamic response, convenient digital control interface, and multiple electrical protections. It is suitable for various scenarios such as personal measurement power supply, industrial manufacturing, experimental equipment power supply, and medical power supply. It meets the diverse and high-precision power demand and provides stable DC power for electronic equipment, which is a key force in the modern science and technology industry.

1.Model：IPS3608

2.Input Voltage：100-240VAC(50/60HZ)

3. USB-C Port：Support PD3.0 Fast charging protocol

4. USB-A Port：Supports HUAWEI FCPHUAWEI SCP、AFC、QC2.0、QC3.0 Fast charging protocol

5. Output Voltage：DC 0~36V

6. Output Current：0~8A

7. Output Power：0~285W

8. Output Voltage Resolution：0.01V

9. Output Current Resolution：0.001A

10. Output Voltage Accuracy：±(0.3%+3 bits)

11. Output Current Accuracy：±(0.15%+5 bits)

12. Operating Environment：0℃~40℃, 0%~75%RH

13. Load Regulation Rate：±(0.2%+2 bits)

14. Screen：2.8 Inch color screen, support adjustable backlight brightness

15. Weight：about 1539g

16. Dimensions：138×214×115mm

17. Overvoltage Protection：support

18. Overcurrent Protection：support

19. Undervoltage Protection：support

20. Overpower Protection：support

21. Overtemperature Protection：support

22. Input Reverse Protection：support

23. Output Reverse Protection：support

24. Short Circuit Protection：support

25. Firmware upgrade: support

26. Language: Chinese/English

Packing List:

IPS3608 EU or US Version

1. IPS3608 host*1

2. Alligator clip wire (Black & Red)*2

3. EU or US power cable*1

4. USB data cable*1

5. User manual*1

6. Packing box*1

Power & Performance

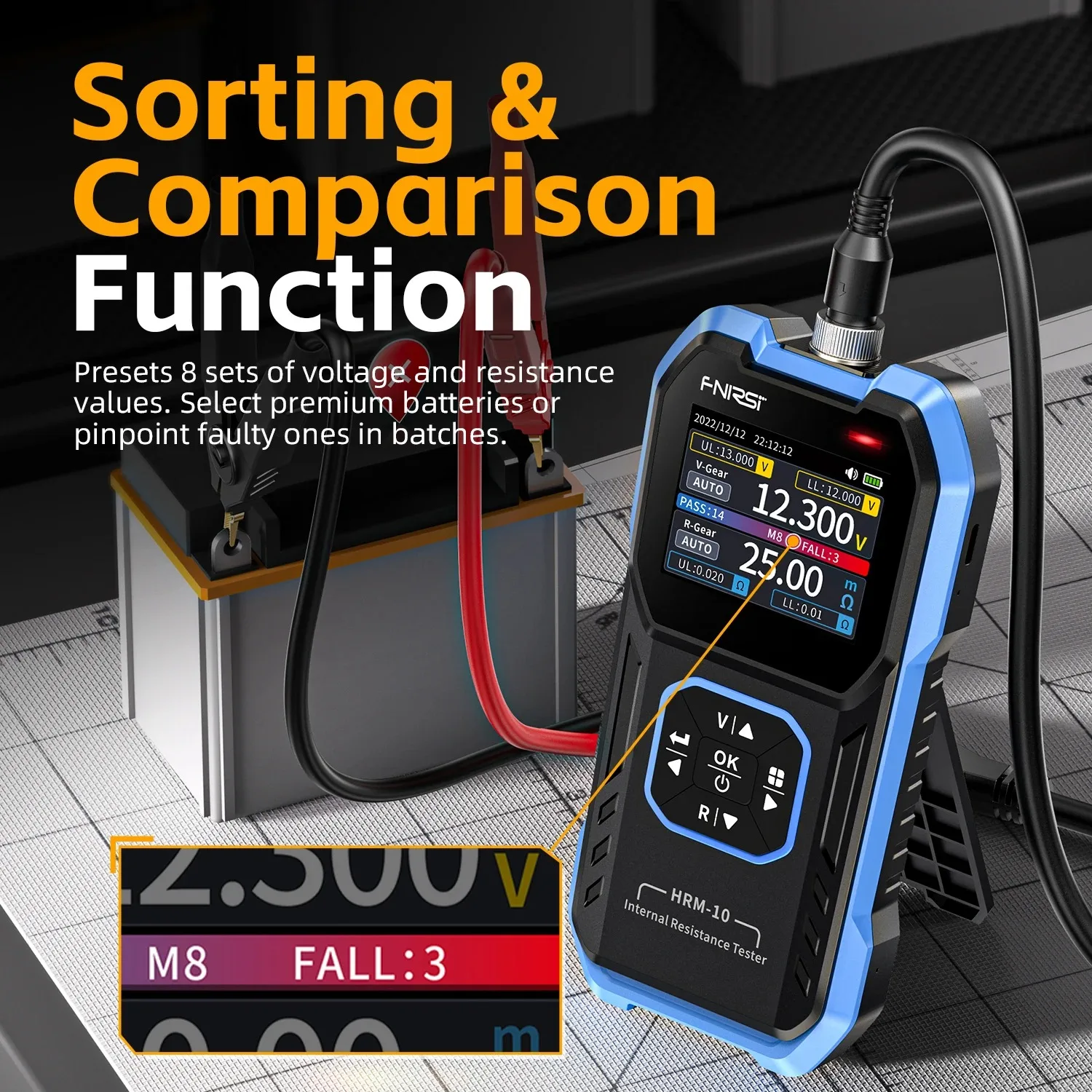

FNIRSI HRM-10 Battery Voltage Tester Tool

FNIRSI IPS3608 Adjustable DC Power Supply 36V 8A 285W Lab Bench Power Supply Voltage and Current Regulator USB Type-C Interface

FNIRSI DPS-150 Laboratory DC Power Supply, CNC Adjustable 30V 5A Digital Display Micro Stabilized Switch Power Supply, Portable

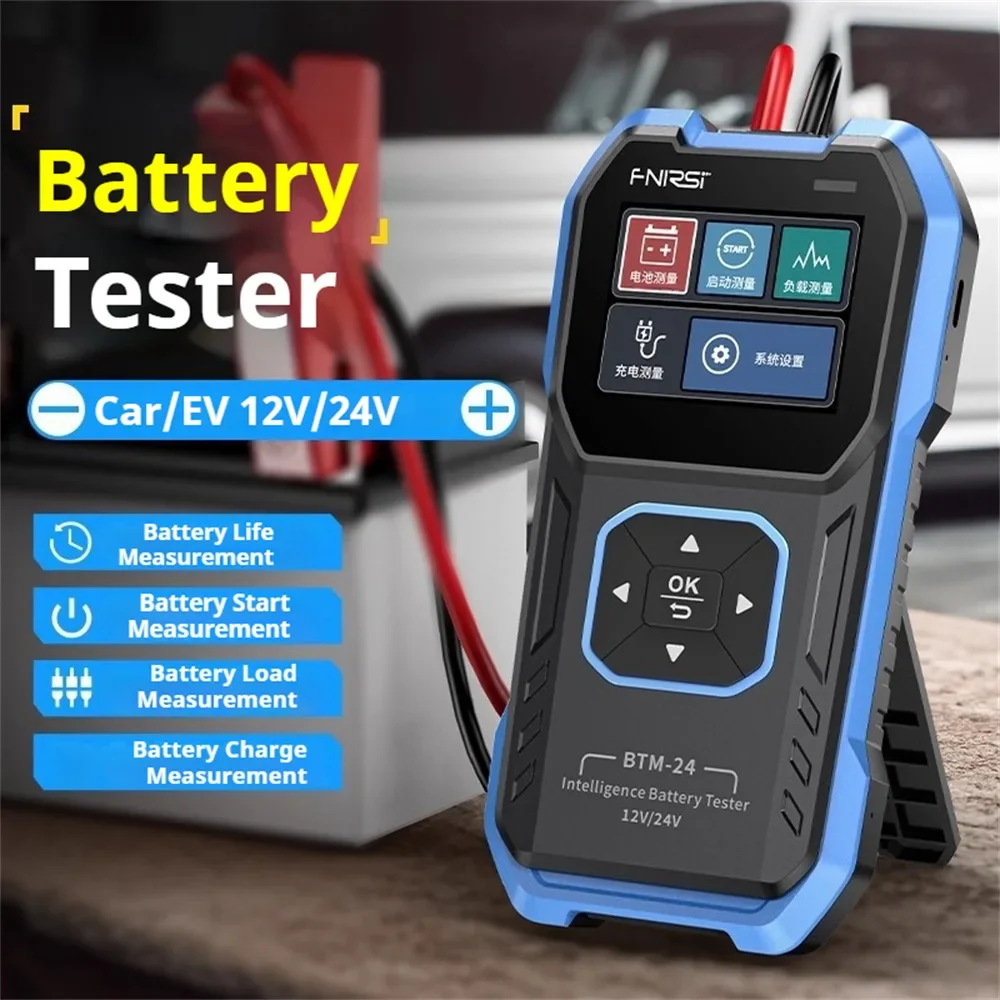

FNIRSI BTM-24 Automotive Car Battery Tester 12V/24V Voltage Capacity Tester with Overvoltage Protection 2.4-inch Color Screen
